Chapter 2. Eclipse Terminals

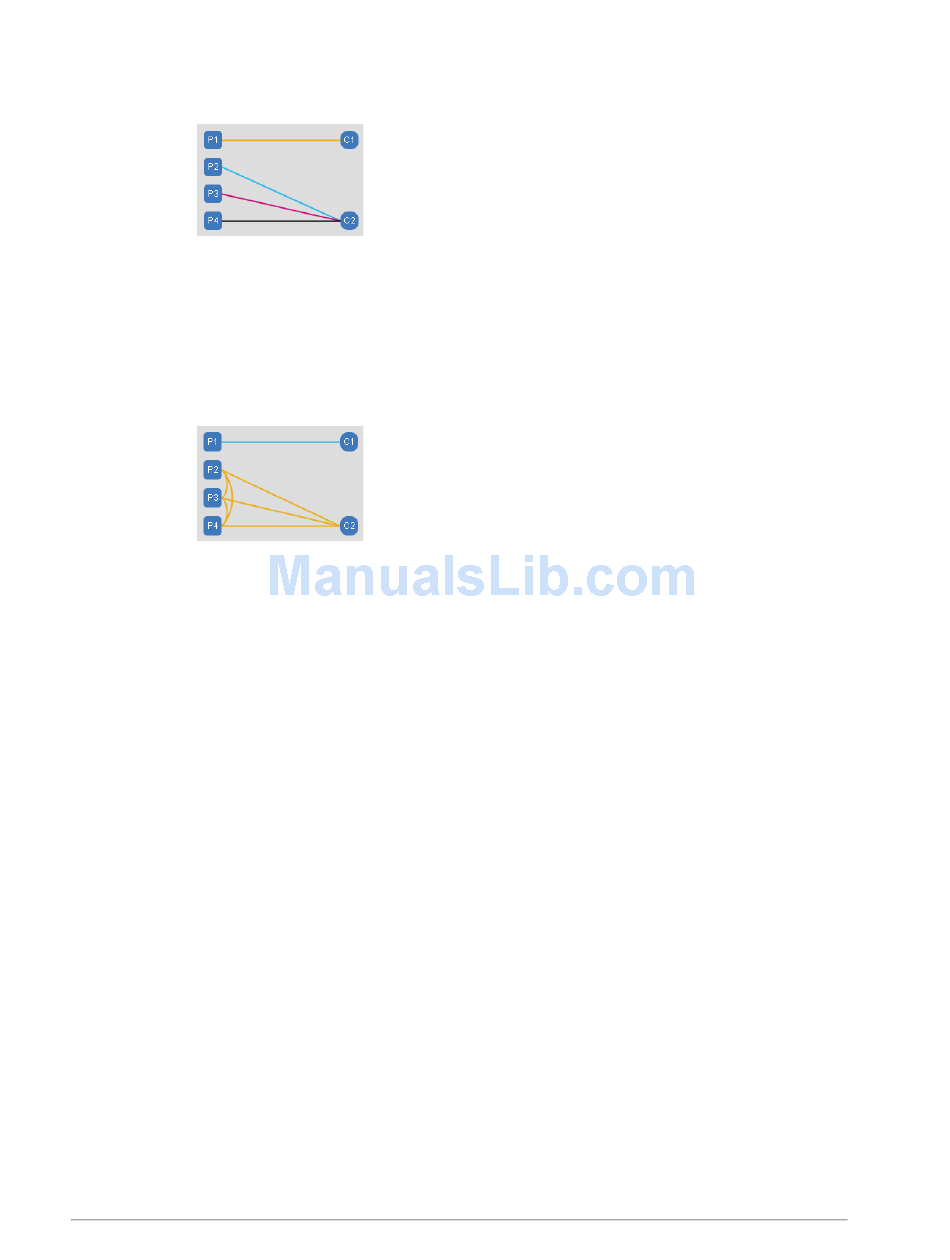

Figure 2-8.
Mixed Mode
Mixed or hybrid mode provides a two-LAN connection solution. The first provides a
dedicated port 1 to channel 1 connection. The second provides a transparent
(broadcast) connection, tying ports 2, 3 and 4 to channel 2. Packets received on any of
these ports will be allowed to broadcast to the other three ports, but not to port 1 or
channel 1.
Figure 2-9.
Transport Channel Configuration
Selection is provided for channel capacity on a per-channel basis:
Channel capacity is selected in multiples of 2 Mbps or 1.5 Mbps.
• For an ETSI selection each channel supports a maximum 98 Mbps. Where both
channels are used the combined maximum extends to 196 Mbps.
• For an ANSI selection one channel (either) can be configured to support a maximum
100 Mbps. Both channels can be configured to support a combined total of 196 Mbps.
• Both channels can be sent over the same radio path. Each can operate as separate fast
Ethernet VLANs, or aggregated (combined) using an external L2 switch.
Basic Port Settings
Customer selection/confirmation is provided for the following port parameters:
Enabled
A port must be enabled to allow traffic flow.
Name
A port name or other relevant port data can be entered.
Speed-Duplex
Provides selection per-port of auto or manual settings for half or full duplex operation
on speeds of 10 Mbps or 100 Mbps. In auto a connection is set based on the traffic type
detected.
Interface Type
Provides selection per port of auto or manual settings for the interface type; Mdi or
MdiX (straight or cross-over respectively).
Vol. II-2-18
VLAN Mode Port and Channel Assignment
Mixed Mode Port and Channel Assignment
