Chapter 1. System Overview
INU
The INU requires one NCC and one FAN, and has provision for up to four option
plug-ins. It supports a maximum of three ODUs for three non-protected links, or one
protected/diversity link and one non-protected link. Each ODU is supported by a RAC
via a single coax cable.

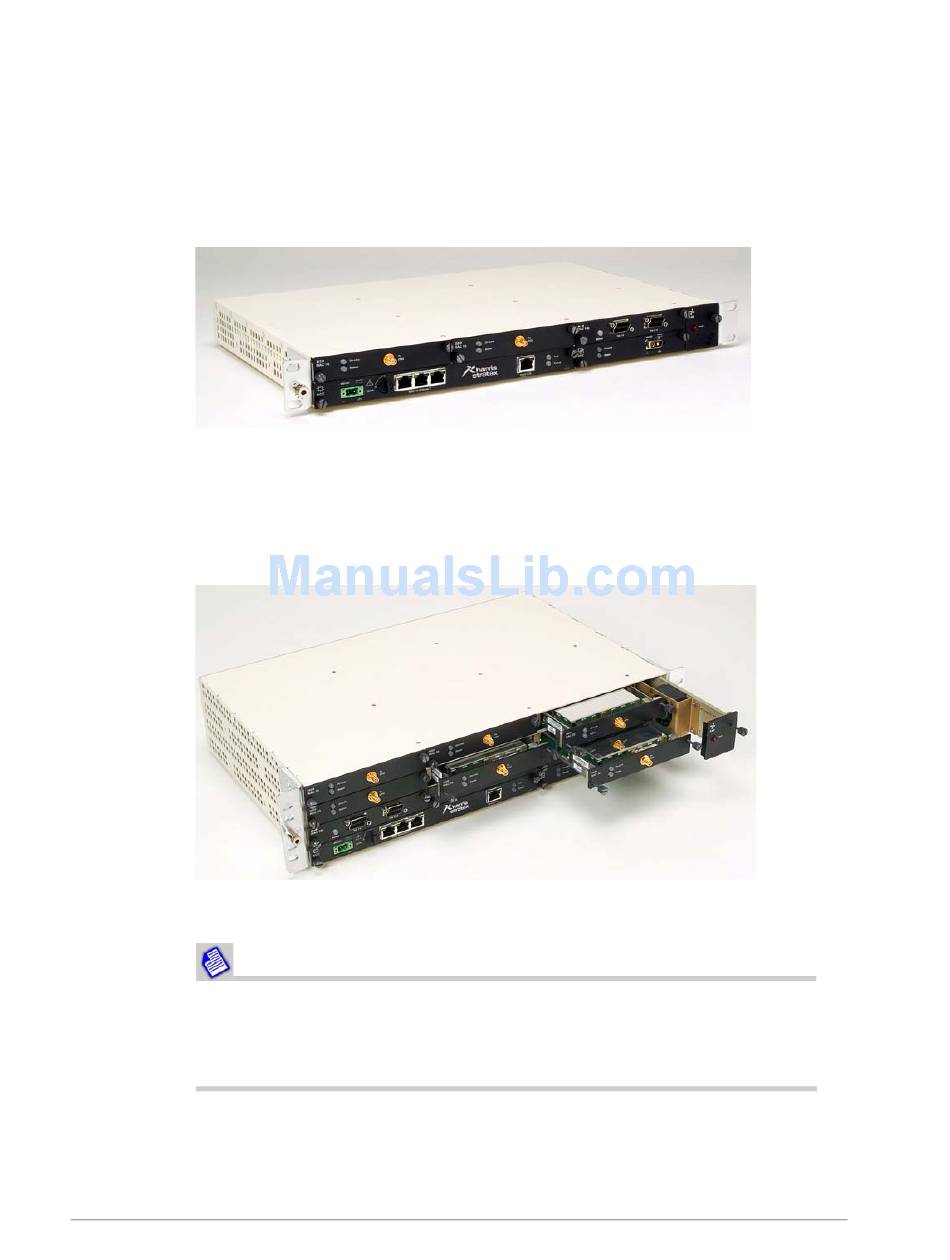

Figure 1-9.
INUe
The INUe requires one NCC and one 2RU FAN or two 1RU FANs. The INUe has
provision for up to ten option cards and supports a maximum of six ODUs for six
non-protected links, or up to three protected/diversity links.
Figure 1-10.
The current production IDCe (INUe chassis) accepts a 2RU FAN or two
1RU FANs.
One 2RU FAN is now supplied as standard with the IDCe.
