Chapter 1. System Overview

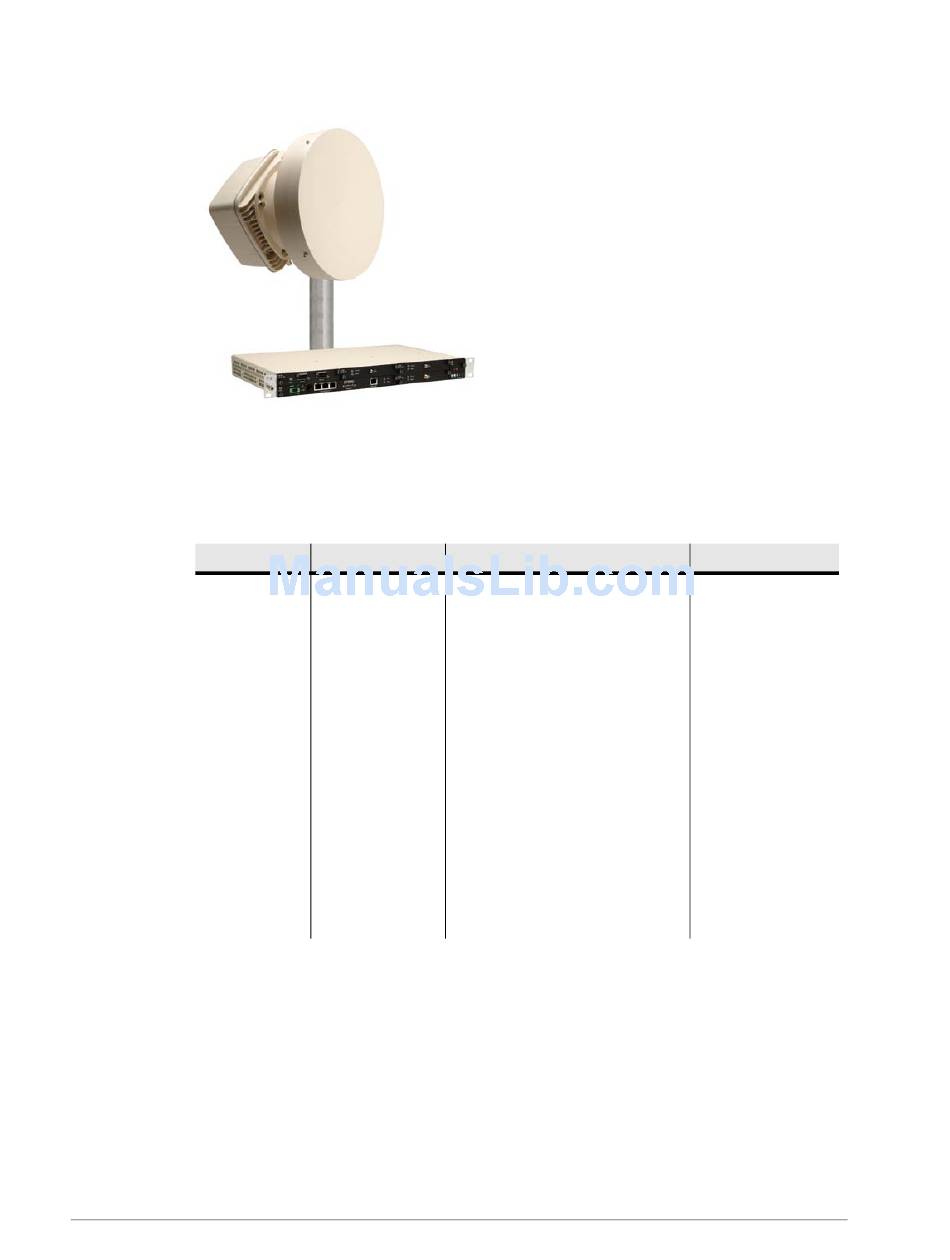

Figure 1-1.

300 Series Indoor Units

The IDU 300 is available in variants to transport PDH, SDH or Ethernet on ETSI and
ANSI bands.
Table 1-1.
Application
E1/DS1
STM1/OC3
Ethernet
ODU options support operation on bands 5 to 38 GHz:
IDU 300 Series Overview
IDU 300 20x and IDU 300 8x
IDU 300 20x supports capacities to 20xE1 or 16xDS1 with modulation options from
QPSK to 128 QAM, depending on the selected capacity/bandwidth.
IDU 300 8x supports capacities of 4x, 5x, 8xE1, or 4x, 8xDS1 with modulation options
from QPSK to 32 QAM, depending on the selected capacity/bandwidth.
Vol. II-1-2
Eclipse Terminal
IDU 300 Variants
Variant
IDU 300 8x
IDU 300 20x
IDU 300 20xV2
IDUsp 4x
IDUsp 16x
IDU 155o
IDU ES
IDU GE 20x
Capacities
4x, 5x, 8xE1, or
4x, 8xDS1
4x, 5x, 8x, 10x, 16x, 20xE1, or
4x, 8x, 16xDS1
5x, 10x, 20x, 32x, 40xE1, or
4x, 8x, 16x, 28x, 32xDS1
4xE1
4x, 8x, 16xE1
STM1/OC3
10/100Base-T to 200 Mbps with
up to 8xE1/DS1 tribs
10/100/1000Base-T plus
1000Base-LX or 1000Base-T
SFP option. Throughputs to 360
Mbps and up to 20xE1tribs.
Modulation
QPSK to 32QAM
QPSK to 128QAM
QPSK to 128QAM
QPSK
QPSK
16/64/128QAM
QPSK to 256QAM
QPSK to 256QAM
