Hydraulic Components
The retractable hardtop and the rear module are driven hydraulically. The hydraulic system consists of 8 hydraulic cylinders that are
supplied with pressure by the hydraulic system via the hydraulic lines. The cylinders are always activated in pairs. The hydraulic assembly
is installed in a recess in the luggage compartment floor. Four cylinders are required for the movement of the hardtop: the two roof shell
cylinders and two rear pillar cylinders. The rear module is opened and closed by two rear module cylinders. Two closure cylinders are
responsible for locking/unlocking the rear roof panels and the rear module.

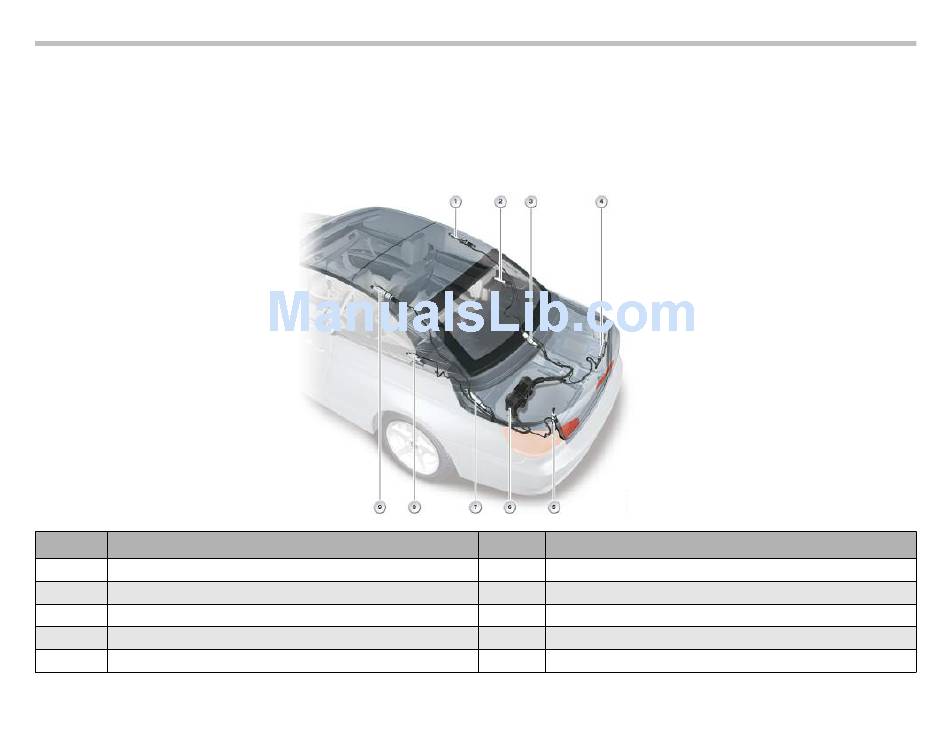

Index
1
2
3
4
5
Explanation
Right roof panel (shell) cylinder
Right closure cylinder
Right main pillar cylinder
Right rear module cylinder
Left rear module cylinder
84
E93 Complete Vehicle Workbook
Index
6
7
8
9
Explanation
Hydraulic assembly (pump, motor, valves and relays)
Left main pillar cylinder
Left closure cylinder
Left roof panel (shell) cylinder
