E93 Complete Vehicle Workbook

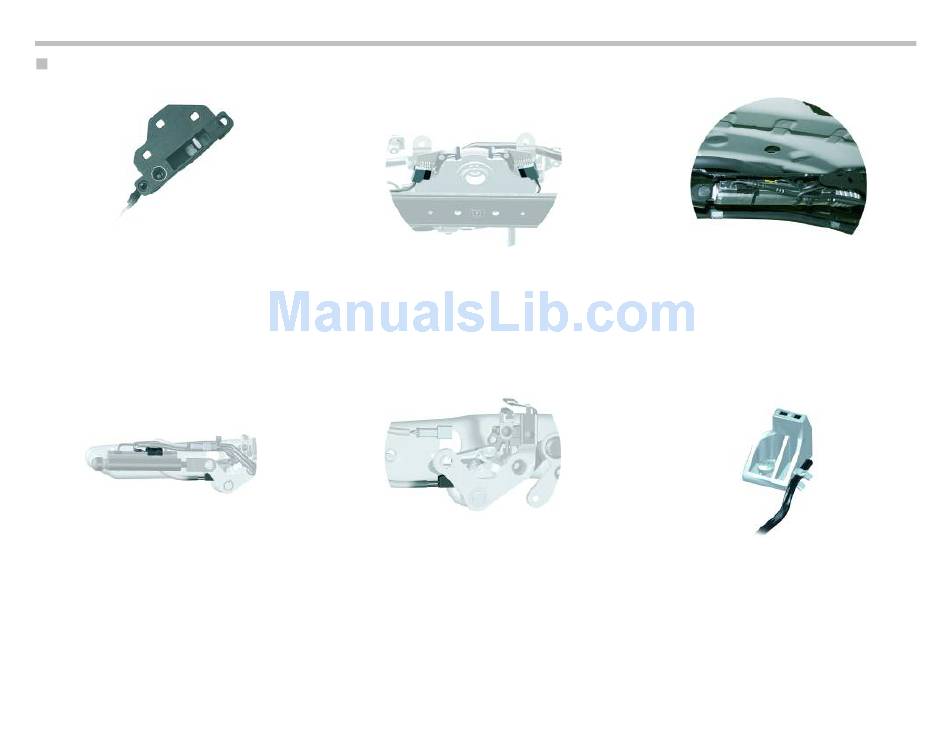

Microswitch and Hall Sensor Locations
"Roof shells partially open"
"Roof shells partially closed"
"Catch hooks locked" microswitch
"Cowl panel reached" microswitch
"Catch hooks unlocked" microswitch
Hall Sensor
This microswitch is built into the left cowl
These two hall sensors are located on the right
Both of these microswitches are located below
panel on the vehicle.
the electric motor for hardtop locking
hand roof shell cylinder
"Right closure open" Hall Sensor
"Right hand closure closed" microswitch
"Left hand closure closed" microswitch
"Rear module closed" Hall Sensor
The right hand closure cylinder area contains
The microswitch for "left hand closure closed" is
The hall sensor for "rear module closed" is
both a Hall sensor and a microswitch
on the left hand closure cylinder area
located on the right hand side of the partition for
the RPS system
