Drive for Hardtop Locking

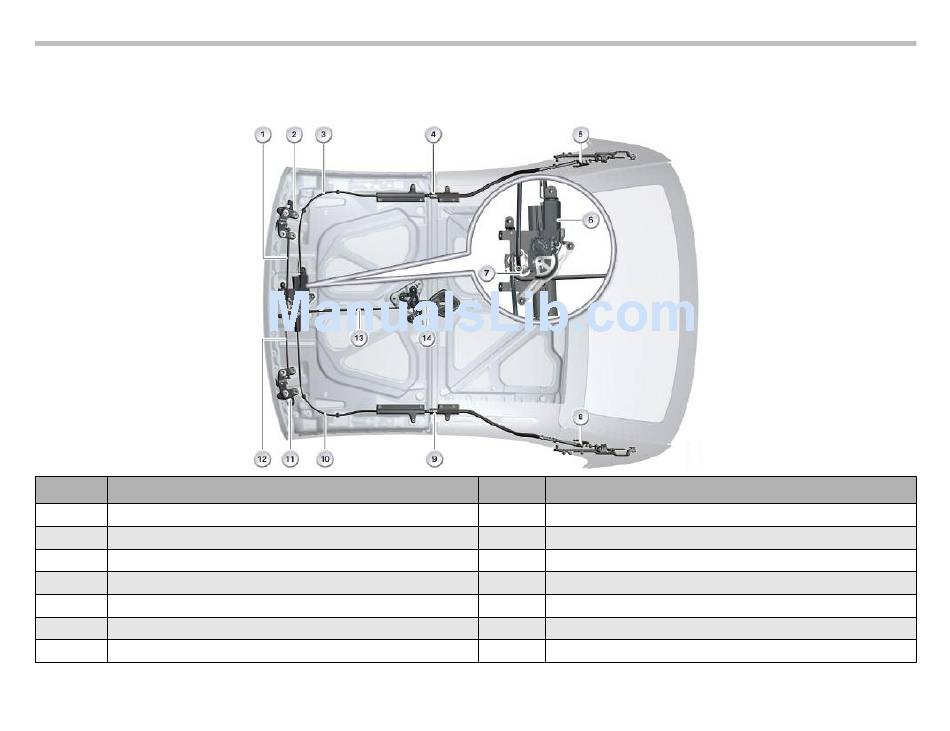

The roof panels of the hardtop are interlocked. In addition, the front roof panel is locked at the cowl panel via two catch hooks.
The electro-motor installed in the center of the front roof panel serves as the drive. The electric motor is activated directly by the CTM.
Index
1
Connecting rod for right catch hook
2
3
4
Locking bolt for front center roof panel to center right roof panel
5
Locking bolt for center roof panel to rear right roof panel
6
7
E93 Complete Vehicle Workbook
Explanation
Right catch hook
Right drive cable
Electric motor
Control disc
68
Index
8
Locking bolt for center roof panel to rear left roof panel
9
Locking bolt for front center roof panel to center left roof panel
10
11
12
13
14
Explanation
Left drive cable
Left catch hook
Connecting rod for left catch hook
Connecting rod for locking hook
Locking hook
