Rear module

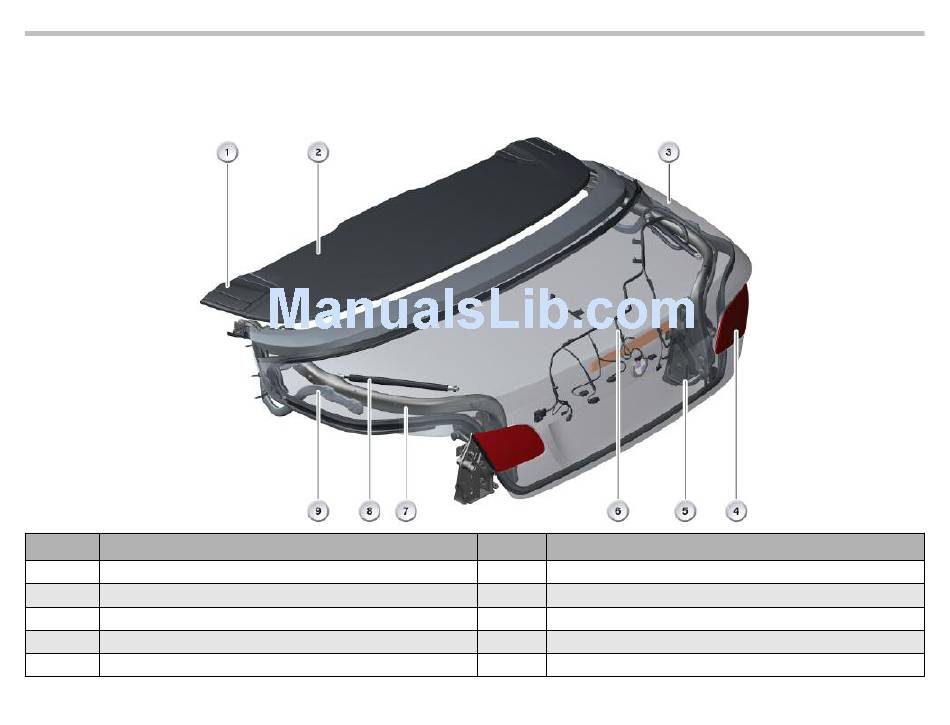

The trunk lid and hardtop lid are integrated into the rear module. The rear module is fastened to the body using a supporting bar structure
with main mount. The rear module weighs about 105 lbs. The trunk lid is equipped with Soft Close Automatic.
Index
1
Opening hinges for linkage (main pillar)
2
3
4
5
Explanation
Hardtop lid
Trunk lid
Tail lights
Rear module main mount
Index
6
7
8
9
E93 Complete Vehicle Workbook
65
Explanation
Wiring harness
Rear module linkage
Trunk lid damper
Trunk lid linkage
