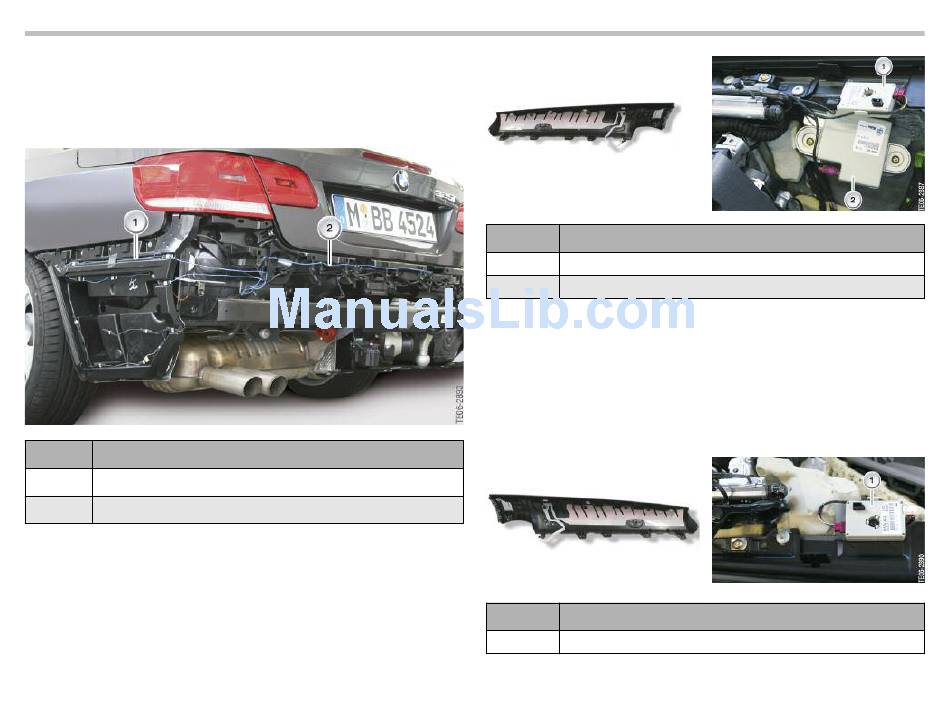

The FM2 and FM4 antennas are located behind the rear bumper
panel. The antenna amplifiers for the FM2 and FM4 antennas are
located in the antenna diversity module on the rear left in the
luggage compartment.
Index
1
2
AM and FM 1 Antenna, left
When the hardtop is lowered, the rear window is folded in the
luggage compartment so that reception via the antennas is no
longer possible. For this reason, a further AM and FM1 antenna is
located in the left side trim panel at the rear.
Explanation
FM4 Antenna
FM2 Antenna
E93 Complete Vehicle Workbook
Index
1
2
FM3 Antenna, right
The FM3 antenna is located in the right side trim panel at the rear.
Each antenna has its own antenna amplifier. A total of four antenna
amplifiers are installed. The received and amplified signal (RF
signal) is then sent to the FM antenna diversity module on the rear
left in the luggage compartment.
Index
1
29
Explanation
Antenna amplifier, left
Emergency antenna
Explanation
Antenna amplifier, right
