BMW 3-series convertible Complete Vehicle Workbook page 17

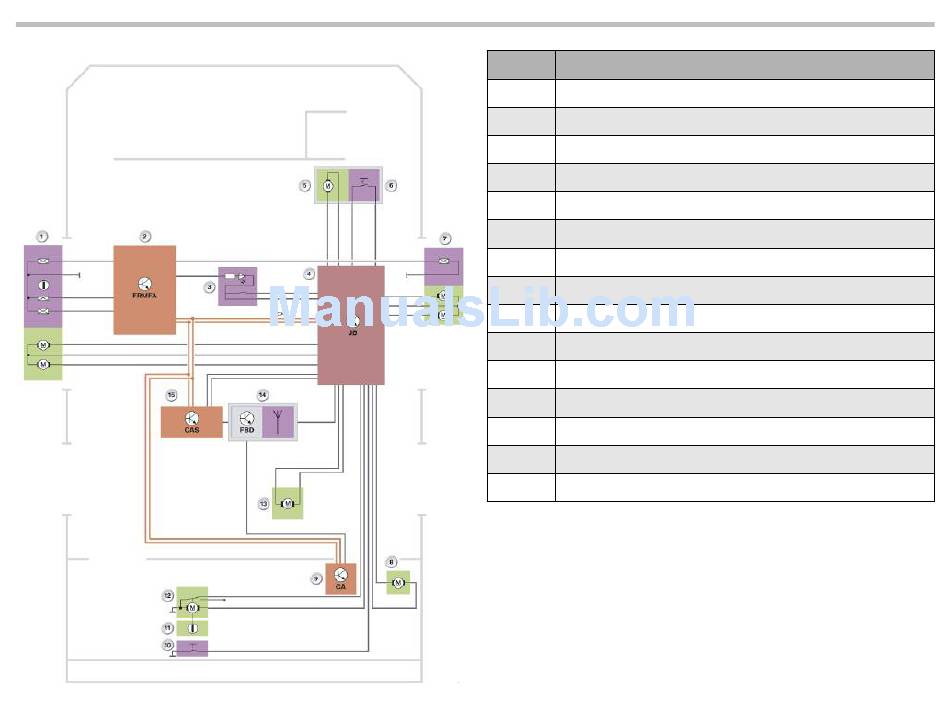

Central Locking Schematic
Index
1
Driver's door with actuator, door contact and door lock with Hall sensors
2
3
4
5
6
7
8
9
10
11
12
13
14
15
E93 Complete Vehicle Workbook
17
Explanation
Footwell module
Central lock button
Junction box
Glove compartment actuator motor
Hotel switch
Passenger's door with actuator and door contact
Actuator for fuel filler flap
Comfort access control unit
Trunk lid button
Trunk lid lock
Trunk lid actuator
Center console actuator
Interior rear view mirror with remote control receiver
Car Access System (CAS)
