BMW 3-series convertible Complete Vehicle Workbook page 13

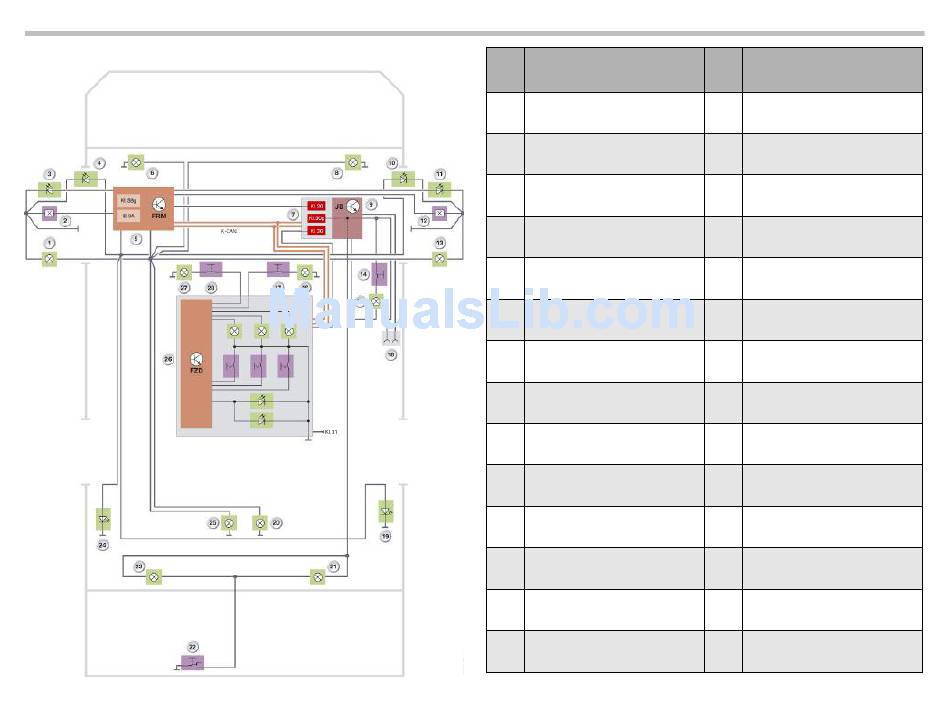

Interior Light Schematic
Index Explanation
1
Exit light, left
2
Door contact, left
3
Courtesy lighting, left
Fiber optic cable for left
4
door linear lighting
5
Footwell module
6
Footwell light, front left
7
Power distribution box, junction box
8
Footwell light, front right
9
Junction box electronics
Fiber optic cable for
10
right door linear lighting
11
Courtesy lighting, right
12
Door contact, right
13
Exit light, right
14
Glove compartment switch
E93 Complete Vehicle Workbook
13
Index Explanation
15
Glove compartment lighting
16
Vanity mirror light right
17
Switch for vanity mirror light, right
18
Charging socket
19
Side panel linear lighting, right
Rear compartment footwell light,
20
right
Luggage compartment light, rear
21
right
22
Interior button for boot lid
Luggage compartment light, rear
23
left
24
Side panel linear lighting, left
25
Rear compartment footwell light, left
Roof functions module with
26
front interior light
27
Vanity mirror light, left
28
Switch for vanity mirror light
