Panasonic DMP-UB704 Operating Instructions Manual page 14

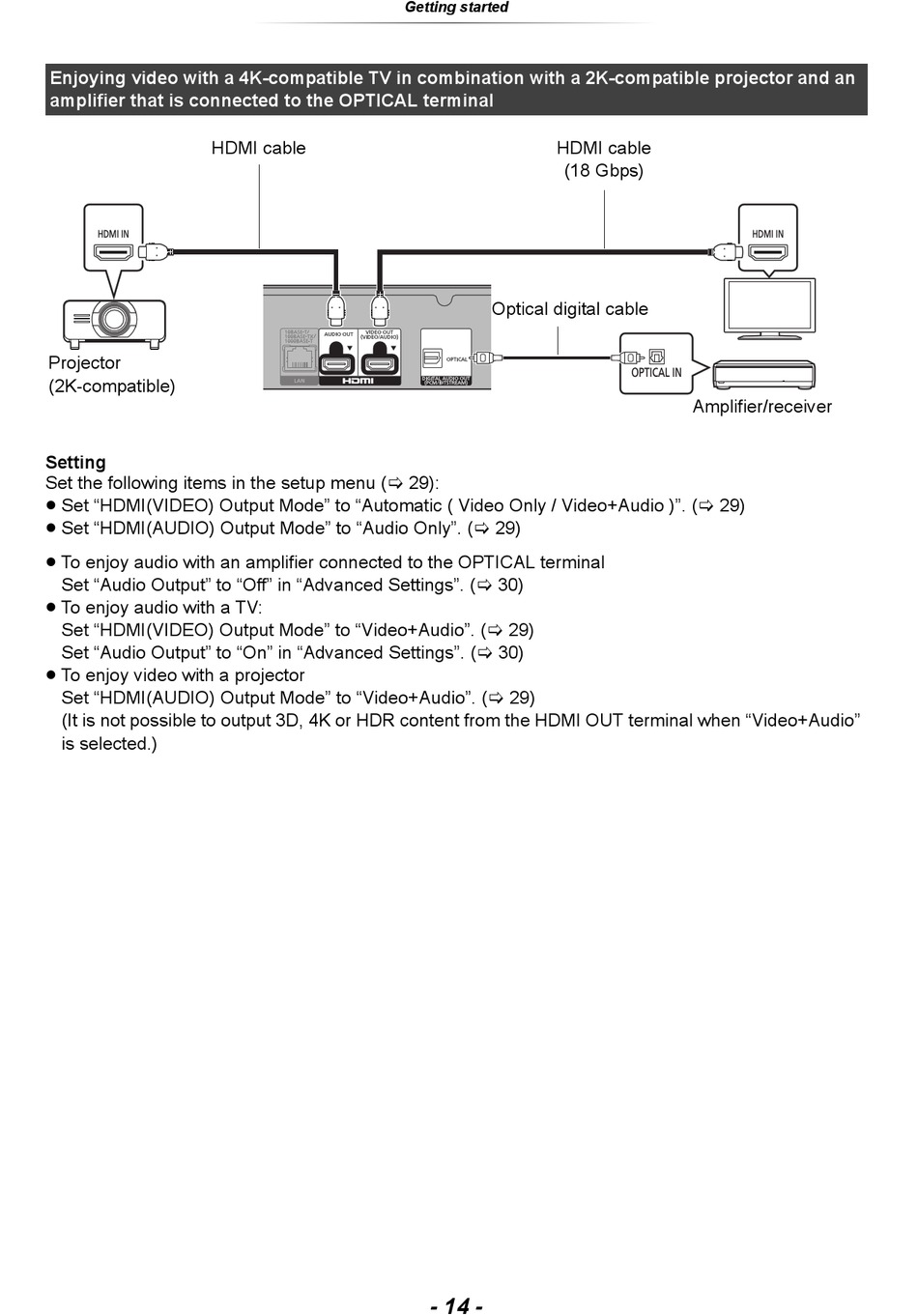

Enjoying video with a 4K-compatible TV in combination with a 2K-compatible projector and an
amplifier that is connected to the OPTICAL terminal
HDMI cable
HDMI IN
Projector
(2K-compatible)
Setting
Set the following items in the setup menu (
≥ Set "HDMI(VIDEO) Output Mode" to "Automatic ( Video Only / Video+Audio )". (
≥ Set "HDMI(AUDIO) Output Mode" to "Audio Only". (
≥ To enjoy audio with an amplifier connected to the OPTICAL terminal
Set "Audio Output" to "Off" in "Advanced Settings". (
≥ To enjoy audio with a TV:
Set "HDMI(VIDEO) Output Mode" to "Video+Audio". (
Set "Audio Output" to "On" in "Advanced Settings". (
≥ To enjoy video with a projector
Set "HDMI(AUDIO) Output Mode" to "Video+Audio". (
(It is not possible to output 3D, 4K or HDR content from the HDMI OUT terminal when "Video+Audio"
is selected.)
Getting started
HDMI cable
(18 Gbps)
Optical digital cable
29):
29)
30)
29)
30)
29)
- 14 -
HDMI IN
OPTICAL IN
Amplifier/receiver
29)
