Maintenance

Rear fog light bulb replacement

(if equipped)
If the light does not operate, we recom-
mend that the system be checked by an
authorized HYUNDAI dealer.
7 74
■ 5 Door
■ 4 Door

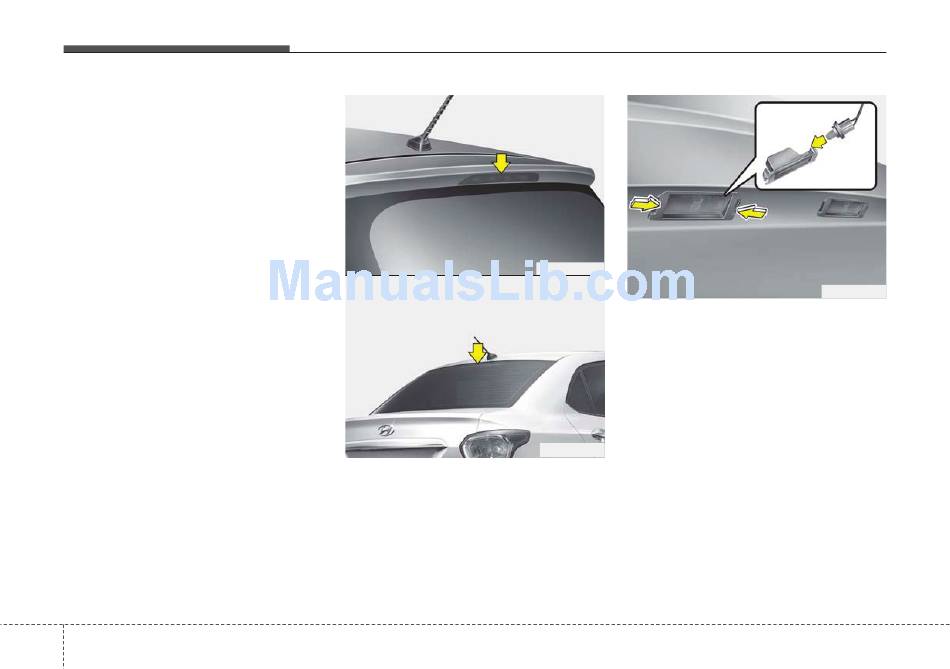

High mounted stop light replace-
ment
If the light does not operate, we recom-
mend that the system be checked by an
authorized HYUNDAI dealer.
OBA073021
License plate light bulb replace-
ment
1. Using a flat-blade screwdriver, remove
the light assembly from the body of the
vehicle by prying the housing and
pulling the assembly out.
2. Separate the socket and the lens part
by turning the socket counterclockwise
until the tabs on the socket align with
OBA074021
the slots on the lens part.
3. Remove the bulb by pulling it straight
out.
4. Insert a new bulb in the socket.
5. Reassemble the socket and the hous-
ing part.
6. Reinstall the light assembly to the body
of the vehicle.
OBA073022
