Maintenance
If the stroke is more or less than speci-
fied, we recommend that the system be
serviced by an authorized HYUNDAI
dealer.
Stroke : 6~8 clicks at a force of 20kg
(44lbs, 196N).
7 30

AIR CLEANER

Filter replacement

It must be replaced when necessary, and
should not be cleaned and reused.

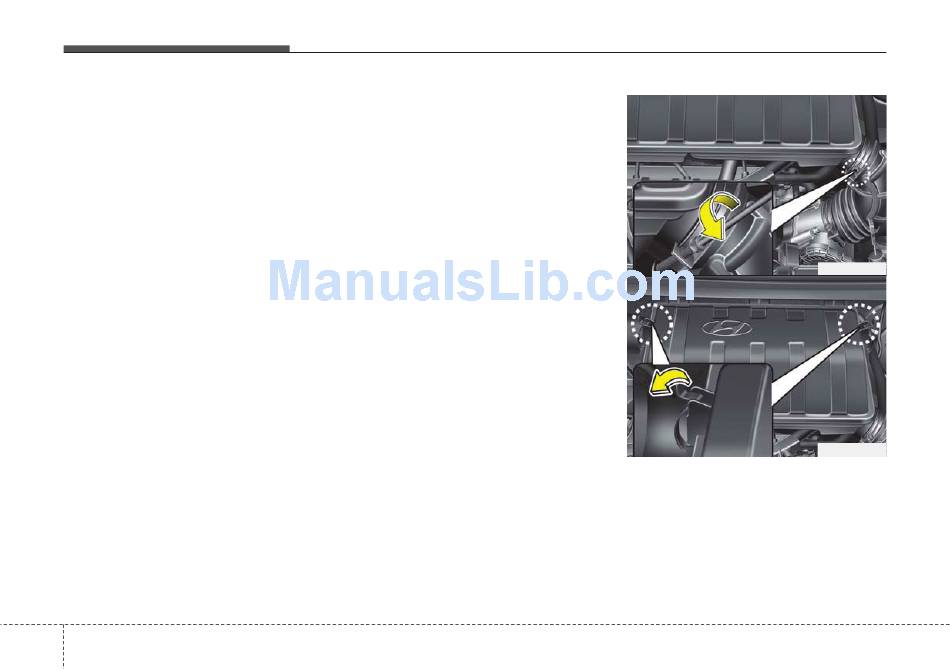

1. Remove the intake hose clamp.
2. Loosen the air cleaner cover attaching
clips and open the cover.
OBA073025
OBA073026
