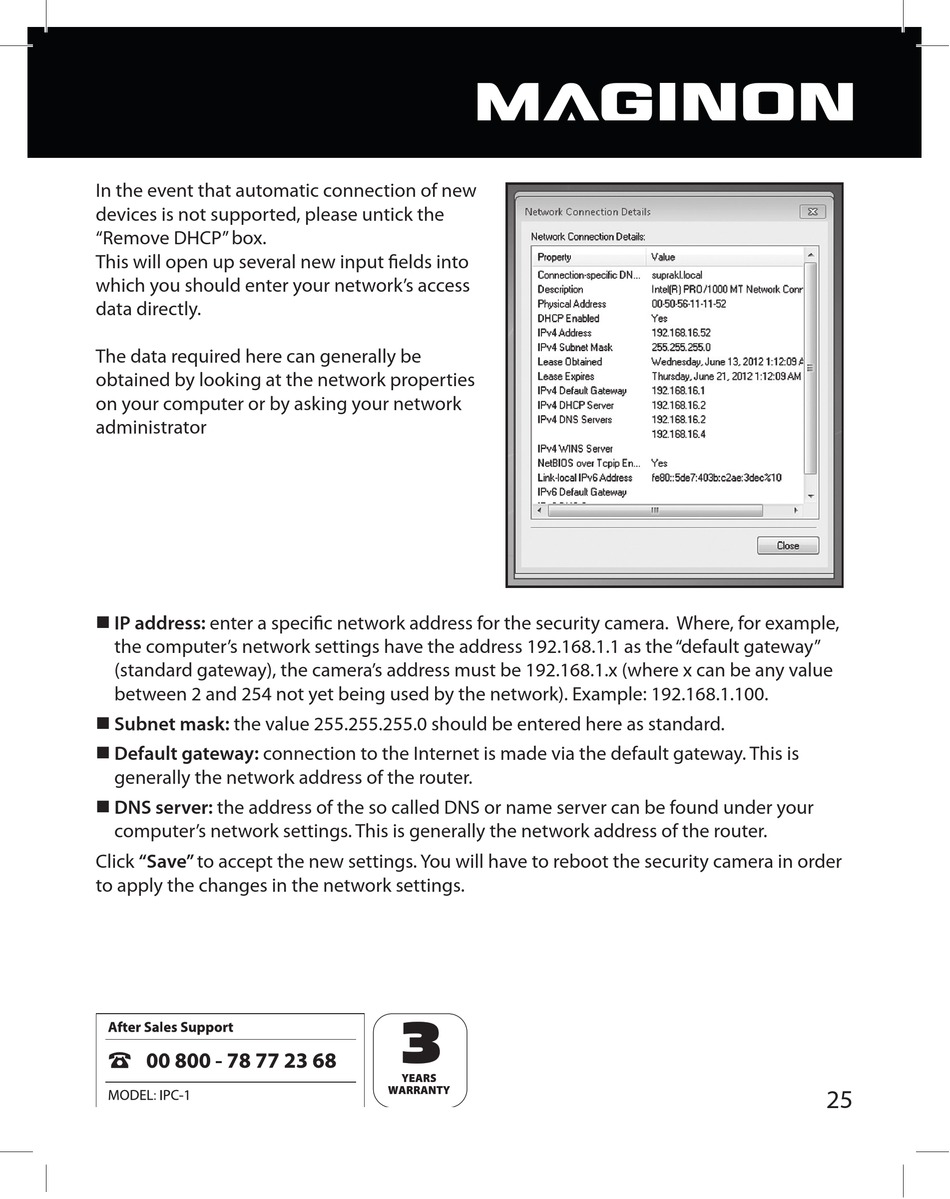

MAGINON ipc-1 Instruction Manual page 27

In the event that automatic connection of new
devices is not supported, please untick the
"Remove DHCP" box.
This will open up several new input fi elds into
which you should enter your network's access
data directly.
The data required here can generally be
obtained by looking at the network properties
on your computer or by asking your network
administrator
 IP address: enter a specifi c network address for the security camera. Where, for example,
the computer's network settings have the address 192.168.1.1 as the "default gateway"
(standard gateway), the camera's address must be 192.168.1.x (where x can be any value
between 2 and 254 not yet being used by the network). Example: 192.168.1.100.
 Subnet mask: the value 255.255.255.0 should be entered here as standard.
 Default gateway: connection to the Internet is made via the default gateway. This is
generally the network address of the router.
 DNS server: the address of the so called DNS or name server can be found under your
computer's network settings. This is generally the network address of the router.
Click "Save" to accept the new settings. You will have to reboot the security camera in order
to apply the changes in the network settings.
