Characteristic Charging Curve - Calira LG 616-DS/IU Operating Instructions Manual

( &
"#" $ %&'
Implementation: According to Association of German Electro technical
Engineers regulations and the provisions of the Instru-
ment Safety Act.
Test labelling:
Use: For charging batteries with a rated voltage of 12 volt and
a capacity of 60 - 160 Ah.
Dimensions / weight
Housing: Aluminium, painted black/blue, ventilated
Length: 220 mm
Width: 210 mm
Height: 90 mm
Weight: 1.3 kg (13 N)

Characteristic charging curve

HL = Main charging phase
NL = Post charging phase
EL = Holding charge

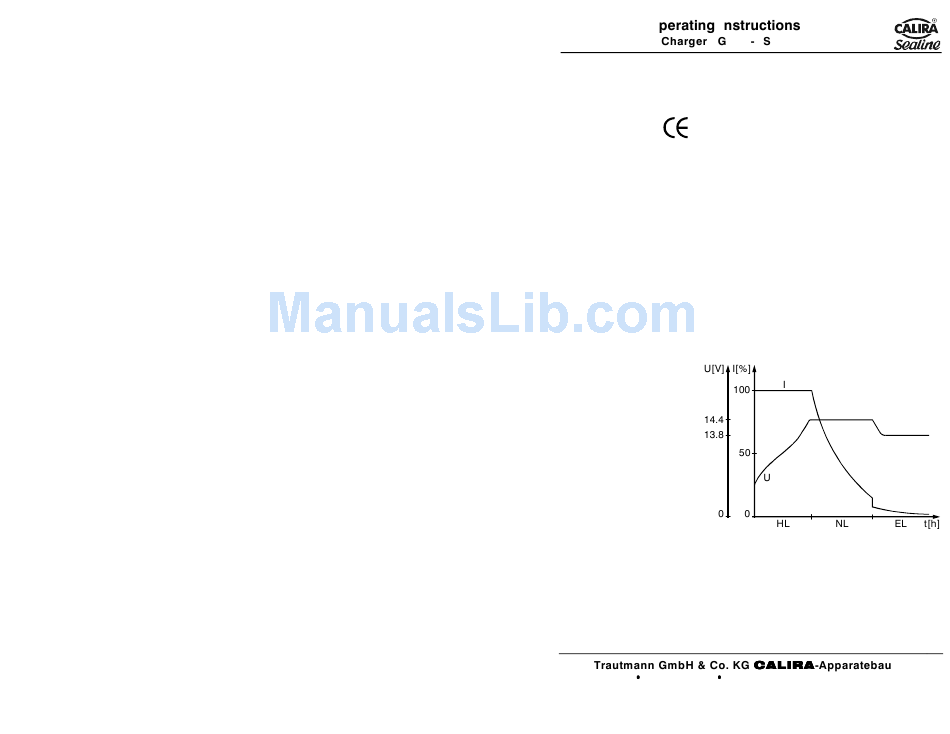

Fig. 2: Characteristic charging curve (schematic diagram)
The right to make technical modifications is reserved.
