8.5 Question: why does the machine feel tingle?
Answer:
the machine might be improperly grounded, make sure central line of the power
source grounded
8.6 Question: why does the job feel not smooth with sharp-angle raised when plotting?
Answer:
1. The protruding length of knife top is too long, please adjust it as required
2、The knife is abraded, replace it.
8.7 Question: why the cutting plotter don't transit file or scarify?
Answer:

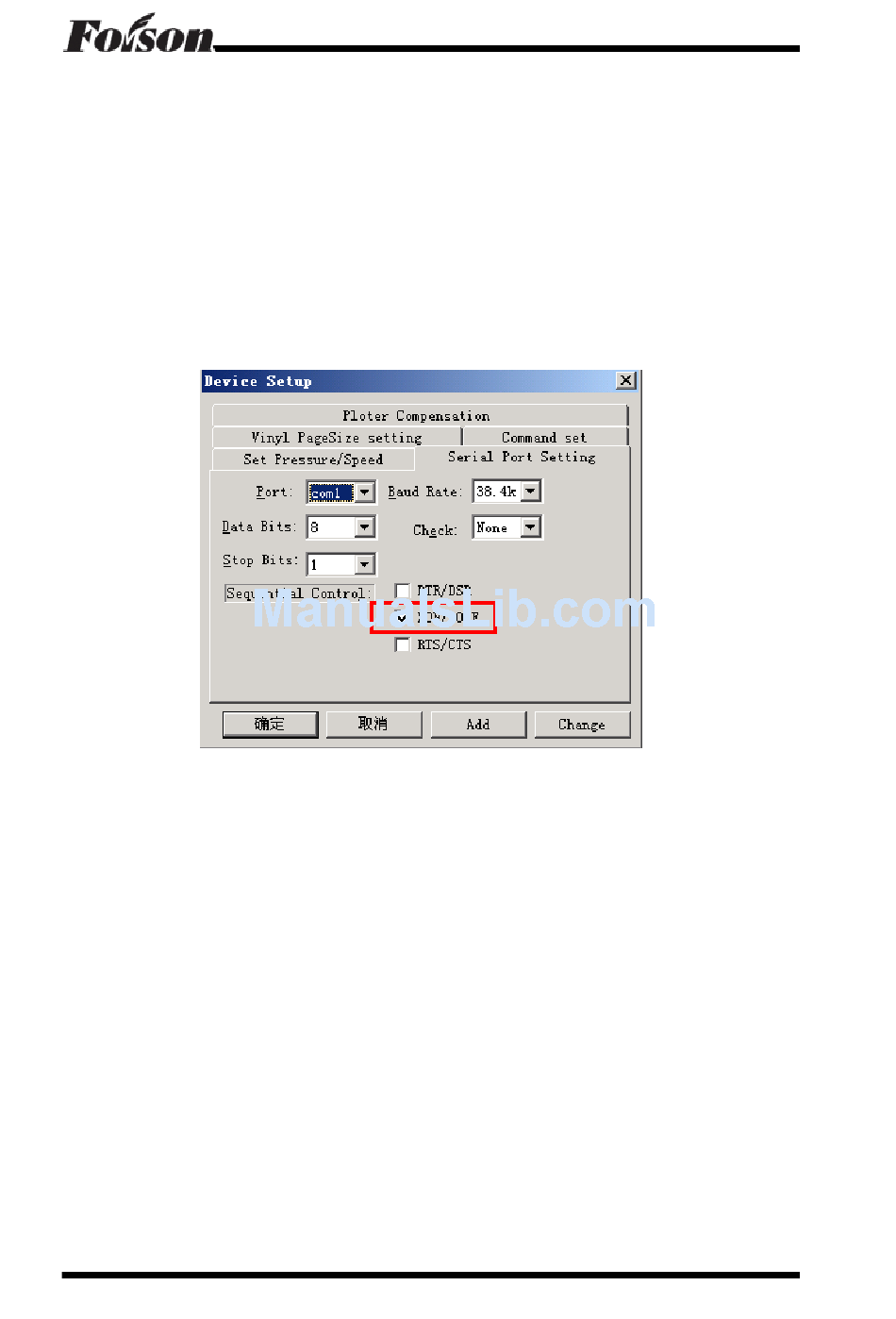

Please set the same as the following picture . Choose XON/XOFF here .
8.8 Question: No LCD display or a black row of blocks are displayed?
Answer:
1. In case of no display, check whether the power work well
2. If black blocks are displayed, check whether voltage is at required level. If troubles
remain after the above operation, please contact maintenance center
8.9 Question: why can not some characters close in strokes when it is plotting?
Answer:
Because the knife of the plotter is eccentric knife with a eccentric value, to resolve it,
set "closing compensation" in the software. For example: in ArtCut software:
1、Click Plotting Output once, a plotting output picture will pop up
2、Click Set once, a picture of setting plotter will pop up.
3、Click Compensation Setting a dialogue box will pop up
4、Select Closing Compensation, adjust the value to required level, generally the
value is set to be 0.85.
