Chapter Six General Settings and Operation

6.1 Work Status Descriptions

6.1.1 Online/Offline

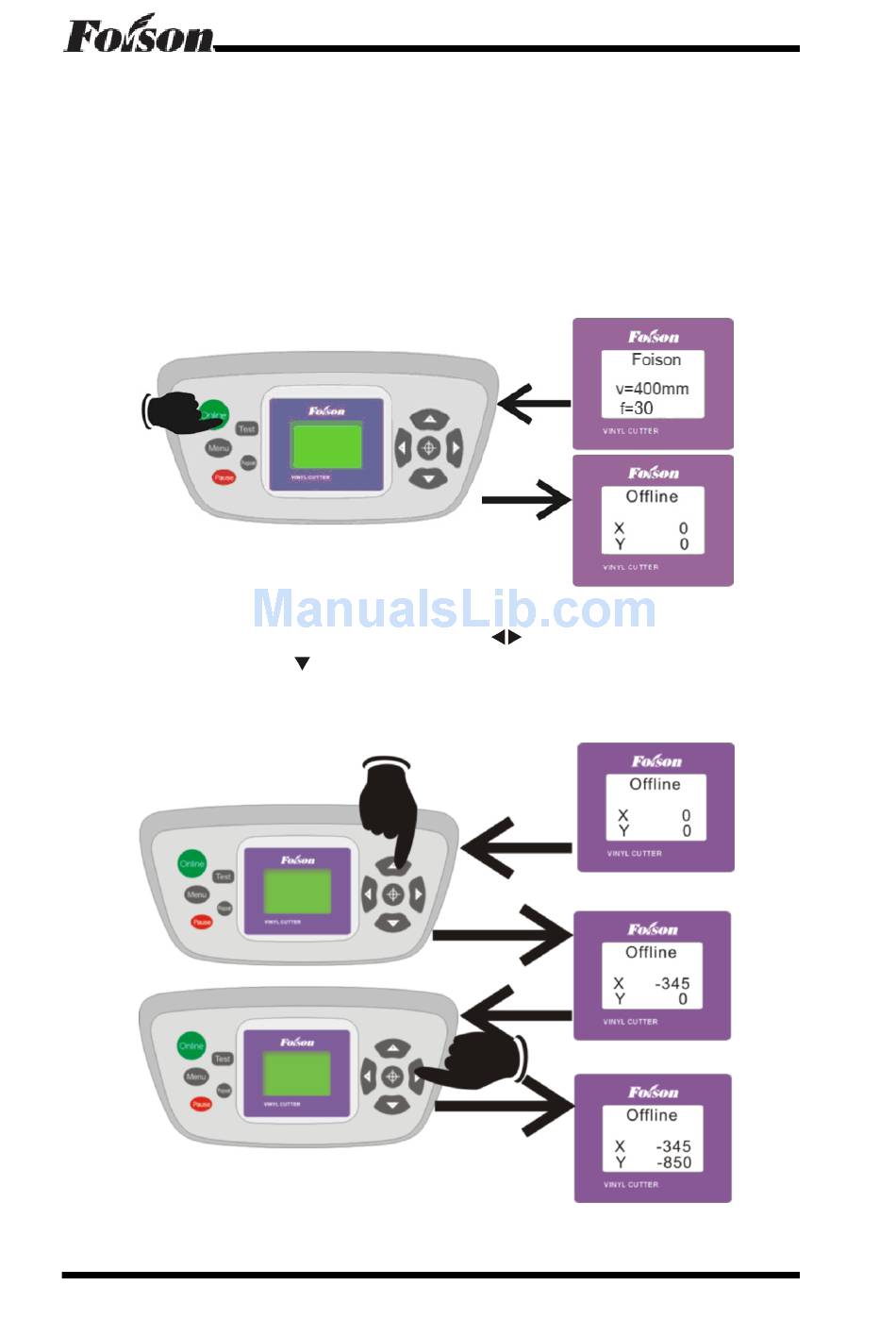

When the cutter is switched on, it will reset and set to online status. Press "Online" to
switch Online/Offline status. When the cutter transmits data to PC, the cutter must be in online
status. But if you need to change the parameters of the cutter or operate manually, the cutter
shall be in Offline status. The LCD shown as followings:

6.1.2 Carriage Movement

When the cutter is Offline status, press "
right. press"▲
LCD will show X, Y step value respectively.
online status
offline status
", the main shaft will move back and for the at the same time the
C SERIES USER'S MANUAL
", the carriage will move left and
