Plot Pen Installation - Foison C12 User Manual

5.3.4 Trial run (adjusting knife press and tool)
Quality of knife immediately relate to cutting precision and life of machine. To better
your work, please use the standard knives we confirm, but not those with poor quality.
5.3.4.1 Press "Online" button to make the machine Offline.
5.3.4.2 While it's offline, press "TEST" twice, the machine will automatically cut a small
square from the media.
5.3.4.3 Take off the square, if you fail, the square need to be further cut, because the press
is low or the protruding length of knife top is too short; If the base paper is
pierced through, it signifies that the protruding length of knife top is too long and
the press is too big. Adjust the protruding length of knife top and knife press
according to result of trial run and the description of tool installation. The most
appropriate protruding length of knife top and knife press is to cut the media
exactly but not pierced through.
5.3.4.4 Press "+"or"-"to adjust knife press.

5.4 Plot Pen Installation

The plot pen presented with the cutter is used for drawing on the media. The operation
method is the same as the above blade holder.
18
.
C SERIES USER'S MANUAL

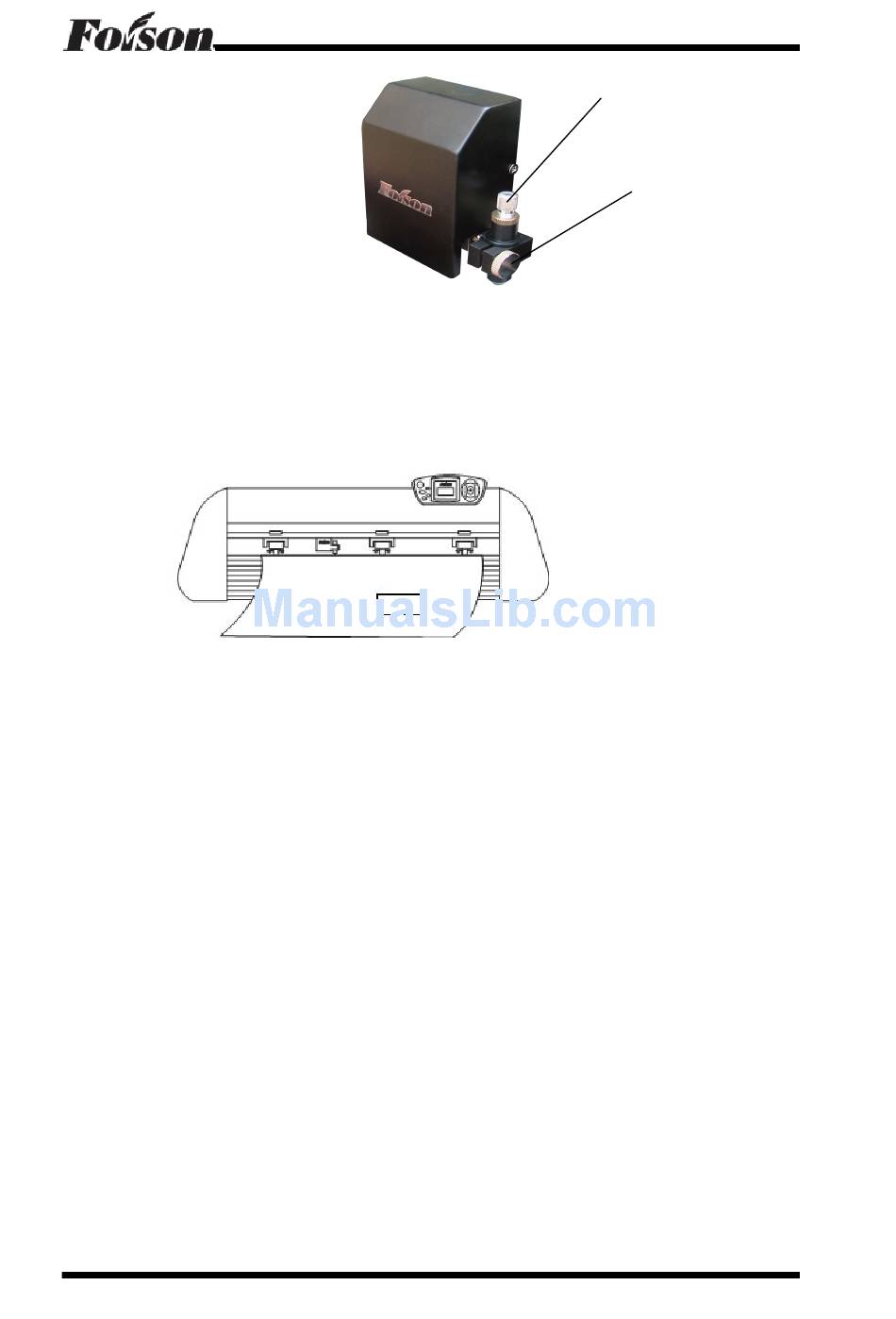

Knife tool
Setscrew
