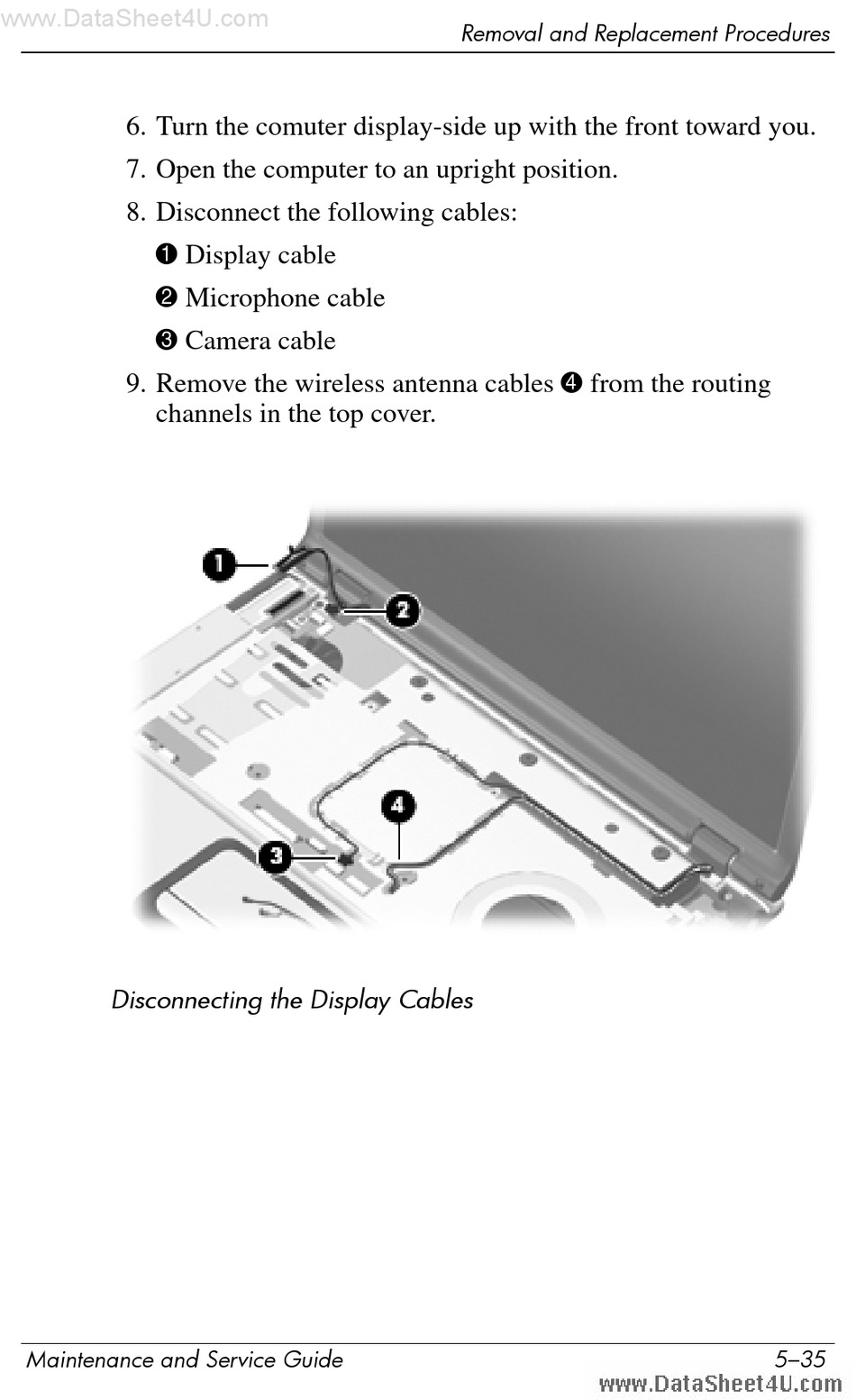

6. Turn the comuter display-side up with the front toward you.
7. Open the computer to an upright position.
8. Disconnect the following cables:
1 Display cable
2 Microphone cable
3 Camera cable
9. Remove the wireless antenna cables 4 from the routing
channels in the top cover.
Disconnecting the Display Cables
Maintenance and Service Guide
Removal and Replacement Procedures
5–35
