Removal and Replacement Procedures
4. Turn the computer display-side up with the front panel
toward you.
5. Open the computer as far as possible.
6. Lift the rear edge of the keyboard 1 until it rests at an angle.
7. Slide the keyboard 2 back to disengage the tabs on the front
edge of the keyboard from the top cover.
8. Swing the keyboard 3 forward until it rests on the palm rest.

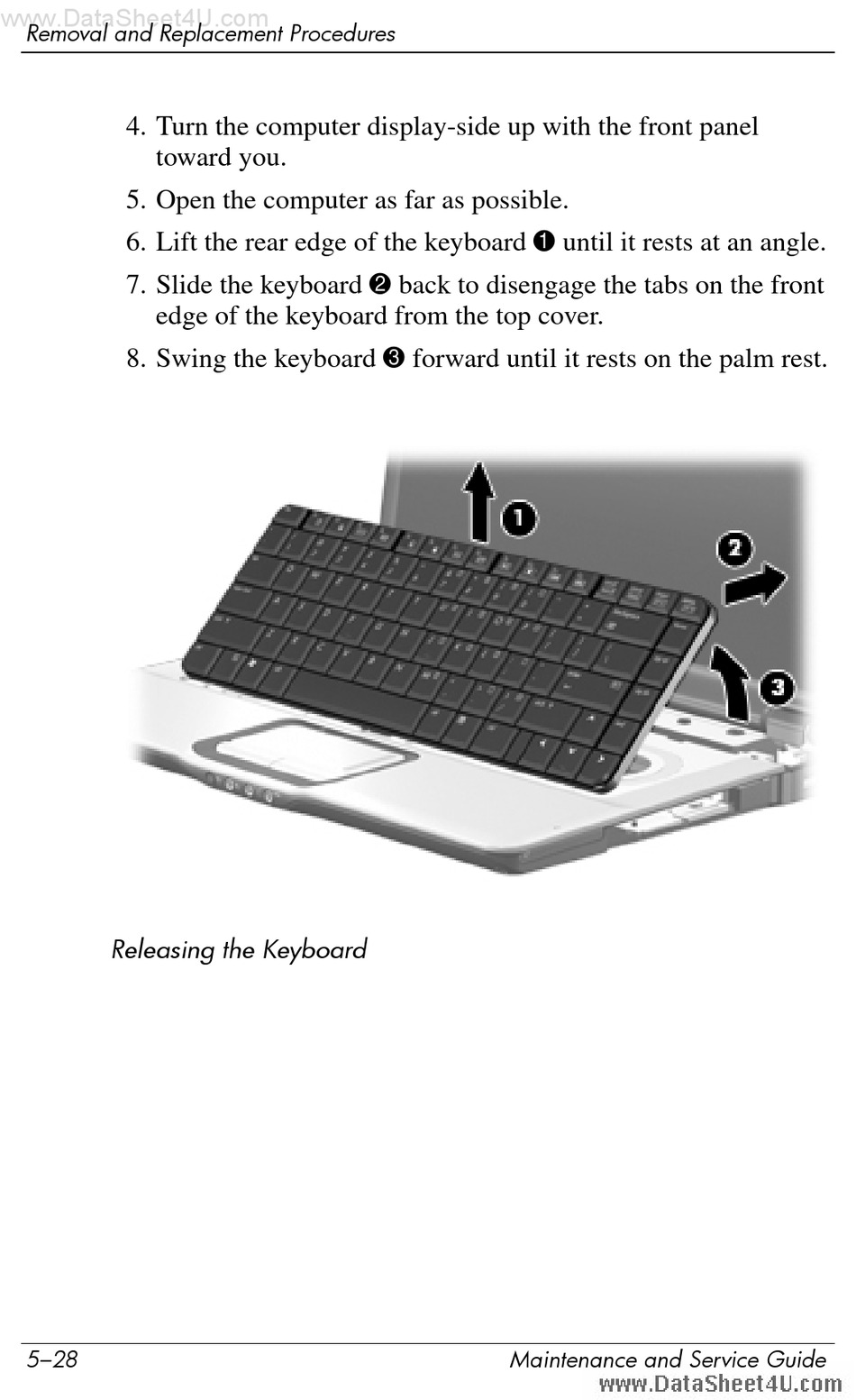

Releasing the Keyboard

5–28 Maintenance and Service Guide
