Removal and Replacement Procedures
2. Loosen the two Phillips PM2.0×5.0 screws 1 that secure
the hard drive cover to the computer.
3. Lift the right side of the cover 2 and swing it to the left.
4. Remove the hard drive cover.
✎
The hard drive cover is included in the Plastics Kit, spare part
number 431428-001.

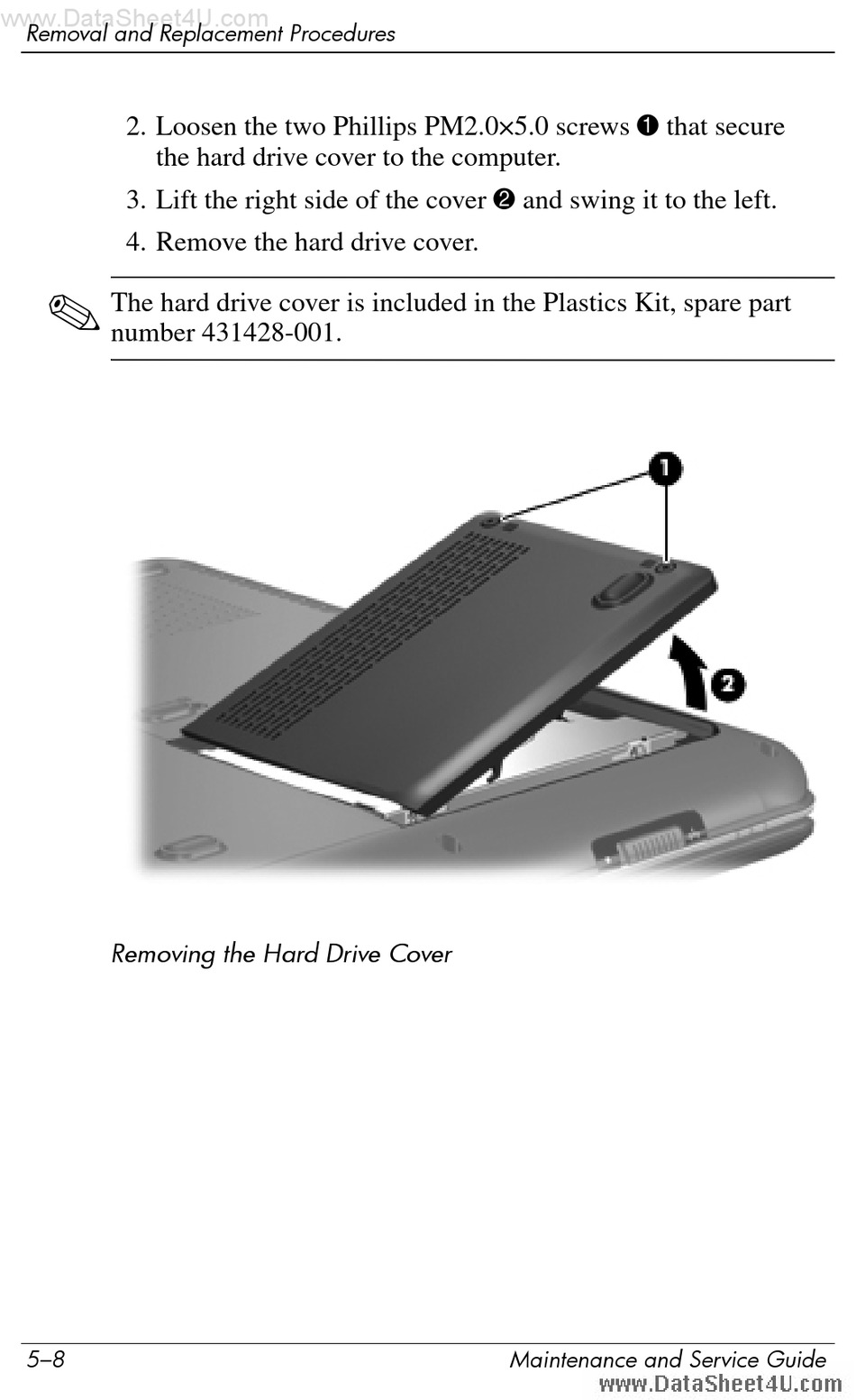

Removing the Hard Drive Cover
5–8
Maintenance and Service Guide
