Removal and Replacement Procedures

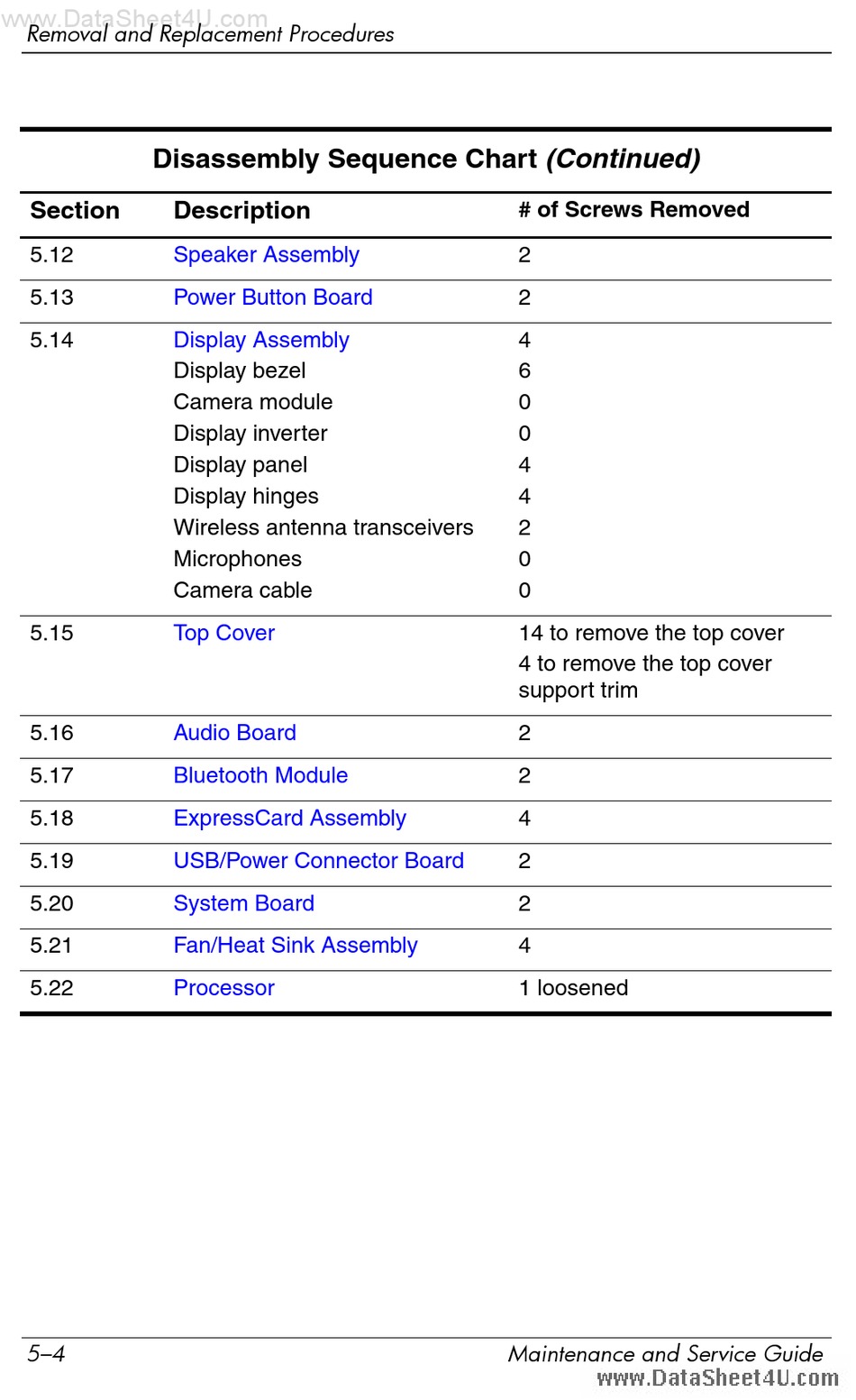

Disassembly Sequence Chart (Continued)
Section
5.12
5.13
5.14
5.15
5.16
5.17
5.18
5.19
5.20
5.21
5.22
5–4
Description
Speaker Assembly
Power Button Board
Display Assembly
Display bezel
Camera module
Display inverter
Display panel
Display hinges
Wireless antenna transceivers
Microphones
Camera cable
Top Cover
Audio Board
Bluetooth Module
ExpressCard Assembly
USB/Power Connector Board
System Board
Fan/Heat Sink Assembly
Processor
# of Screws Removed
2
2
4
6
0
0
4
4
2
0
0
14 to remove the top cover
4 to remove the top cover
support trim
2
2
4
2
2
4
1 loosened
