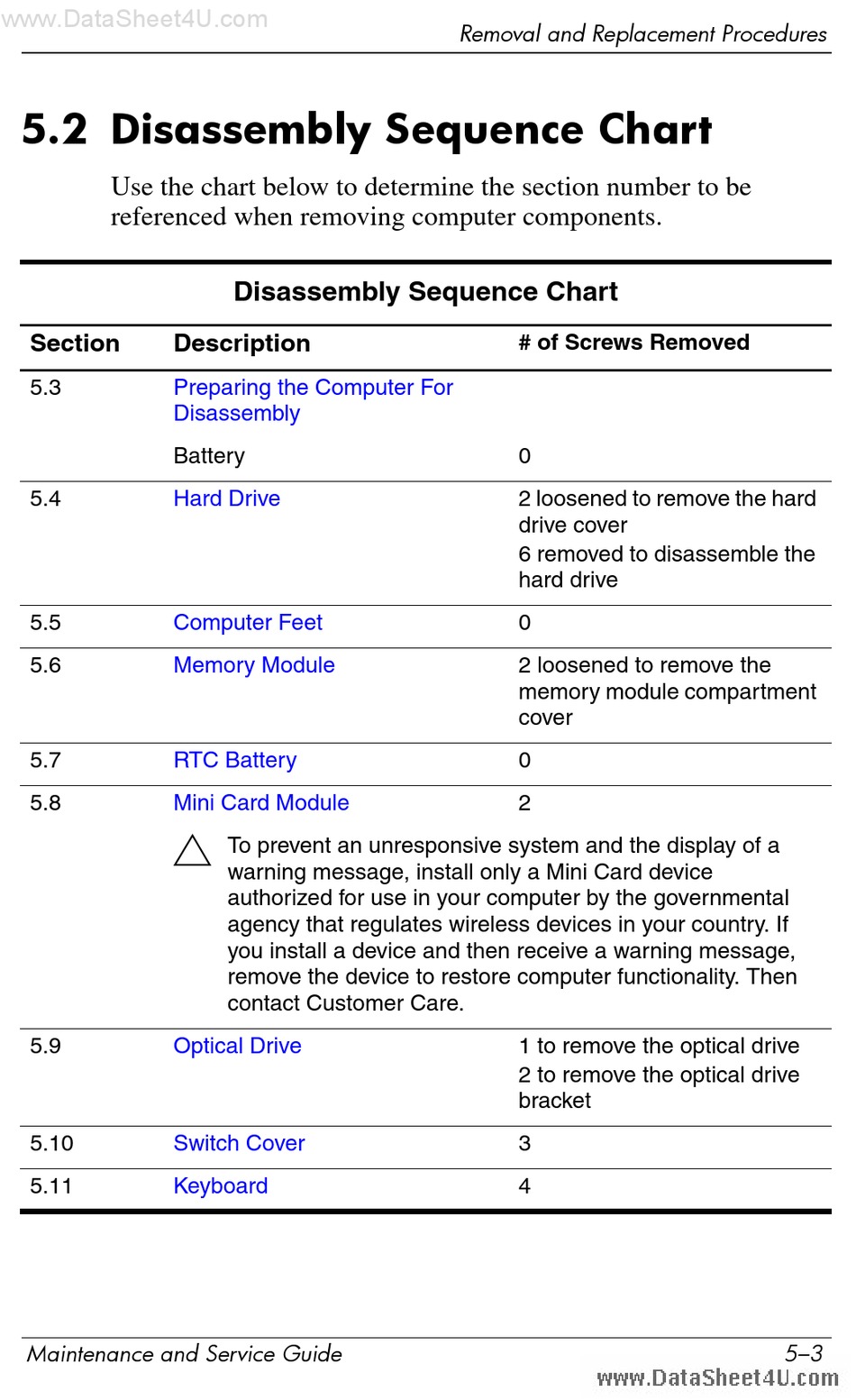

5.2 Disassembly Sequence Chart

Use the chart below to determine the section number to be
referenced when removing computer components.
Section
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
5.11
Maintenance and Service Guide
Disassembly Sequence Chart
Description
Preparing the Computer For
Disassembly
Battery
Hard Drive
Computer Feet
Memory Module
RTC Battery
Mini Card Module
Ä
To prevent an unresponsive system and the display of a
warning message, install only a Mini Card device
authorized for use in your computer by the governmental
agency that regulates wireless devices in your country. If
you install a device and then receive a warning message,
remove the device to restore computer functionality. Then
contact Customer Care.
Optical Drive
Switch Cover
Keyboard
Removal and Replacement Procedures
# of Screws Removed
0
2 loosened to remove the hard
drive cover
6 removed to disassemble the
hard drive
0
2 loosened to remove the
memory module compartment
cover
0
2
1 to remove the optical drive
2 to remove the optical drive
bracket
3
4
5–3
