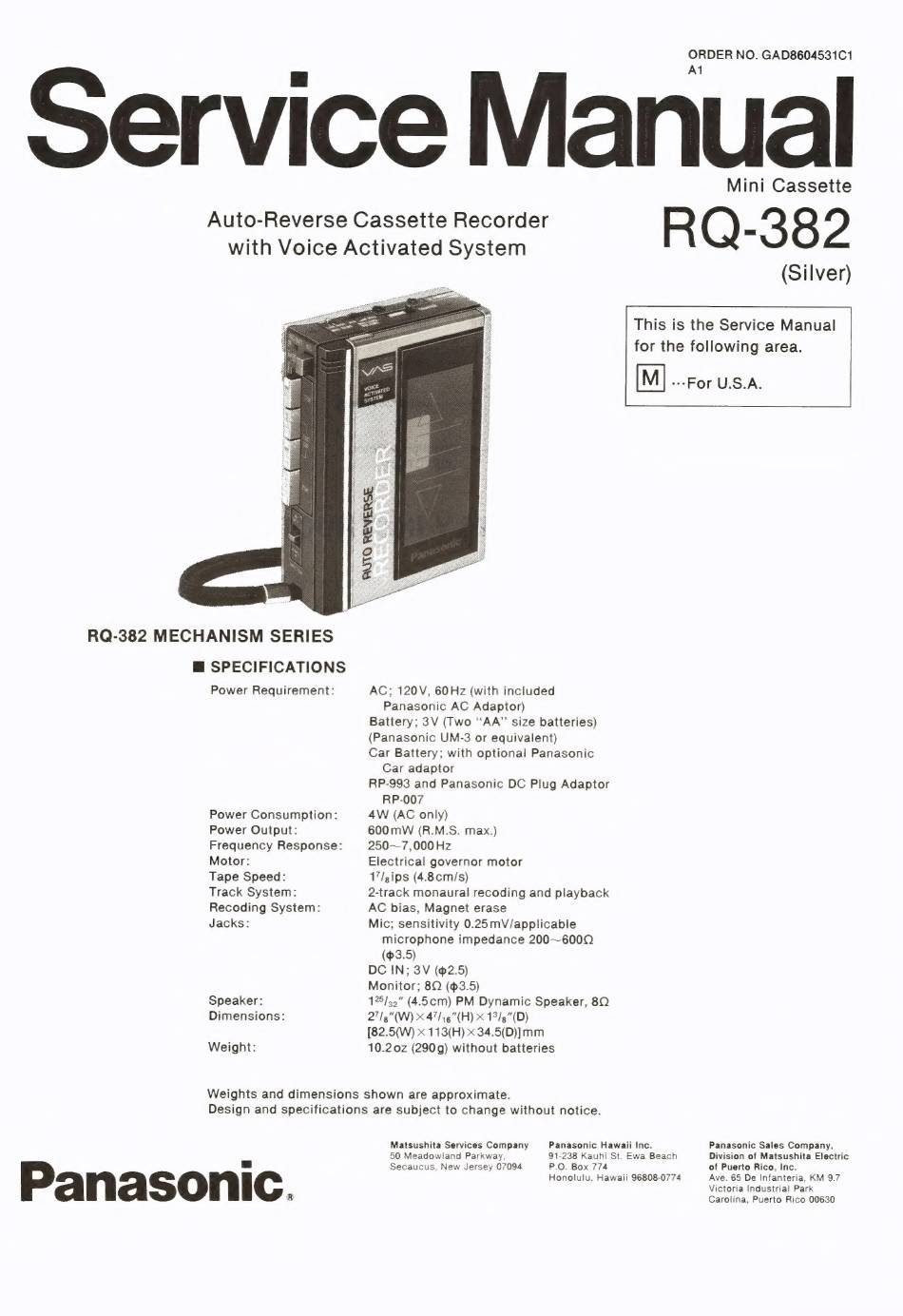

Panasonic RQ-382 Service Manual

ORDER NO. GAD8604531C1
Al
Service Manual
Mini Cassette

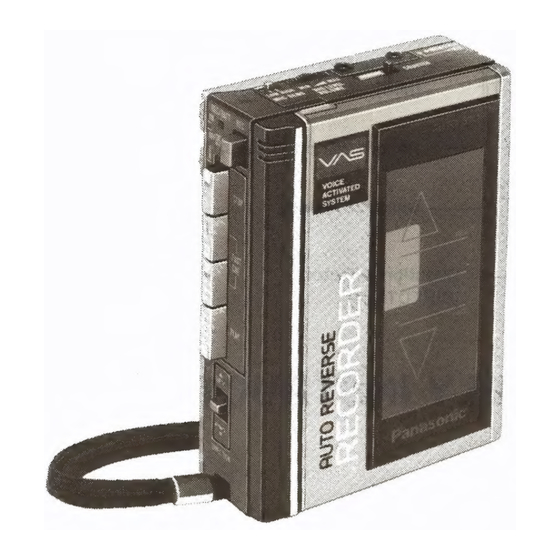

RQ-382
(Silver)
Auto-Reverse Cassette Recorder
with Voice Activated System
This is the Service Manual
for the following area.
[M] ---For U.S.A.
RQ-382 MECHANISM SERIES
@ SPECIFICATIONS
Power Requirement:
Power Consumption:
Power Output:
Frequency Response:
Motor:
Tape Speed:
Track System:
Recoding System:
Jacks:
Speaker:
Dimensions:
Weight:
ACG; 120V, 60Hz (with included
Panasonic AC Adaptor)
Battery; 3V (Two "AA" size batteries)
(Panasonic UM-3 or equivalent)
Car Battery; with optional Panasonic
Car adaptor
RP-993 and Panasonic DC Plug Adaptor
RP-007
4W (AC only)
600 mW (R.M.S. max.)
250~7,000 Hz
Electrical governor motor
17/gips (4.8cm/s)
2-track monaural recoding and playback
AC bias, Magnet erase
Mic; sensitivity 0.25mV/applicable
microphone impedance 200~600Q
(3.5)
DC IN; 3V (2.5)
Monitor; 8Q (3.5)
15/3" (4.5cm) PM Dynamic Speaker, 8Q
271g"(W) X 47/46"(H) X 19/3"(D)
[82.5(W) x 113(H) x 34.5(D)] mm
10.20z (290g) without batteries
Weights and dimensions shown are approximate.
Design and specifications are subject to change without notice.
Panasonic.
Matsushita Services Company Panasonic Hawaii Inc.
91-238 Kauhi St. Ewa Beach
50 Meadowiland Parkway,
Secaucus, New Jersey 07094 P.O. Box 774
Honolulu, Hawaii 96808-0774
Panasonic Sales Company,
Division of Matsushita Electric
of Puerto Rico, Inc.
Ave. 65 De Infanteria, KM 9.7
Victoria Industrial Park
Carolina, Puerto Rico 00630
