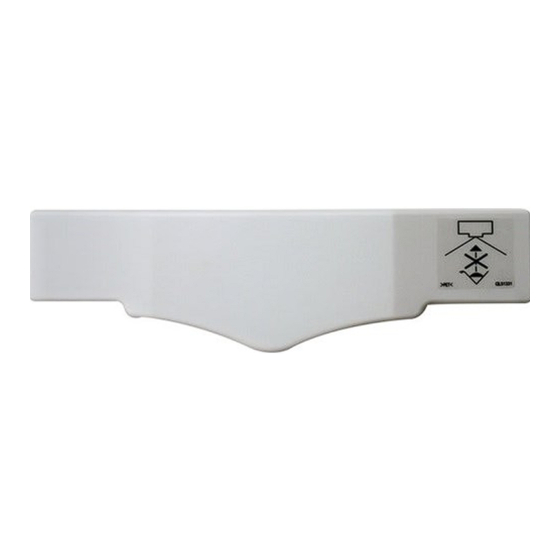

Finger touch unit
Hide thumbs Also See for FT-01B:
Table of Contents

Advertisement

Quick Links

Download this manual
Finger Touch Unit
FT-01B
Model name
Thank you for purchasing a Finger Touch Unit specially designed for Hitachi LCD
projectors.
Be sure to read this manual and the User's Manual supplied with the LCD
projector before using this product. After you have finished reading these documents, put
them away in a safe place for future reference.
● The content of this manual and the specifications of the product it
Disclaimer
● Note that Hitachi will accept no liability whatsoever for injuries and

Table of Contents

Safety Symbols .................................................................. 2
Overview ........................................................................ 2
Regulatory notices ............................................................ 6
About Electro-Magnetic Interference .................................... 6
In the US ........................................................................ 7
Contents of package ......................................................... 8
Part names ..................................................................... 9
Installation ..................................................................... 10
Installation Precautions ................................................... 10
Installation Procedure ................................................... 12
Finger Touch Unit adjustment procedure .............................. 17
Basic Finger Touch Operations .......................................... 23
Inspection and Cleaning ................................................... 23
Troubleshooting ............................................................ 24
Specifications ............................................................... 28
NOTE • The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your product.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
describes are subject to change without prior notice.
damages arising from incorrect use or handling that exceeds normal
operating limits.
FT-01B
1
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Hitachi FT-01B

Summary of Contents for Hitachi FT-01B

  • Page 1: Table Of Contents

    FT-01B User’s Manual Model name Thank you for purchasing a Finger Touch Unit specially designed for Hitachi LCD projectors. Be sure to read this manual and the User’s Manual supplied with the LCD projector before using this product. After you have finished reading these documents, put them away in a safe place for future reference.

  • Page 2: Safety Symbols

    • When this product is installed on a screen, you can use your finger to touch the screen to perform computer operations and draw images. For details on the models where this product can be installed, see the Hitachi website.
  • Page 3 FT-01B WARNING ■This device is classified as a class 1 laser product. • If the laser beam is pointed directly at the eyes, it can cause an eye injury. • Do not look directly into the laser output port. • Do not point the laser beam towards people.
  • Page 4 FT-01B WARNING ■ Do not place on an unstable location, or subject to impact. If the device is hit or dropped, an injury or damage or breakdown of the device can occur. Also, continued use of the device when it is not functioning properly can result in a fire or electrical shock.
  • Page 5 FT-01B CAUTION ■ Do not place in hot locations. When the device is placed in a hot location, the internal temperature can become extremely hot, resulting in a fire or breakdown of the device. Also, if the device is exposed to heat or warm air, this product can be damaged.

  • Page 6: Regulatory Notices

    Declaration of Conformity Trade name HITACHI Model Number FT-01 Responsible Party Hitachi America, Ltd. Address 2420 Fenton Street, Suite 200 Chula Vista,CA 91914 U.S.A. Telephone Number +1 -800-448-2244 This device complies with part 15 of the FCC Rules. Operation is subject...

  • Page 7: About Waste Electrical And Electronic Equipment

    FT-01B About Waste Electrical and Electronic Equipment Following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

  • Page 8: Contents Of Package

    FT-01B Contents of package Check that the items listed in the table below are included in this package. If any are missing, please contact your dealer immediately. Part names in the figures on the following pages are indicated by the symbols given in the table below.

  • Page 9: Part Names

    FT-01B Part names Adjusting knob This knob is used to adjust the height and angle of the infrared laser beam. USB (B-type) mini-connector This is connected to the option port of the projector. Laser output port This is the window where the infrared laser beam is output.

  • Page 10: Installation

    FT-01B Installation Installation Precautions • This device is an optional product for the Hitachi LCD projectors. It cannot be used with other projectors. • When this device is used, install the projector on a ceiling-mounted fixture or a tabletop use kit. It cannot be used for a floor-mounted installation.
  • Page 11 FT-01B Install the Finger Touch Unit in the center of the upper part of the projector display screen. Set the gap between the laser output port of the Finger Touch Unit and the projector display screen to 50 to 100 mm.

  • Page 12: Installation Procedure

    ・ The Finger Touch Unit should never be installed by the customer. Be sure to always request installation by your dealer or service company. ・Hitachi will not be liable for any accidents or injuries that occur due to improper installation or improper usage of this device.
  • Page 13 FT-01B  Installing the Finger Touch Unit Secure the Finger Touch Unit (A) in place using one of the three methods below. (1) Securing using double-sided tape Double-sided tape (C) • Peel off the backing paper (red side) of the double-sided tape (C), and affix four strips to the Finger Touch Unit as shown in the figure below.
  • Page 14 FT-01B  Installing the Finger Touch Unit (continued) (2) Securing using magnetic sheet • Peel off the backing paper of the magnetic sheet (D), and affix three strips to the Finger Touch Unit as shown in the figure below. Magnetic sheet (D) •...
  • Page 15 FT-01B  Connecting the USB cable (B) (1) Use a Phillips-head screwdriver to remove the cover of the option port of the projector. Use the USB cable (B) to connect the Finger Touch Unit (A) to the projector option port.
  • Page 16 FT-01B Using the drop-prevention bar The Finger Touch Unit is provided with a drop-prevention bar that can be used with a commercially-available wire to prevent dropping of this device. Wire Drop-prevention bar Overall installation image An image of the Finger Touch Unit installation is shown below.

  • Page 17: Finger Touch Unit Adjustment Procedure

    FT-01B Finger Touch Unit adjustment procedure (1) Select ADVANCED MENU -> IWB -> IWB SETUP by using MENU button on the remote control supplied with the projector. (2) Set FINGER TOUCH to ON.
  • Page 18 FT-01B (3) Perform CAMERA VIEW. (4) The image of the built-in camera of the projector is displayed.
  • Page 19 FT-01B (5) Secure the supplied adjusting bars (F) to the right and left edges of the projector display screen. Align the white print surface of the Adjusting bar toward the direction of the Finger Touch Unit, and use the supplied double- sided tape to secure in place.
  • Page 20 FT-01B (7) Turn the adjusting knob  clockwise until the reflection line in the screen appears. (8) Turn the adjusting knob  clockwise so that the reflection line is horizontal. (9) Turn the adjusting knob  clockwise so that the reflection line moves near the...
  • Page 21 FT-01B (10) If the reflection line is not horizontal, use adjusting knobs  or  to make the reflection line horizontal. (11) Turn the adjusting knob  clockwise until only one Adjusting bars each appears at the bottom right and bottom left of the screen.
  • Page 22 FT-01B (13) Touch your finger on the projector display screen, and check that your fingertip is lit up within the display screen when the distance between your fingertip and the screen is about 5 mm or less. NOTE • If the distance between the infrared laser beam and screen is too far, turn all the adjusting knobs ...

  • Page 23: Basic Finger Touch Operations

    FT-01B Basic Finger Touch Operations Finger touch operations can be used to perform painting on the displayed projector screen and mouse operations. Refer to Interactive Function in User's Manual (detailed) Operation Guide for operation procedures. Main operations for Windows computer are as follows.

  • Page 24: Troubleshooting

    FT-01B Troubleshooting If any problems occur, immediately disconnect the cables, WARNING and contact your dealer or service company. Phenomena that may be easy to be mistaken for machine defects About the phenomenon confused with a machine defect, check and cope with it according to the following table.
  • Page 25 FT-01B Troubleshooting (Continued) Problem Checkpoints Ref. page Finger Touch If no beam is coming from the laser output port, the laser may have failed. function does not operate. (continued) Is FINGER TOUCH set to "OFF" in IWB SETUP menu? When using Finger Touch function, FINGER TOUCH should be set to "ON".
  • Page 26 FT-01B Troubleshooting (Continued) Problem Checkpoints Ref. page The finger Malfunction may have occurred due to the laser reflected touch on an obstacle around the screen. operations Perform up to step (4) of the Finger Touch Unit are unstable adjustment procedure ( 17) to display Alignment View.
  • Page 27 FT-01B Troubleshooting (Continued) Problem Checkpoints Ref. page The finger Are the Finger Touch Unit and projector installed correctly? touch Check each installation position. positioning alignment Is the computer image projected within the area of the cannot be screen? performed Use by installing at a position where the screen size is correctly.

  • Page 28: Specifications

    FT-01B Specifications Item Specification Model FT-01 Power supply/Rated current 5V/300mA Power consumption Temperature range 0~40°C (Operating) 178 (W) x 58 (H) x 44 (D) mm Size * Not including protruding parts. See figure below. Weight (mass) approx. 110g External View Trademark acknowledgment •...
