Page 1

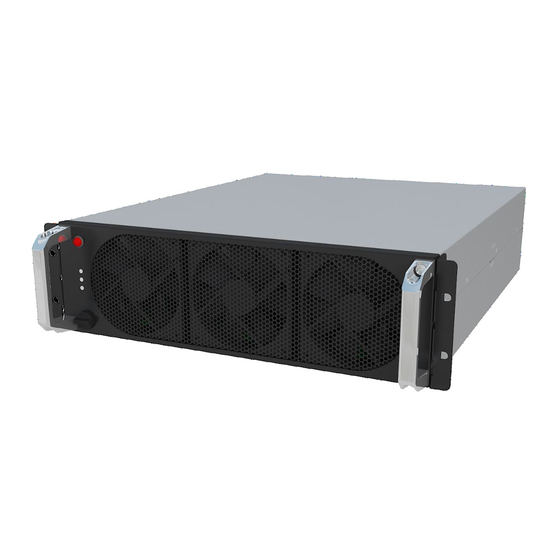

Part number: 31010LMQ UPS5000-E-(40 kVA-320 kVA) User Manual Issue Date 2015-09-15 HUAWEI TECHNOLOGIES CO., LTD.
Page 2
Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
To ensure safety of humans and the equipment, pay attention to the safety symbols on the equipment and all the safety instructions in this document. Huawei will not be liable for any consequence caused by the violation of the safety operation regulations and design, production, and usage standards.
Page 11
Only trained and qualified personnel are allowed to remove safety facilities and inspect the equipment. Only personnel certified or authorized by Huawei are allowed to replace or change the devices or components (including software). Installation personnel must report faults or errors that might cause serious safety issues to related owners.
To ensure battery security and efficient battery management, use the batteries delivered with the UPS. Huawei shall not be responsible for battery damage caused by using non-Huawei batteries for Huawei UPSs. Handle lead-acid batteries according to local regulations.
Page 40
The ECM extended subrack does not support onsite installation. If you require this optional component, inform Huawei when you purchase the UPS. Huawei installs it before delivery. The top entry cabinet applies only to the UPS5000-E-320K-F320. The input PDC, output PDC, and top outlet kit component apply only to the UPS5000-E-120K-F120 and UPS5000-E-200K-F200.
Page 52
Check that the fittings comply with the packing list. If some fittings are missing or do not comply with the packing list, record the information and contact your local Huawei office immediately. Step 7 Remove the L-shaped bracket that secures the cabinet and the pallet, and secure the sliding...
Manual. 3.2.13.2 Connecting a Remote EPO Switch Huawei does not provide an EPO switch and cable. Prepare them before installation. The 22 AWG cable is recommended. AWG is short for American wire gauge. To prevent problems, equip the EPO switch with a protective cover, and enclose the cable with a protective tube.
Page 159
Step 1 Close the UPS input circuit breakers (bypass and mains input circuit breakers) on the input PDC, or turn on the external input power distribution switch. The UPS works in normal mode and starts initialization. The LCD displays the Huawei logo and an initialization progress bar.
Page 163
UPS. A high or low charging power tends to shorten the battery lifespan, or even damages batteries. If you do not know how to confirm the battery capacity, contact Huawei technical support. Number of cells refers to the number of 2 V cells in a single battery string connected to the UPS.
Troubleshooting remove faulty batteries. After 30 minutes, check and record the open-circuit voltages of the faulty batteries. 5. If the fault persists, contact Huawei technical support. 1. The battery operating 1. Identify the cause of an abnormal Battery operating temperature is lower battery operating temperature.
