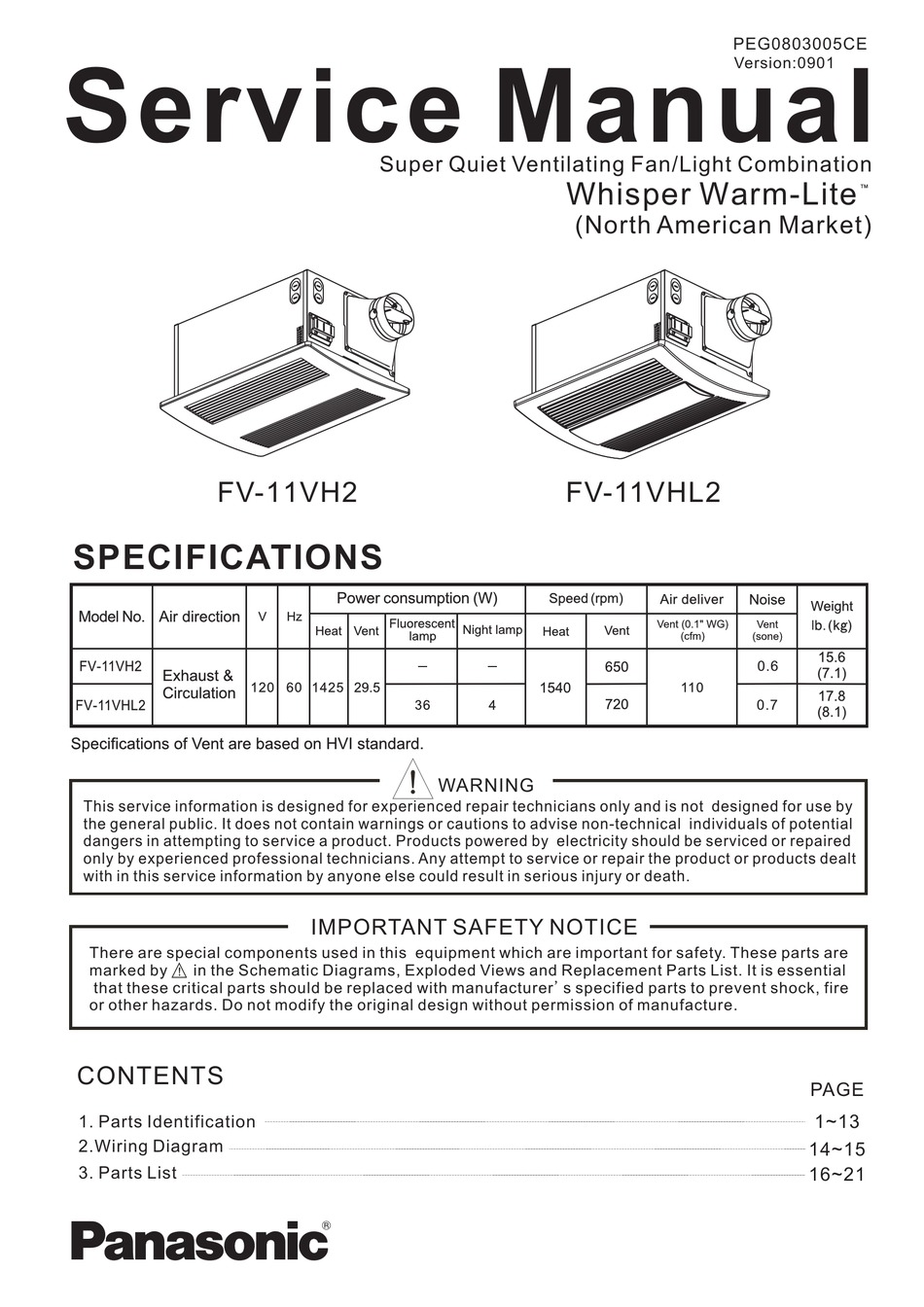

PEG0803005CE Version:0901 Service Manual Super Quiet Ventilating Fan/Light Combination Whisper Warm-Lite (North American Market) FV-11VH2 FV-11VHL2 Part List Part List Wiring Wiring SPECIFICATIONS WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public.
Page 2
FV-11VH2 Main Body Section Grille Unit (4pcs) Circulation Unit (3pcs) Ventilation Unit (1pcs) Frame Unit...
Page 17
FV-11VH2 Main Body Section Part No. Part Name Q'ty Remark FFV3400112S Grille Unit FFV0930008S Circulation Unit FFV6400002S Ventilation Unit FFV1600088S Frame Unit FFV7000153S Truss Tap Screw For Fixing Circulation Unit FFV7000080S Plus Truss Screw For Fixing Ventilation Unit FFV2530003S Tie 1 Frame Unit Part No.
Page 18
FV-11VH2 Casing Section Part No. Part Name Q'ty Remark FFV7000147S Blade Fixing Screw For Fixing Blade Assy. FFV0400092S Blade Assy. For Circulation Unit FFV3730048S Motor Support C FFV3700296S C Motor Assy. 120V,60Hz FFV0790056S Casing Assy. C FFV7000153S Truss Tap Screw...
Page 19
FV-11VH2 Ventilation Unit Part No. Part Name Q'ty Remark FFV2530003S Tie 1 FFV7000063S Truss PC Screw For Fixing Motor Support V FFV7000099S Truss Tap Screw For Fixing Casing Cover Packing & Accessories Section Part No. Part Name Q'ty Remark FFV4710259S Grille Pad...
Page 20
FV-11VHL2 Main Body Section Part No. Part Name Q'ty Remark FFV3400115S Grille Unit FFV3420019S Lighting Unit FFV0930009S Circulation Unit FFV6400002S Ventilation Unit FFV1600090S Frame Unit FFV7000011S Machine Screw For Fixing Lighting Unit FFV7010042S O.T.Washer FFV7000063S Truss PC Screw For Fixing Lighting Unit FFV7000153S Truss Tap Screw For Fixing Circulation Unit FFV7000080S Plus Truss Screw...
Page 21
FV-11VHL2 Circulation Unit Part No. Part Name Q'ty Remark FFV7000009S Truss Tap Screw For Fixing PCB Box FFV7000171S Truss Tap Screw For Fixing PCB Set Grille Unit Part No. Part Name Q'ty Remark FFV3400116S Heater Cover FFV5560038S Spring Set Plate 1 FFV5560039S Spring FFV5560040S Spring Set Plate FFV5560041S Spring Set Plate 2...
Page 22
FV-11VHL2 Heater Unit Part No. Part Name Q'ty Remark FFV2530003S Tie 1 FFV7000039S Pan Tap Screw For Fixing Thermostat Assy. FFV7000155S Pan Tapping Screw For Fixing Terminal Ventilation Unit Part No. Part Name Q'ty Remark FFV3700298S V Motor Assy. 120V,60Hz FFV0900024S Connector FFV3470001S Butt Connector FFV0750107S Capacitor...
