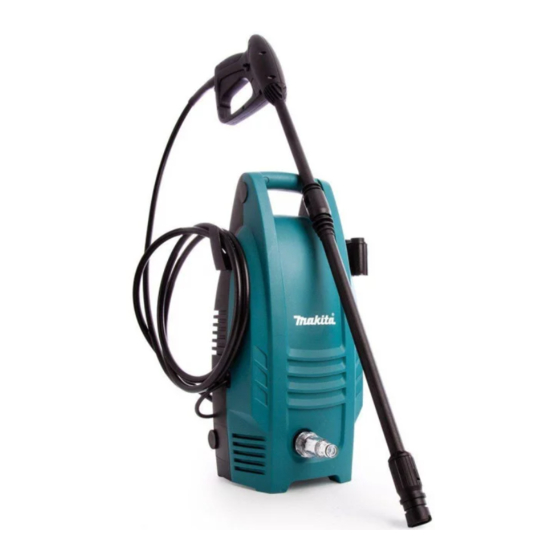

High pressure washer Original instructions Hidrolimpiadora de alta presión Traducción de las instrucciones originales HW 101 cod. 95982 - HK 95982_HW101.indb 1 2020/7/31 上午11:14...
Page 2
Please read these instructions carefully before use. Please retain these instructions for future reference. page: 7-15 Leer atentamente estas instrucciones antes de usar el equipo. Guardar estas instrucciones para poder consultarlas en el futuro. Página: 16-25 95982_HW101.indb 2 2020/7/31 上午11:14...
Page 6
1 ÷ 25 m 25 ÷ 50 m Volt 120 V~ 2 x 1,5 mm 2 x 2,5 mm S = Switch Z1 = Capacitor suppressor T = Thermal protection M = Motor S1 = Pressure switch 95982_HW101.indb 6 2020/7/31 上午11:14...
English SAFETY INSTRUCTIONS 1.1 The appliance you have purchased is a technologically advanced product designed by one of the leading European manufacturers of high pressure washers. To obtain the best performance from your unit, read this booklet carefully and follow the instructions each time you use it.
Page 8
English Guaranteed sound power level Prohibition sign, informs users that local regulations may prohibit connection of the product to the drinking water supply system. Danger sign, warns users not to direct the water jet at people, animals, elec- trical equipment or the product itself. This product is rated in insulation class II.
Page 9
English SAFETY RULES/RESIDUAL RISKS SAFETY “DO NOTS” 3.1.1 W . DO NOT allow children to use the appliance; supervise them to ensure arning that they do not play with it. 3.1.2 W . High pressure jets may be dangerous if incorrectly used. arning 3.1.3 W .
Page 10
English 3.1.19 W . DO NOT allow vehicles to drive over the high pressure hose. arning 3.1.20 W . DO NOT move the appliance by pulling on the high pressure hose. arning 3.1.21 W . When directed towards tyres, tyre valves or other pressurised arning components, the high pressure jet is potentially dangerous.
Page 11
English 3.2.12 W . Water that has passed through backflow preventers is considered to arning be non-potable. 3.2.13 W . Maintenance and/or repair of electrical components MUST be carried arning out by qualified staff. 3.2.14 W . DISCHARGE residual pressure before disconnecting the hose from the arning appliance.
Page 12
English through the pump inlet or is discharged onto the ground. GENERAL INFORMATION (FIG.1)/PAGE 3 - Thermostat valve (D1 where fitted) If the water temperature Use of the manual exceeds the temperature set by the manufacturer, the thermostat The manual forms an integral part of the appliance and should be valve discharges the hot water and draws in an amount of cold kept for future reference.
Page 13
English Adjusting the detergent Refilling and using detergent The detergent must be delivered using the accessories and by To deliver detergent at the correct pressure, set the nozzle (E) the procedures described in point 7.2. (where fitted) on " " or fit the detergent kit (C13) (where available) Use of a high pressure hose longer than the one originally supplied as shown.
English TROUBLESHOOTING Problem Possible causes Remedy Nozzle worn Replace nozzle Water filter fouled Clean filter (L) (fig.5) Insufficient water supply Turn on water supply tap fully Air being sucked into system Check tightness of hose fittings Switch off the appliance and keep depressing and releas- Pump does not reach working Air in pump ing the gun trigger until the water comes out in a steady...
(A) Unit vibrations K = 1,5 m/s 1,42 Makita Corporation - Japan Weight 7,30 Importado por / Imported by: Makita do Brasil Ferramentas Elétrica Ltda. Rod. BR 376, Km 506. Distrito Industrial. Ponta Grossa-PR. CEP 84043-450. 95982_HW101.indb 15 2020/7/31 上午11:14...
Page 16
Español INSTRUCCIONES SOBRE SEGURIDAD 1.1 La máquina que ha adquirido es un producto tecnológicamente muy avanzado, realizado por uno de los mayores expertos europeos en la fabricación de hidrolimpiadoras de alta presión. Hemos redactado este documento para que usted pueda sacarle el máximo rendimiento a la máquina: léalo atentamente y siga las instrucciones cada vez que la utilice.
Page 17
Español Nivel de potencia acústica garantizado Prohibición: le indica al usuario que es posible que las normas nacionales prohíban la conexión del producto a la red de abastecimiento de agua potable. Señal de peligro: le indica al usuario que no dirija el chorro de agua hacia personas, animales, equipos eléctricos ni contra el producto mismo.
Page 18
Español NORMAS DE SEGURIDAD / RIESGOS RESIDUALES ADVERTENCIAS: OPERACIONES QUE NO DEBEN EFECTUARSE 3.1.1 a . NO permitir que los niños utilicen la máquina y vigilarlos para impedir tención que jueguen con ella. 3.1.2 a . Los chorros a presión pueden ser peligrosos si se utilizan de modo tención impropio.
Page 19
Español 3.1.15 a . Comprobar que la máquina lleve la placa de datos; en caso contrario, tención informar al distribuidor. Las máquinas desprovistas de placa NO deben utilizarse, ya que se desconocen sus datos y características y, por tanto, son potencialmente peligrosas.
Page 20
Español 3.2.6 a . Utilizar solo cables alargadores autorizados y con un conductor de tención sección apropiada. 3.2.7 a . Desconectar siempre el interruptor cuando se va a dejar la máquina tención sin supervisión. 3.2.8 . La alta presión puede provocar el rebote de piezas. Usar todas tención las prendas y protecciones (EPI) necesarias para garantizar la seguridad y la integridad física del operador.
Page 21
Español 3.2.18 a . Esta máquina ha sido diseñada para usarse con los detergentes tención suministrados o recomendados por el fabricante. El uso de detergentes o productos químicos diferentes puede perjudicar su seguridad. 3.2.19 a . Evitar que el detergente entre en contacto con la piel ¡y especialmente tención con los ojos! ¡En caso de contacto con los ojos, enjuagarlos con agua limpia y solicitar asistencia médica inmediatamente!
Page 22
Español La válvula de seguridad también es una válvula limitadora de presión. INFORMACIÓN DE CARÁCTER GENERAL (FIG. 1)/PÁGINA 3 Cuando se cierra la pistola, la válvula se abre y el agua se recircula desde Uso del manual la boca de aspiración de la bomba o bien se descarga hacia el suelo. El presente manual es parte integrante de la máquina y debe guar- - Válvula termostática (D1 si está...
Page 23
Español 3) Poner el dispositivo de arranque en la posición (ON/I). AJUSTES (FIG. 3)/PÁGINA 5 Puesta fuera de servicio Ajuste de la boquilla(si está previsto) 1) Cerrar la llave de paso del agua. Girar la boquilla (E) para ajustar el chorro de agua. 2) Descargar la presión residual de la pistola hasta que se vacíe toda Ajuste del suministro de detergente el agua de la máquina.
Page 24
Español INFORMACIÓN SOBRE AVERÍAS Problemas Causas probables Remedios Boquilla desgastada Sustituir la boquilla Filtro de agua sucio Limpiar el filtro (L) (fig. 5) Alimentación de agua insuficiente Abrir completamente la llave de paso Aspiración de aire Comprobar los racores La bomba no alcanza la presión pre- Apagar la máquina y accionar la pistola hasta que salga un chorro Aire en la bomba determinada...
Impedancia de red máxima permitida Ω Nivel de presión acústica K = 3 dB(A) : (EN 60704-1) dB (A) (EN 60704-1) dB (A) Vibraciones del aparato K = 1,5 m/s 1,42 Makita Corporation - Japan Peso 7,30 95982_HW101.indb 25 2020/7/31 上午11:14...
