Philips Defiant NOA0039R Installation Instructions

Home power
NOA0039R
READ IT OR WATCH IT
Read instructions or watch easy-to-follow video.
Scan QR code or visit https://byjasco.com/44873i
POWER
DUSK DAWN
8 HR 6 HR
4 HR 2 HR
ON OFF
Installation instructions
1. Mounting the timer
• Mount the timer (A) onto a wall near a GFCI outlet.
• Install a nail or screw (not included) into a wall.
The nail or screw must extend at least 7/8in. from the wall and
allow the timer to be above ground level as far as possible.
A
• Hang the timer (A) from the eyelet on the top left
of the unit with the receptacles (D) facing downward so
moisture does not accumulate.
• Plug the grounded power cord (C) into a GFCI outlet.
• Plug the device you wish to control into either receptacle (D).
C
D
A
POWER
DUSK DAWN
8 HR 6 HR
4 HR 2 HR
ON OFF
FCC STATEMENT:
Suppliers Declaration of Conformity | Model #:NOA0039R|
JascoProductsCo.,10E.MemorialRd.,Oklahom aCity,OK
73114, www.byjasco.co m
FCC Warnning:
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Any Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance
20cm between the radiator and your body.
2. Preparing the remote:
• Pull the plastic tab on the remote to activate battery.
3. Plug in the timer and press the remote's ON button. The timer
should turn on.
4. Pairing remote and timer:
Timer should be paired to the remote, but if it does not work:
Plug in the timer, press the button three times quickly, and the
red LED �ashes.
• Press any button on the remote. The red indicator light on the
5. Changing the battery (B):
• Remove the Phillips screw and slide the battery cover
from the remote.
• Remove the battery and insert a new CR2032
battery — note polatiry.
• Replace the cover and screw.
+
CR2032
WARNING
RISK OF ELECTRIC SHOCK:
• FULLY INSERT THE PLUG INTO A GFCI CONTROLLED RECEPTACLE
• KEEP CHILDREN AWAY
• DO NOT USE WITH EXTENSION CORDS
• INSTALL TIMER AS FAR ABOVE GROUND LEVEL AS
POSSIBLE WITH THE RECEPTACLE FACING DOWNWARD
• NOT FOR WATER IMMERSION OR FOR USE WHERE DIRECTLY
EXPOSED TO DRIPPING OR SPLASHING WATER
• UNPLUG BEFORE CLEANING
RISK OF FIRE:
• DO NOT EXCEED ELECTRICAL RATINGS
• DO NOT USE TO CONTROL APPLIANCES THAT CONTAIN HEATING
ELEMENTS (COOKING APPLIANCES, HEATERS, IRONS, ETC)
BATTERY WARNING:
• BATTERIES MAY LEAK HARMFUL LIQUIDS OR IGNITABLE
MATERIALS OR EXPLODE CAUSING INJURY OR
PRODUCT DAMAGE
• DO NOT MIX OLD AND NEW OR OTHER BATTERY TYPES
• REPLACE ALL BATTERIES AT THE SAME TIME
• REPLACE FULLY DISCHARGED BATTERIES IMMEDIATELY
• REMOVE BATTERIES IF PRODUCT IS TO BE UNUSED FOR
AN EXTENDED PERIOD OF TIME
RECEIVE R
Functional Range ........................................................................ Up to 80 ft.
Maximum Tungsten Load .......................................................1000 W, 8 A
Maximum Resistive Load ...................................................... 1875 W, 15 A
Rating .......................................................................................125 VAC/60 Hz
TRANSMITTER
Functional Range ........................................................................ Up to 80 ft.
Battery Type ........................................................ Use only CR2032 battery
factors: weather, radio frequency interference, low transmitter battery, and
obstructions between the transmitter and receiver.
Troubleshooting
1. If the indicator light is not activated by pressing the
button, check the following:
• Ensure the button is pressed and held for at least
one second.
• Verify the battery orientation, noting the polarity.
• Replace the battery. Use only CR2032.
2. The device does not turn on
• Ensure the lamp or electronic device plugged into
the timer is turned ON.
• Ensure the AC power cord is securely plugged into
an AC power outlet.
100%
recyclable
Separate
paper
from plastic
before
recycling
B
byjasco.com/recycle
5023165
paper made from 25%
post consumer waste

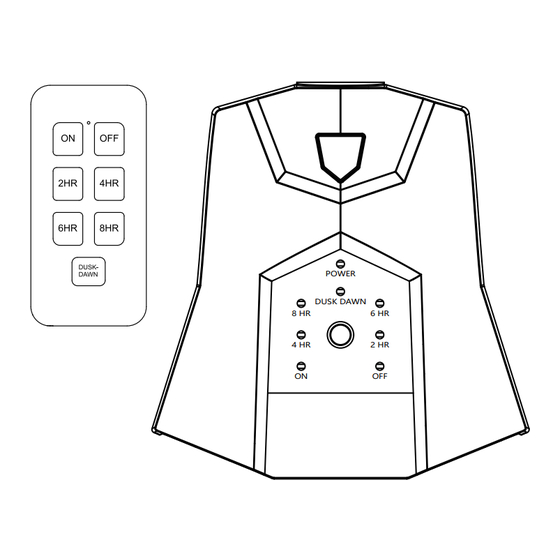

Product description
Indicator lights
On
POWER
DUSK DAWN
8 HR 6 HR
4 HR 2 HR
ON OFF
3 outlets
A. Outdoor timer
Plug the device(s) to be controlled into the grounded
outlet(s) on the bottom of the outdoor timer.
B. Wireless remote transmitter
Press the ON button on the remote to turn on the lamp(s) or
device(s) plugged into the timer. Press the OFF button to turn
See installation instructions.
MADE IN VIETNAM
Philips and the Philips Shield Emblem are registered trademarks of
Koninklijke Philips N.V. and are used under license. This product has
been manufactured by and is sold under the responsibility of Jasco
Products Company, and Jasco Products Company LLC, 10 E.
Memorial Rd., Oklahoma City, OK 73114 is the warrantor in relation
to this product.
This product has a 1-year limited warranty.
Visit www.philips.com/support for warranty details.
Questions? Contact our U.S.-based Consumer Care
at 1-844-816-0320, M-F, 7AM-8PM Central Time.
For product patent information, visit
www.byjasco.com/patents.
v2 03/2023
