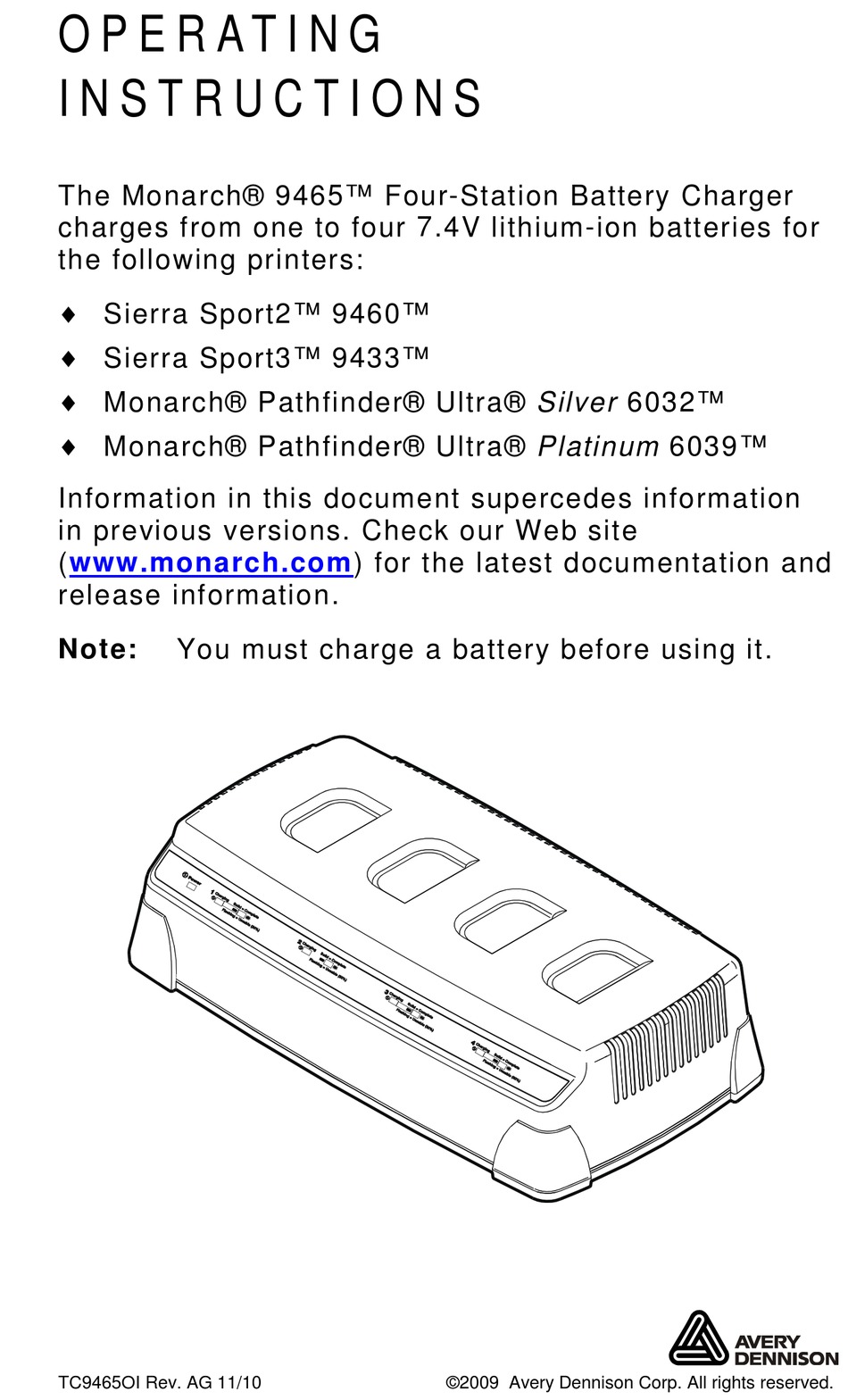

O P E R A T I N G

I N S T R U C T I O N S

The Monarch® 9465™ Four-Station Battery Charger

charges from one to four 7.4V lithium-ion batteries for

the following printers:

 Sierra Sport2™ 9460™

 Sierra Sport3™ 9433™

 Monarch® Pathfinder® Ultra® Silver 6032™

 Monarch® Pathfinder® Ultra® Platinum 6039™

Information in this document supercedes information

in previous versions. Check our Web site

(www.monarch.com) for the latest documentation and

release information.

Note:

You must charge a battery before using it.

TC9465OI Rev. AG 11/10

Page 1 O P E R A T I N G I N S T R U C T I O N S The Monarch® 9465™ Four-Station Battery Charger charges from one to four 7.4V lithium-ion batteries for the following printers:  Sierra Sport2™ 9460™...
Page 2 WARNINGS  Use only a Monarch-qualified battery.  The battery could be damaged or explode if placed on a different charger.  Do not throw the battery in the trash. Dispose according to your local regulations.  Do not disassemble, short-circuit, heat above 80°C, or incinerate the battery.
Page 3 C h a r g i n g a B a t t e r y To charge a battery, insert the battery into the charger as shown. Charging time can take up to three hours. It takes approximately two hours to reach the 80% level (where it is now usable).
Page 4: Power Supply
T r o u b l e s h o o t i n g When an error occurs, the Charging and Complete LEDs blink together. In this case, repeat the charging process. If the error still occurs, repeat the process with a new battery.
