Summary of Contents for Universal Remote Control Complete Control MX-900i
-

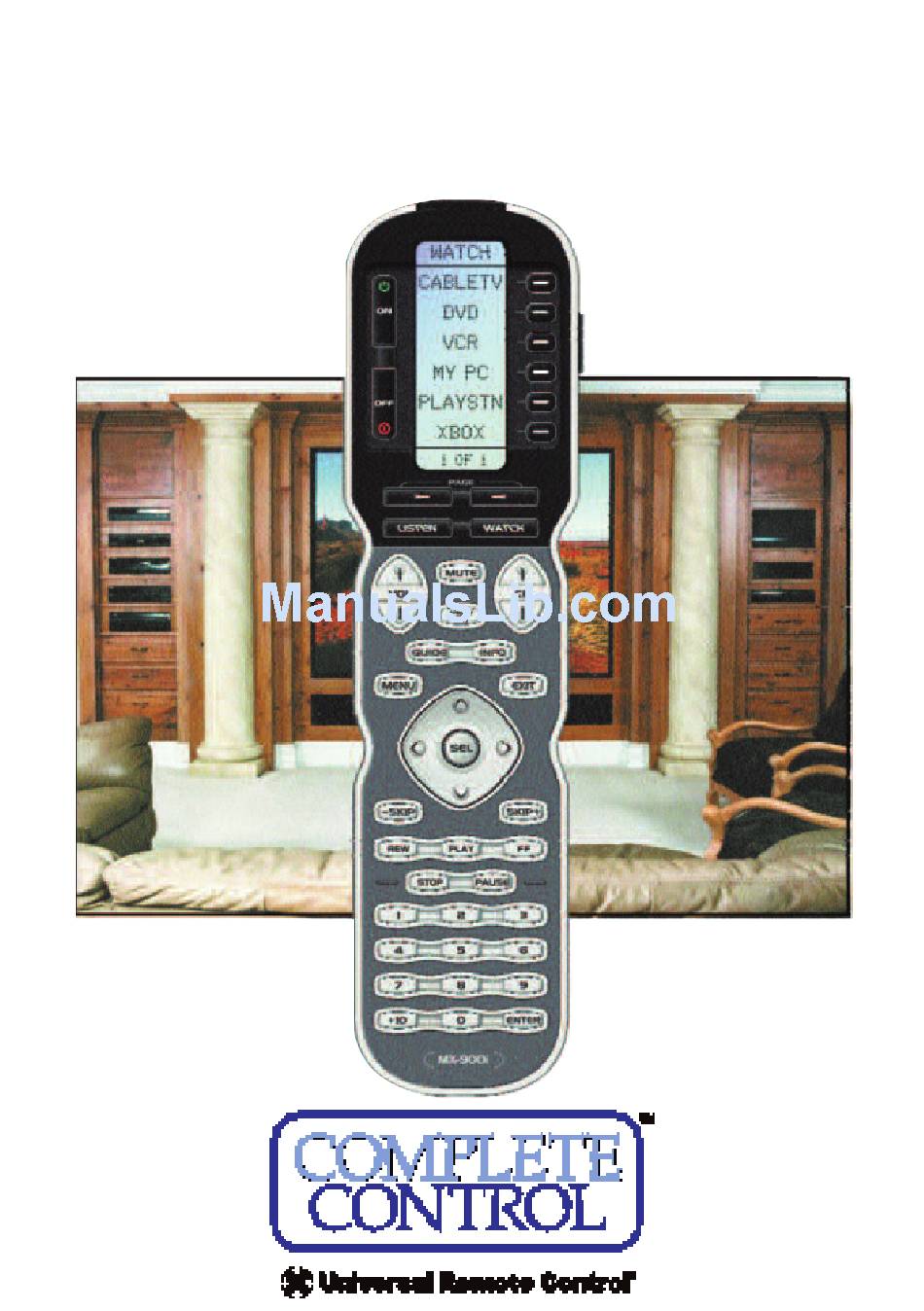

Page 1: Operating Your System
Operating Your System With The MX-900i... - Page 2 TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Complete Control is a registered trademark of Universal Remote Control, Inc. Entertainment Made Simple is a trademark of Universal Remote Control, Inc.
-
Page 3: Table Of Contents
ABLE ONTENTS Congratulations! Custom Labeled Buttons Optional RF “No Rules” Operation Installing Batteries Programming the MX-900i Selecting a New “Activity” Using the MX-900i to Control an “Activity” Displaying the Setup Screen Selecting from the Setup Screen Setting the LCD Light Settings Sound Volume System Settings Version Information Displays... -
Page 4: Congratulations

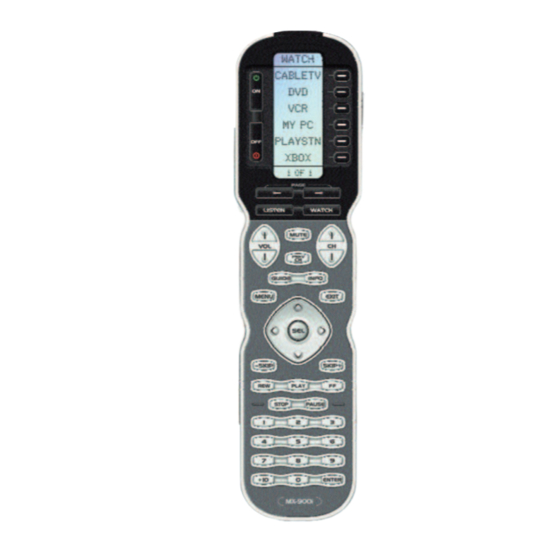

ANUAL Congratulations! You’ve purchased a unique synthesis of hardware and software engineering, the Complete Control MX-900i. The MX-900i achieves a magnificent combination of power and flexibility, simplifying and automating operation of even the most complex system. One Touch Blue Backlighting Simply press the LIGHT button to backlight the screen. -
Page 5: Optional Rf "No Rules" Operation
MX-900i O WNERS ANUAL Optional RF “No Rules” Operation In combination with a Complete Control RF Base Station, the MX-900i can control your system without being in line-of-sight of the equipment. Either the MRF-350i or the RFX-250i RF base station is compatible with the MX-900i. -
Page 6: Installing Batteries
MX-900i O WNERS ANUAL Installing Batteries Open the battery cover by pressing the release and pulling back the cover on the back of the control. Remove the cover. Observe the + and - polarity indications inside the battery compartment. Place the four AAA batteries into their positions in the battery com- partment observing the + and - polarity indicators on the batteries. -
Page 7: Programming The Mx-900I
MX-900i O WNERS ANUAL Programming the MX-900i The MX-900i is programmed via a Windows PC equipped with a USB port (programming cable included), using our proprietary software, MX-900i Editor. You can download this software from our website: www.universalremote.com Basic setup takes only a few minutes with this software. However, to fully automate an audio/video system the user must have a detailed knowledge of each component, you the user (and your preferences) and how the system is connected and operated. -
Page 8: Selecting A New "Activity
MX-900i O WNERS ANUAL Selecting a New “Activity” The MX-900i’s WATCH and LISTEN buttons display the activities you can control with your MX-900i. When you want to watch something else (a DVD movie, a videotape or an HDTV broadcast), simply press the WATCH button and select the new activity. -
Page 9: Using The Mx-900I To Control An "Activity
MX-900i O WNERS ANUAL Using the MX-900i to Control an “Activity” Once you’ve selected a new activity, the MX-900i displays the title of the activity at the top of the screen. Below the title, the LCD displays the cus- tomized names of any special features you need for the activity. All the hard buttons of the MX-900i have now changed to functions optimized for this activity. -
Page 10: Displaying The Setup Screen
MX-900i O WNERS ANUAL Displaying the Setup Screen You can adjust the settings of the MX-900i whenever you like by pressing and holding both the WATCH and the ENTER button at the same time for three seconds. When you do, the screen will change to the SETUP screen. If you do not press any button on the SETUP screen within 30 seconds, the MX-900i will time out and automatically return to normal operation. -
Page 11: Setting The Lcd
MX-900i O WNERS ANUAL Setting the LCD With these settings, you can set the MX-900i to constantly display the LCD when not in use, or show a blank screen when not in use. Additionally, you can control the contrast of the screen. To activate the LCD On/Off setting, press this button. - Page 12 MX-900i O WNERS ANUAL Setting LCD Contrast You can adjust the contrast of the LCD screen using the LEFT and RIGHT arrow keys once the LCD contrast screen has been selected (shown on the previous page). The current CONTRAST is displayed here via a bar graph.
-
Page 13: Light Settings
MX-900i O WNERS ANUAL Light Settings You can adjust the backlighting of the remote in two additional ways: 1. You can turn on/off the LCD and the hard button backlighting. 2. You can select the amount of time the lighting stays on after the last button press from a range of values between 10 seconds and 90 seconds. -
Page 14: System Settings
MX-900i O WNERS ANUAL System Settings You can set your MX-900i to display the Low Battery warning at a power level between 0% and 20% (in 5% increments). The Power bar indicates avail- able power with Black. Press here to adjust the battery warning level. -
Page 15: Usa Limited Warranty Statement
It is likely that such data, software, or other materials will be lost during service and Universal Remote Control will not be responsible for any such damage or loss. Adated purchase receipt, Bill of Sale, Installation Contract or other verifiable Proof of Purchase is required. -
Page 16: Specifications
WNERS ANUAL LIMITATION OF REMEDIES UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS PRODUCT. IN NO EVENT SHALL UNI- VERSAL REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN... -
Page 17: Federal Communication Commission Interference Statement
MX-900i O WNERS ANUAL Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 18: Declaration Of Conformity
Company Address #181 GONG DAN-DONG, GUMI, GYEONG BUK, REPUBLIC OF KOREA Contact Information Phone: +82-54-468-7281, Fax: +82-54-461-8368 Brand Name UNIVERSAL remote control Product Name RF Remote Controller Model Name MX-900i This product herewith complies with the requirements of EMC Directive (2004/108/EC) and R&TTE Directive(1995/5/EC) issued by the Commission of the European Community... - Page 19 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0050B Rev 05...
