Summary of Contents for Mackie iP-10

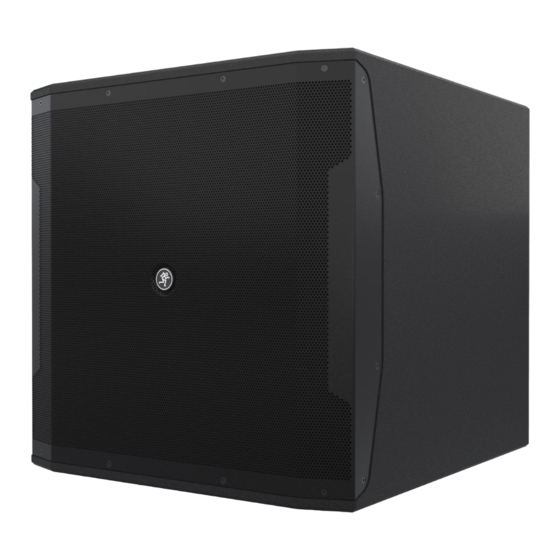

- Page 1 iP Series Install Performance Loudspeakers O W N E R ’ S M A N U A L...
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 12. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced 2. Keep these instructions. hearing loss, but nearly everyone will lose some hearing if exposed to 3. -
Page 3: Table Of Contents
• High-output ceramic woofer with voice coil for FEATURES ............... 3 maximum output. HOW TO USE THIS MANUAL ........4 • iP-10 – 10" woofer / 2" voice coil GETTING STARTED ........... 4 • iP-12 – 12" woofer / 2.5" voice coil THINGS TO REMEMBER ........... 4 •... -
Page 4: How To Use This Manual
How to Use This Manual Things to Remember: • Never listen to loud music for prolonged periods. After this introduction, a getting started guide will Please see the Safety Instructions on page 2 for help you get things set up fast. The hook-up diagrams information on hearing protection. -
Page 5: Hookup Diagrams
Hookup Diagrams Two iP-12’s with a Mixer and Power Amplifier Left Right Line level Line level Output Output ProFX12 Mixer Power Amplifier CHANNEL 2 CHANNEL 1 BRIDGED BRIDGED CH 2 CH 1 The left and right line-level outputs from a mixer feed the inputs of a power amplifier. The speaker outputs of the power amplifier feed the inputs of two iP-12 loudspeakers. - Page 6 Two iP-12 Loudspeakers Daisy-Chained with Two iP-18S Subwoofers iP12 plays the Mid and High frequencies iP12 plays the Mid and High frequencies CHANNEL 2 BRIDGED CHANNEL 1 BRIDGED CH 2 CH 1 Power Amplifier CHANNEL 2 BRIDGED CHANNEL 1 BRIDGED CH 2 CH 1 Power Amplifier...
-
Page 7: Placement
Placement iP loudspeakers are designed for permanent • Highly reverberant rooms, like many gymnasiums installation, hence the name! iP loudspeakers can be and auditoriums, are a nightmare for sound mounted on the ceiling or wall and may also be flown via system intelligibility. -
Page 8: Rigging
4. Safety: Use adequate safety precautions and back- points must be used to hang an iP Series loudspeaker. up systems. MP = Mounting Point 8 Fly Points [ iP-10 / iP-12 / iP-15 ] Right Side Left Side Rear iP Series Loudspeakers... -
Page 9: Important Rigging Reminder
Important Rigging Reminder: Rigging Configurations The iP Series have M10 inserts on the top, rear and To reiterate, we are not in the business of providing both the left and right sides. This allows the iP to be complete rigging systems, either as designers, flown vertically, in horizontal applications, it can be manufacturers, or installers. -
Page 10: Protection
Protection Recommended Power Ratings • iP-10: 400 watts into 8 ohms (200 watts rms × 2) A protection circuit is built into the iP-10, iP-12 • iP-12: 500 watts into 4 ohms (300 watts rms × 2) and iP-15 to protect their high-frequency drivers from •... -
Page 11: Appendix A: Service Information
Appendix A: Service Information Poor bass performance If you think your product has a problem, please check out the following troubleshooting tips and do your best to confirm the problem. Visit the Support section • Check the polarity of the connections between of our website (www.720trees.com) to get some ideas the amplifier and the loudspeakers. -
Page 12: Appendix B: Connections
Appendix B: Connections Repair For warranty service, refer to the warranty The iP Series loudspeakers have NL4 input and thru information on page 15. connectors. The connectors are wired in parallel, so use only one of the input connectors. Non-warranty service for products is available at a factory-authorized service center. -
Page 13: Appendix C: Specifications And Dimensions
13.4 in / 340 mm Depth: 14.9 in / 377 mm Weight: 26 lb / 11.8 kg Weight: 34.2 lb / 15.5 kg iP-10 Dimensions iP-12 Dimensions 12.0 in / 14.2 in / 305 mm 361 mm 20.5 in / 23.0 in /... - Page 14 iP-15 iP-18S System System Type: Two-way, full-range loudspeaker Type: Subwoofer Frequency Range (–10 dB): 40 Hz – 20 kHz Frequency Range (–10 dB): 35 Hz – 150 Hz Horizontal Coverage Angle: 90˚ Nominal Impedance: 8 ohms Vertical Coverage Angle: 50˚ Power Handling: 400 watts continuous 800 watts program...
-
Page 15: Limited Warranty
Limited Warranty Please keep your sales receipt in a safe place. This Limited Product Warranty (“Product Warranty”) is provided by LOUD Technologies Inc. (“LOUD”) and is applicable to products purchased in the United States or Canada through a LOUD-authorized reseller or dealer. The Product Warranty will not extend to anyone other than the original purchaser of the product (hereinafter, “Customer,”... - Page 16 16220 Wood-Red Road NE Woodinville, WA 98072 • USA Phone: 425.487.4333 Toll-free: 800.898.3211 Fax: 425.487.4337 www.720trees.com...
