SERVICE MANUAL

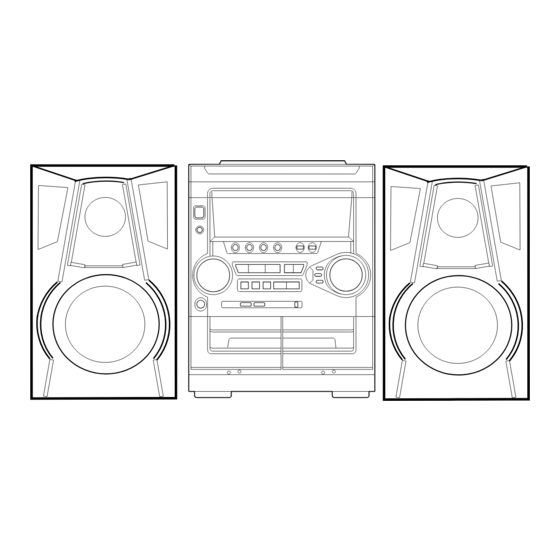

COMPACT DISC STEREO SYSTEM
SYSTEM
NSX–SZ35
• If requiring information about the CD mechanism, see Service Manual of AZG-1,
(S/M Code No. 09-001-335-3N8).
NSX-SZ35
BASIC TAPE MECHANISM : ZZM-3 PR1NM
BASIC CD MECHANISM : AZG-1 ZD3RDM
CD
CASSEIVER
CX–NSZ35
S/M Code No. 09-009-425-8N1
SPEAKER
CONTROLLER
SX–WNSZ35
G
REMOTE
RC–ZAS02

Advertisement

Table of Contents
loading

Related Manuals for Aiwa NSX-SZ35

Summary of Contents for Aiwa NSX-SZ35

  • Page 1 NSX-SZ35 SERVICE MANUAL BASIC TAPE MECHANISM : ZZM-3 PR1NM COMPACT DISC STEREO SYSTEM BASIC CD MECHANISM : AZG-1 ZD3RDM REMOTE SYSTEM SPEAKER CASSEIVER CONTROLLER NSX–SZ35 CX–NSZ35 SX–WNSZ35 RC–ZAS02 • If requiring information about the CD mechanism, see Service Manual of AZG-1, (S/M Code No.

  • Page 2: Specifications

    SPECIFICATIONS Main unit CX-NSZ35 Compact disc player section FM Tuner section Laser Semiconductor laser (λ =780 nm) Tuning range 87.5 MHz to 108 MHz D/A converter 1 bit dual Usable sensitivity (IHF) 16.8 dBf Signal-to-noise ratio 85 dB (1 kHz, 0 dB) Antenna terminals 75 ohms (unbalanced) Harmonic distortion...

  • Page 3: Protection Of Eyes From Laser Beam During Servicing

    PROTECTION OF EYES FROM LASER BEAM DURING SERVICING CAUTION This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing. Use of controls or adjustments or performance of proce- dures other than those specified herin may result in WARNING!! hazardous radiation exposure.

  • Page 4: Note On Before Starting Repair

    NOTE ON BEFORE STARTING REPAIR 1. Forced discharge of electrolytic capacitor of power supply block When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across the electrolytic capacitors (C101, 102) even though AC power cord is removed.
  • Page 5 In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not. 2-2. Regarding reset There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.

  • Page 6: Electrical Main Parts List

    ELECTRICAL MAIN PARTS LIST REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 87-010-430-080 CAP, ELECT 100-63 87-010-263-080 CAP, ELECT 100-10V 87-A21-396-010 IC,STK490-040 87-010-197-080 CAP, CHIP 0.01-25 87-A21-419-040 C-IC,NJM14558MD-TE2 87-010-260-080 CAP, ELECT 47-25V 87-A21-401-040 C-IC,M61503FP 87-010-379-080 CAP, ELECT 22-16V 87-A21-560-010 IC,LA1844L-A 8A-NF9-604-010...
  • Page 7 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C318 87-010-546-080 CAP, ELECT 0.33-50V C780 87-010-971-080 C-CAP,S 4700P-50 B J C326 87-010-198-080 CAP, CHIP 0.022-25 C782 87-010-197-080 CAP, CHIP 0.01-25 C327 87-012-368-080 C-CAP,S 0.1-50 F C783 87-010-197-080 CAP, CHIP 0.01-25 C360 87-010-401-080...
  • Page 8 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C993 87-010-178-080 CHIP CAP,1000P-50 C803 87-010-402-040 CAP,E 2.2-50 SME C995 87-010-178-080 CHIP CAP,1000P-50 C804 87-010-402-040 CAP,E 2.2-50 SME C997 87-010-196-080 CHIP CAPACITOR,0.1-25 C805 87-010-196-080 CHIP CAPACITOR,0.1-25 C998 87-010-260-080 CAP, ELECT 47-25V C806 87-010-196-080...

  • Page 9: Chip Resistor Part Code

    REF. NO. PART NO. KANRI DESCRIPTION S371 87-A91-632-010 SW,RTRY XRE012103PVB25FINB 1-2 PT C.B 87-010-387-080 CAP,E 470-25 SME 87-A11-148-080 CAP,TC U 0.1-50 Z F C184 87-010-403-080 CAP,E 3.3-50 M 11L SME 87-A61-122-010 CONN,11P V TID-A 8A-NFK-617-010 PT,ANF-19 EZ 8A-NF8-662-010 PT,SUB ANF-8 (E) 87-A91-418-010 RELAY,AC12V G5PA-1-M 87-A60-317-010...

  • Page 10: Transistor Illustration

    TRANSISTOR ILLUSTRATION E C B E C B E C B B C E CD1585 2SA1981 DTC114ES 2SB1370 CSA952 2SC5343 KTC3199 CSC4115 KTA1266 KTC3198 S D G 2SJ460 2SA1235 CSD1306 2SK2158 2SK360 2SK2541 2SC2714 KRC102S 2SJ461-T1 2SC3052 KRC104S CMBT5401 RT1P141C CMBT5551 RT1P144C –...

  • Page 11: Pin Connection

    FL (HNA–10SS12) GRID ASSIGNMENT / ANODE CONNECTION / PIN CONNECTION GRID ASSIGNMENT ANODE CONNECTION PIN CONNECTION – 11 –...

  • Page 12: Wiring - 1 (Main)

    WIRING – 1 (MAIN) – 12 –...
  • Page 13 SCHEMATIC DIAGRAM – 1 (MAIN : 1 / 2 <FUNCTION / AMPLIFIER SECTION>) – 13 –...
  • Page 14 SCHEMATIC DIAGRAM – 2 (MAIN : 2 / 2 <TUNER SECTION>) – 14 –...

  • Page 15: Wiring - 2 (Front)

    WIRING – 2 (FRONT) – 15 –...

  • Page 16: Schematic Diagram - 3 (Front / Deck)

    SCHEMATIC DIAGRAM – 3 (FRONT / DECK) – 16 –...
  • Page 17 WIRING – 3 (PT) – 17 –...

  • Page 18: Schematic Diagram - 4 (Pt)

    SCHEMATIC DIAGRAM – 4 (PT) – 18 –...

  • Page 19: Wiring - 4 (Deck)

    WIRING – 4 (DECK) FROM B FRONT C. B CN104 FFC104 D DECK C . B 1 3 5 7 9 11 2 4 6 8 10 – 19 –...

  • Page 20: Ic Block Diagram

    IC BLOCK DIAGRAM – 20 –...
  • Page 21 IC DESCRIPTION µ PD780226GF-015-3BA Pin No. Pin Name Description O-MOTOR DECK MOTOR ON/OFF output. O-SOL1 DECK1 solenoid output. O-SOL2 DECK2 solenoid output. – Not connected. – Not connected. O-SET_LED SET LED ON/OFF output. O-CLEAR_LED CLEAR LED ON/OFF output. O-PRESET_LED PRESET LED ON/OFF output. O-DOWN_LED DOWN LED ON/OFF output.
  • Page 22 Pin No. Pin Name Description I-HOLD Power failure detected input. I-CDSW CD mecha switch input. I-SPEANA_L A/D L-input for spectrum analyser level display. I-SPEANA_R A/D R-input for spectrum analyser level display. I-KEY1 Key1 input. I-KEY2 Key2 input. I-KEY3 Key3 input. I-TU_SIG Tuner signal input.
  • Page 23 IC, LC72131D Pin No. Pin Name Description X-IN A crystal oscillator (4.5MHz) is connected between these pins. X-OUT – Not connected. To enable the IC. Active "H". Digital data input from CPU (µPD780226GF-015-3BA) when relevant key is operated. Active "H". To clock in the data DI.
  • Page 24 ADJUSTMENT – 1 <TUNER / FRONT> <TUNER SECTION > 1. Clock frequency Check 9. DC Balance / Mono Distortion Adjustment Settings : • Test point : TP2 (CLK) Settings : • Test point : TP3, TP4 (DC BAL) Method : Set to MW 1602kHz and check that the test point is •...
  • Page 25 ADJUSTMENT – 2 <DECK> < DECK SECTION > 1. Tape Speed Adjustment (DECK 2) 5. REC/PB Frequency Response Adjustment (DECK 2) Settings : • Test tape : TTA–100 Settings : • Test tape : TTA–602 • Test point : TP8 (Lch), TP9 (Rch) •...

  • Page 26: Mechanical Exploded View

    MECHANICAL EXPLODED VIEW 1 / 1 AZG-1 ZD3RDM WIRE,BINDER FL901 HT-SINK PLATE,SHLD PT 2T CHAS,MAIN ZZM-3 PR1NM PLATE,EARTH MECH – 26 –...

  • Page 27: Mechanical Parts List

    GUIDE,FL (*) 5 8A-NF8-207-010 SPR-T,EJECT 1 30 87-NF4-216-010 HLDR,LOCK 1 6 8A-NF8-208-010 SPR-T,EJECT 2 31 86-NF9-224-010 SPR-C,LOCK 7 87-CE3-023-010 BADGE,AIWA 30N SILV 32 82-NF5-229-010 PLATE,LOCK 8 8A-NF9-016-010 KNOB,RTRY VOL 33 87-NF4-217-110 HLDR,LOCK 2 9 8A-NF8-209-010 OIL-DMPR,120 34 8A-NF8-206-010 HLDR,PWB M...

  • Page 28: Tape Mechanism Exploded View

    TAPE MECHANISM EXPLODED VIEW 1 / 1 TERMINAL, TERMINAL,LB1 IC, EW732 IC, EW732 – 28 –...

  • Page 29: Tape Mechanism Parts List

    TAPE MECHANISM PARTS LIST 1 / 1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 8Z-ZM3-227-010 BELT,MAIN M3 8Z-ZM3-233-010 SPR-T,BRG M3 8Z-ZM3-235-010 BELT,MAIN L 84-ZM2-227-310 SPR-C,AZIMUTH 8Z-ZM1-235-010 PULLEY,MOT 87-A90-403-110 HEAD,RPH MS15R 87-045-347-010 MOT,SHU2L 70 87-A90-404-010 HEAD,EH LE15B 8Z-ZM1-232-010 GEAR,IDL FF/REW 8Z-ZM3-239-010...
  • Page 30 SPEAKER DISASSEMBLY INSTRUCTIONS Type.1 Type.4 TOOLS Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Remove the screws of each speaker 1 Plastic head hammer unit and then remove the speaker units. 2 (() flat head screwdriver 3 Cut chisel How to Remove the PANEL, FR Type.2...

  • Page 31: Speaker Parts List

    SPKR,W 160 4 8Z-NSY-604-010 SPKR,M 100 5 8A-NS9-610-010 SPKR,CERAMIC 6 88-NS5-610-010 CORD,SPKR 7 88-NS5-611-010 CORD,SPKR B/L 8 8A-NSJ-006-010 BADGE,AIWA S35 ACCESSORIES / PACKAGE LIST REF. NO. PART NO. KANRI DESCRIPTION 1 8A-NFK-904-010 IB,G (E)M -SZ35 2 87-006-225-010 AM-LOOP ANT NC2...
  • Page 32 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 9420025 0251431 Printed in Singapore...
