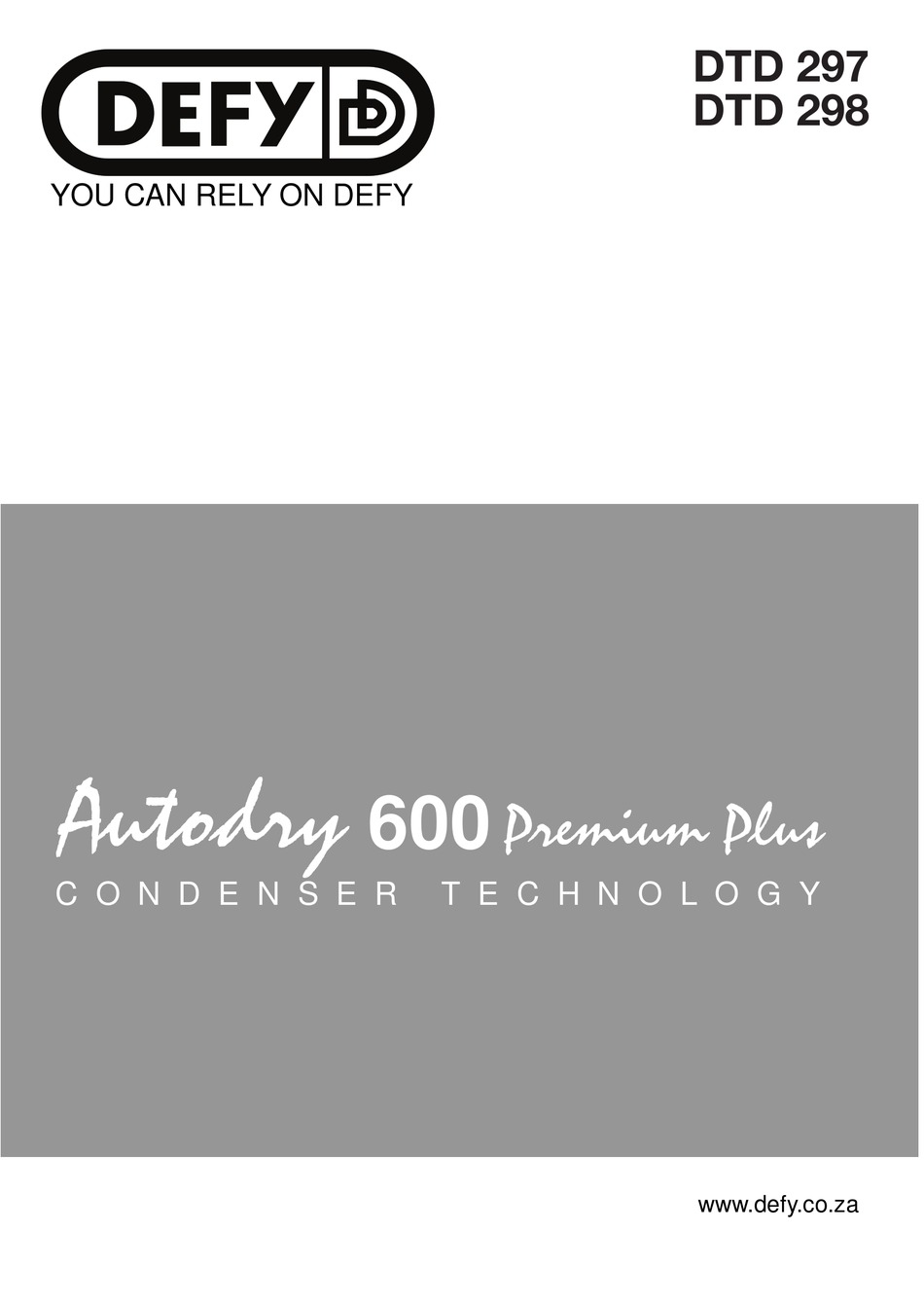

- Page 1 DTD 297 DTD 297 DTD 298 DTD 298 YOU CAN RELY ON DEFY C O N D E N S E R T E C H N O L O G Y www.defy.co.za...
-
Page 2: Important Safety Information
Please read this manual first! Dear Customer, We hope that your product which has been manufactured in modern facilities and passed through a strict quality control procedure will give you the best results. Therefore, we advise you to read through this manual carefully before using your product and keep it for future reference. -
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Your Dryer 6 Quick instructions for daily use Overview 7 Maintenance and cleaning 18 2 Important Safety Instructions 5 Cover filter 3 Installation Sensor (models equipped with a sensor) Appropriate installation location Water tank (Products equipped with a Under Counter Installation condenser);... -
Page 4: Your Dryer
Overview Figure 1 Type label Condenser and water tank cover Control Panel Adjustable Feet Lint filter Water tank Power Cord Specifications of this appliance may change without notice to improve the quality of the product. Figures in this manual are schematic and may not match your product exactly. Values stated on the machine labels or in the documentation accompanying it are obtained in laboratory in accordance with the relevant standards. -
Page 5: Important Safety Instructions
Important Safety Instructions in accordance with all local codes and ordinances. WARNING: To reduce the risk of fire, electric shock, or injury to persons WARNING: Improper connection of when using your appliance, follow basic the equipment-grounding conductor can precautions including the following: result in a risk of electric shock. - Page 6 • Items such as foam rubber (latex foam), WARNING: Never stop tumble dryer shower caps, waterproof textiles, rubber before the end of the drying cycle unless backed articles and clothes or pillows all items are quickly removed and spread fitted with foam rubber pads should not out so that the heat is dissipated.
-
Page 7: Installation
Installation Appropriate installation Do not use any tools to loosen the adjustable feet. Otherwise, they can be location damaged. • Install your machine in environments which Never unscrew the adjustable feet from have no risk of freezing and in a stable their housings. and level position. • Do not place your machine on a long pile 2 plastic pieces supplied along with the rug or on similar surfaces. -
Page 8: Connection To Water Drain (Products Equipped With A Condenser)
number of elbows as not to hinder 3. The other end of the drain hose can be ventilation. connected directly to the wastewater To prevent water accumulation in the hose, drain or to the washbasin. The fitting make sure that it is not folded on the must always be secured in every type of floor. -
Page 9: Electrical Connection
Connecting the water drain hose for • The stated voltage must match with your models with the water tank at the bottom; mains voltage. • Connection via extension cords or multi- Connection pipe to water drain is at the bottom rear of your machine. plugs should not be made. 1. Remove the bracket and the rubber cap. • The main fuse and switches must have a 2. Attach the drain hose and replace the contact distance of minimum 3 mm. -
Page 10: Initial Preparations For Drying
Initial preparations for drying Garments suitable for drying in • Overly wet laundry or laundry with dripping water must not be put into the the machine machine. Always follow the advice on the garment labels. With this dryer, dry only the laundry Preparing clothes to be dried having a label stating that they are suitable for •... -
Page 11: Loading Door
Following weights are given as examples. Loading door • Open the loading door. Approximate Home articles • Place laundry items loosely into the weights (gr) machine. Cotton quit covers (double) 1500 • Push the loading door to close. Ensure that no items are caught in the door. Cotton quit covers (single) 1000 Bed sheets (double) Bed sheets (single) Large tablecloths Small tablecloths Tea napkins... -
Page 12: Selecting A Program And Operating Your Machine
Selecting a Program and Operating Your Machine Control panel Figure 2 8. On/Off button 14. Water tank full warning LED * 9. Program selection knob 15. Time Delay Button * 10. Start/Pause/Cancel button * According to your machine’s model 11. Cancel Audio Warning 12. Program follow-up indicator 13. Filter cleaning warning LED Extra dry Dry at high temperature Turning the machine on only for cotton laundry. -
Page 13: Technical Specifications
Special programs Always select the highest temperature For special cases, there are also extra required for drying. High temperature will programs available: ensure energy and time saving. Additional programs may differ according For further program details, see, to the model of your machine. “Program Selection Table”... -
Page 14: Program Selection And Consumption Table
Program selection and consumption table Program table Approximate Capacity Drying time Spin speed in washing Programs amount of (kg) (minutes) machine (rpm) remaining humidity Cottons / Coloreds 1200-1000 % 60 900-800 % 70 Ready to Wear 1200-1000 % 60 80-60 900-800 % 70 100-80... -
Page 15: Auxiliary Function
Auxiliary function reaches “ Ready to wear “ step and remains Cancel Audio Warning illuminated until the next step. Your machine will send out an audio warning “Final / Anti-creasing”: when the program comes to an end. If you - Illuminates when the program comes to an do not want to hear this buzzing, you need end and anti-creasing function is activated. -
Page 16: Ending The Program Through Canceling
interruption due to the pressing of keys while End of program the program is on. The loading door and all The “End/Anti-creasing”, “Filter cleaning” and keys except the “On/Off” key on the panel “Water tank” warning LEDs on the program follow are deactivated when the child-proof lock is up indicator will light up when the program comes active. -
Page 17: Quick Instructions For Daily Use
Quick instructions for daily use Preparation and starting After the program is finished 1. Press the “On/Off” button. The “End/Anti-creasing” and “Filter cleaning” 2. Place the laundry in the machine. warning LEDs as well as "Water tank" warning Select the program. LED in some models on the program follow Close the loading door. -
Page 18: Maintenance And Cleaning
Maintenance and cleaning Cover filter Never use solvents, cleaning agents or substances alike when cleaning as these Lint and fibres released from the laundry to might cause fire and explosion! the air during the drying cycle are collected in the "Cover Filter". Water tank (Products equipped Such fibre and lint are generally formed during wearing and washing. -
Page 19: For The Condenser (Products Equipped With A Condenser)
For the condenser (products Replace the condenser with the side labeled "Top" facing upwards. Lock the 4 equipped with a condenser); condenser locks. Make sure that the red Hot and humid air in the condenser is cooled lock on the upper right corner is engaged with the cold air from the room. Thus, the humid securely. -
Page 20: Solution Suggestions For Problems
Solution suggestions for problems Problem Cause Explanation / Suggestion Drying process Cover filter and filter drawer might have takes too much * Clean the cover filter and Filter drawer. not been cleaned. time. * Cover filter and filter drawer might have Laundry come out not been cleaned. - Page 23 Service Centres If you have followed the instructions and still have a problem, contact the nearest Defy Service Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it....
- Page 24 This certificate is issued by DEFY APPLIANCES (PTY) LIMITED, manufacturers and distributors of Defy, Ocean and Franke products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
