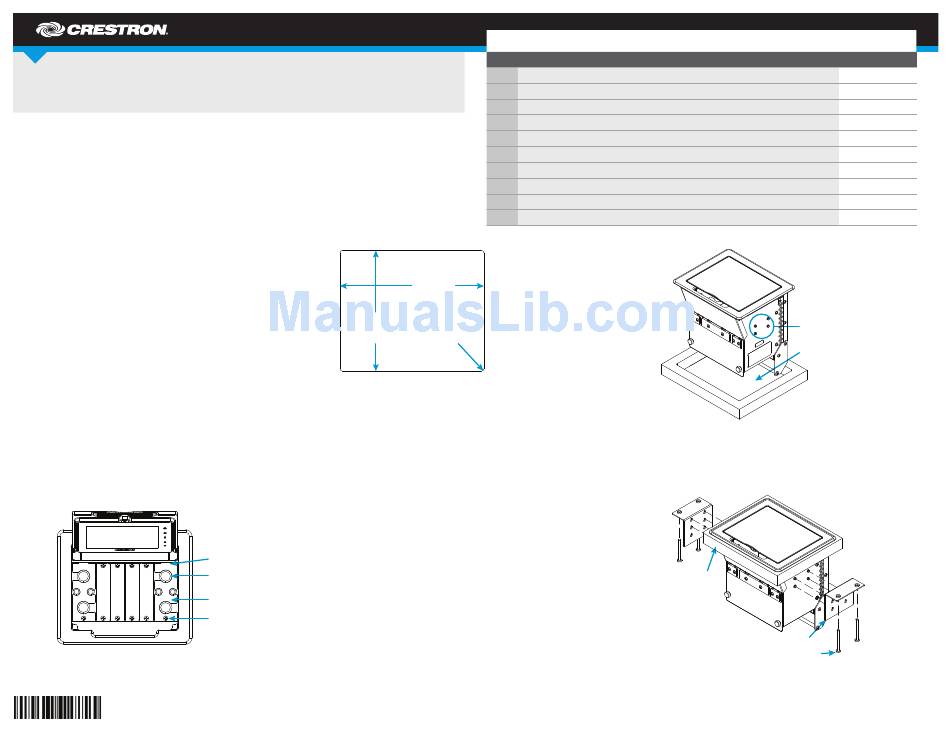

DO GUIDE
FT-TSC600
FlipTop™ Touch Screen Control System
DO Install the Device
Installing the Bushings
The Crestron FT-TSC600 ships with two cable management
®
plates preinstalled. These provide a pullout cable solution for
the AUD OUT (audio output), COMPUTER, and LAN cables. A
6 foot (1.8 meter) USB type A to type B cable is included for
the COMPUTER connection. Cables are looped through the
cable management plates.
The included bushings must be installed before mounting the
FT-TSC600 into a surface. For a neat appearance, any unused
openings can be filled using the included hole plugs. The only
tool required to install the bushings is a Phillips screwdriver.
1. Remove the two cable management plates and retain the
two 06-32 x 1/4" screws.
2. Place the bushings on the cables (eight bushings
supplied).
3. Thread the cables through the appropriate slots in each
cable management plate.
4. Snap the bushings into the cable management plate
slots.
5. Feed all excess cable through the bushings.
6. Attach each cable management plate by sliding the
dovetail into the slot shown below, dropping the front
of the cable management plate into place, and then
securing the cable management plate with the
06-32 x 1/4" screw from step 1.
The cable management
plate dovetail inserts here.
Bushing
Cable Management Plates (2)
Screws (2) 06-32 x 1/4"
DO
QTY PRODUCT
2
4
4
4
Mounting into a Surface
4
The FT-TSC600 is designed
4
to mount into a horizontal
1
surface, such as a desktop,
lectern, or podium. The
1
following diagram illustrates
1
the required cutout dimensions
1
to accommodate the
FT-TSC600.
7 1/2"
(190 mm)
Maximum
6 1/4"
Radius
(159 mm)
1/8"
(4 mm)
NOTE: Before inserting the FT-TSC600 into the mounting
hole, ensure that all require cables have been installed.
The only tools required are a Phillips screwdriver and a #10
Allen wrench. To mount the FT-TSC600, use the following
procedure:
1. Position the FT-TSC600 in the mounting hole.
2. Install the four included 10-32 x 2" socket screws in the
metal mounting plates (two screws per plate).
3. Slide the moutning plates over the studs on each side of
the FT-TSC600.
Check the Box
Mounting Plates
Screws, 10-32 x 2", Socket
Small Hole Plugs
Large Hole Plugs
Small Bushings
Large Bushings
Connector, 3-Pin
Connector, 4-Pin
Cable, USB 2.0, A-B, 6' (1.8 m)
Cutout Template
4. Turn the four 10-32 x 2" socket screws equally until they
contact the underside of the mounting surface.
NOTE: Do not overtighten the screws because this may
damage the surface or the unit.
Mounting Surface
PART NUM.
2036985
2037109
2036647
2036649
2009522
2010496
2003575
2003576
2014966
4519221
Studs for the
Mounting Plate
Surface Cutout
Mounting Plates
Screws (4) #10-32 x 2"
