AM604
Large format mid/high horn
features
!
60º x 40º large format horn
!
High SPL mid/high install system
!
Lightweight composite construction
!
Port assisted, large format 10" (250mm) mid horn
!
1.4" (35mm) exit high frequency horn
!
Constant directivity in both horizontal and vertical planes
applications
!
Sports Stadia
!
Arenas
!
Exhibition halls
The AM604 is an extended range mid/high system which has
been developed specifically for large scale install applications
such as arenas and stadia. It can be used in either a bi-amplified
or optional 2-way passive configuration. As a stand-alone
system it provides exceptional intelligibility over its uniform 60˚
x 40˚ coverage pattern. For full-range music reproduction, it
can also be used in conjunction with the AS118 low-frequency
loudspeaker.

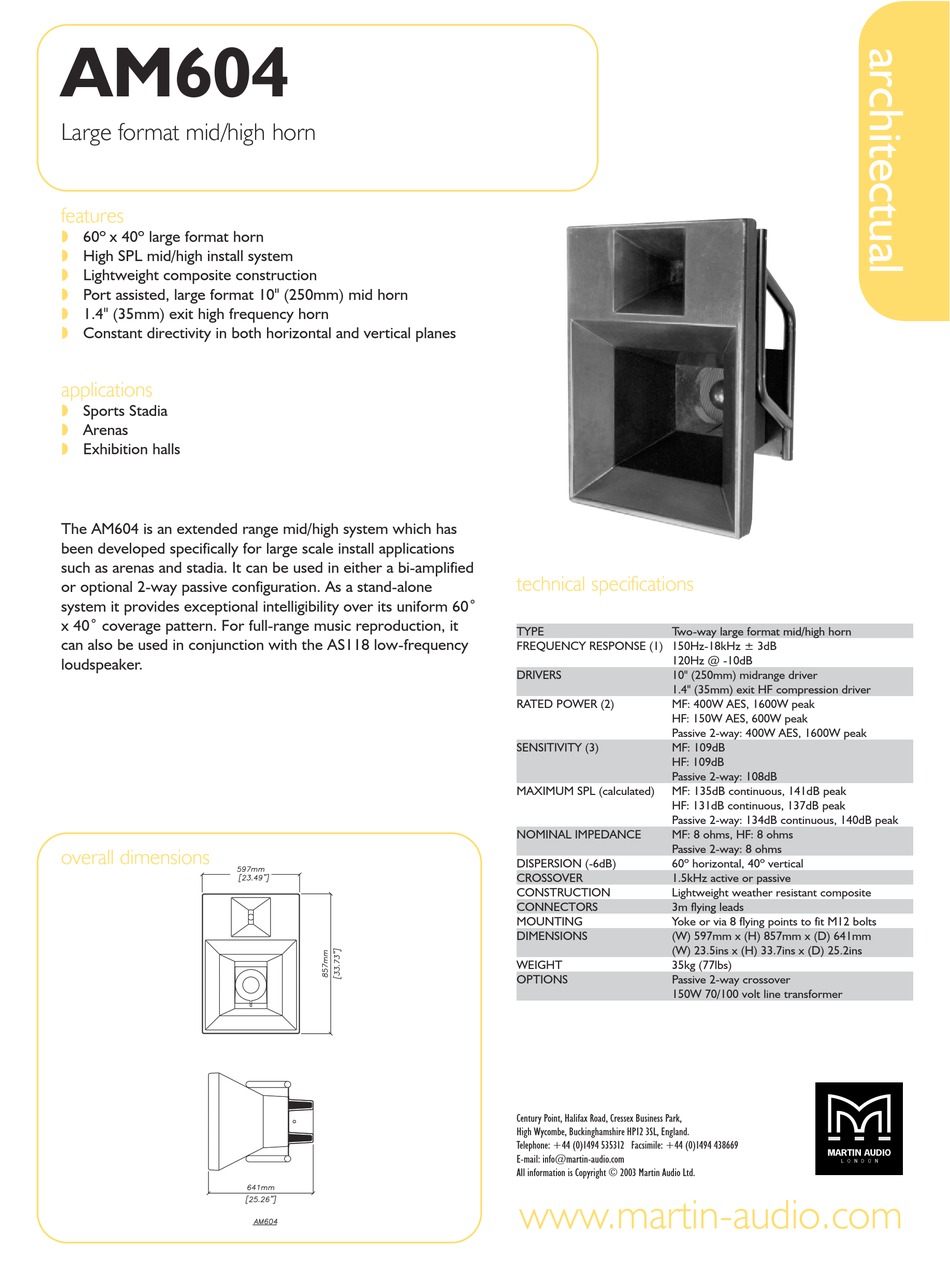

overall dimensions
technical specifications
TYPE
Two-way large format mid/high horn
FREQUENCY RESPONSE (1) 150Hz-18kHz ± 3dB
120Hz @ -10dB
DRIVERS
10" (250mm) midrange driver
1.4" (35mm) exit HF compression driver
RATED POWER (2)
MF: 400W AES, 1600W peak
HF: 150W AES, 600W peak
Passive 2-way: 400W AES, 1600W peak
SENSITIVITY (3)
MF: 109dB
HF: 109dB
Passive 2-way: 108dB
MAXIMUM SPL (calculated)
MF: 135dB continuous, 141dB peak
HF: 131dB continuous, 137dB peak
Passive 2-way: 134dB continuous, 140dB peak
NOMINAL IMPEDANCE
MF: 8 ohms, HF: 8 ohms
Passive 2-way: 8 ohms
DISPERSION (-6dB)
60º horizontal, 40º vertical
CROSSOVER
1.5kHz active or passive
CONSTRUCTION
Lightweight weather resistant composite
CONNECTORS
3m flying leads
MOUNTING
Yoke or via 8 flying points to fit M12 bolts
DIMENSIONS
(W) 597mm x (H) 857mm x (D) 641mm
(W) 23.5ins x (H) 33.7ins x (D) 25.2ins
WEIGHT
35kg (77lbs)
OPTIONS
Passive 2-way crossover
150W 70/100 volt line transformer
