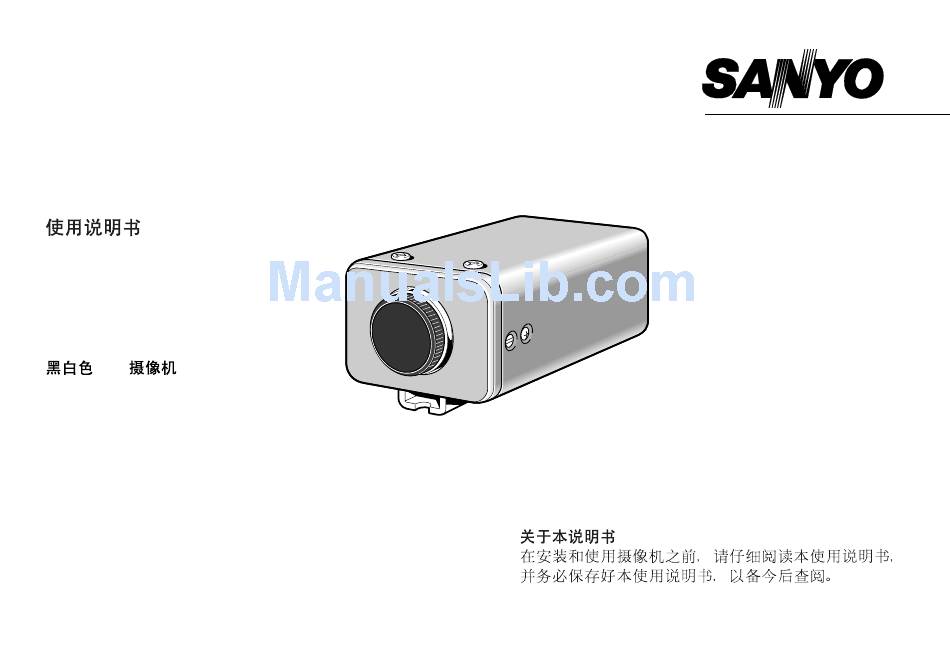

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
B/W CCD Camera
CCD-Schwarzweißkamera
Caméra CCD Noir et Blanc
CCD
About this manual
Before installing and using the camera, please read this
manual carefully. Be sure to keep it handy for later reference.
Über diese Bedienungsanleitung
Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der
Kamera zuerst diese Bedienungsanleitung sorgfältig durch und
bewahren Sie sie zum späteren Nachschlagen auf.
A propos de ce manuel
Avant d'installer et d'utiliser la caméra, veuillez lire ce
manuel attentivement. Gardez-le à portée de main
pour toute référence ultérieure.
VCB-3400P

Advertisement

Table of Contents
loading

Related Manuals for Sanyo vcb-3400p

Summary of Contents for Sanyo vcb-3400p

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL VCB-3400P BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS B/W CCD Camera CCD-Schwarzweißkamera Caméra CCD Noir et Blanc About this manual A propos de ce manuel Before installing and using the camera, please read this Avant d’installer et d’utiliser la caméra, veuillez lire ce manual carefully.

  • Page 2: Table Of Contents

    Depending on the conditions of use, installation and environment, FEATURES please be sure to make the appropriate settings and adjustments. If you need help with installation and/or settings, please consult your dealer. • Built-in interline transfer method 1/3" CCD, approx. 320,000 CONTENTS picture elements •...

  • Page 3: Precautions

    Disconnect the power greasy smoke or steam, where the dampness may get too high, or cord immediately, and consult your dealer (or a Sanyo Authorized where there is a lot of dust.

  • Page 4: Parts Names

    PARTS NAMES Power indicator (POWER) Comes on when the power to the camera is on. Video output connector (VIDEO OUT: BNC type) Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector. AC power cord External sync composite video signal input connector (VBS IN: BNC type) Connect to this connector the synchronizing signal output from a synchronizing signal device or the composite...
  • Page 5 PARTS NAMES Lens mount cap The cap is installed to protect the lens mount section. Remove the lens mount cap before installing a lens (sold separately). Flange-back adjustment screw (FLANGE BACK ADJ.) Flange-back lock screw (FLANGE BACK LOCK) Camera installation bracket The bracket can be fixed at the top or bottom of the camera.
  • Page 6 ALC and LEVEL volume level controls are available on the lens for iris adjustments. (Set the A.I. LENS switch to the VIDEO position.) Compatible auto-iris lenses 1/3 inch Sanyo DC type lens VIDEO type lens VCL-CS8LY: Standard angle, f= 8 mm...

  • Page 7: Mounting The Lens

    MOUNTING THE LENS Please use a DC type auto-iris lens (sold separately). Checking the lens mount Do not use a lens if length “L” is more than 7 mm. If not, that may damage the camera and prevent proper installation. Remove the lens mount cap from the camera.
  • Page 8 MOUNTING THE LENS Rewiring the lens cable in the lens iris plug Prepare the lens cable. Cut the cable at the plug, then remove approx. 8 mm of the cable sheath and strip about 2 mm from each wire. Install the lens iris plug. Solder the cable to the pins following the correct pin layout (refer to the table and illustrations), then close the plug cover.

  • Page 9: Connections

    CONNECTIONS Basic connection for monitoring or recording The peripheral devices (VCR, monitor, lens, etc.) and cables are sold separately. Make the video signal connection between the camera and the monitor or time lapse VCR. When using this unit, the supplied clamping core (A) must be installed on the power cord, in order to prevent electromagnetic interference to the other devices connected.

  • Page 10: Settings

    SETTINGS Camera setup section Electronic iris function setting Use a manual or fixed iris lens and set the lens aperture to the shortest F stop. Set the EI switch to ON position. VR301 Note: SYNC Please refer to the specifications for dynamic VIDEO A.

  • Page 11: Backlight Compensation Setting

    SETTINGS Lens iris adjustment Backlight compensation setting If using a DC type auto-iris lens, you will need to set the LEVEL Use an auto-iris lens and set the BLC switch to the ON position, to (VR301) volume when shooting in the conditions described below. engage the backlight compensation function.

  • Page 12: Troubleshooting

    If it still does not perform When using a camera switcher to connect 2 cameras or more to one correctly, please consult your dealer or a Sanyo Authorized Service monitor, there may be a vertical roll of the images when switched. In Centre.

  • Page 13: Specifications

    However, in the event of a Humidity: less than 90% (no condensation) problem, the owner is advised not to attempt to make repairs or open the cabinet. Servicing should always be referred to your dealer or Sanyo Authorized Service Centre. English...
  • Page 14 SANYO Electric Co, Ltd 1AC6P1P2279-- Printed in Japan L73T5/XE(0300KP-NI)
