3-Stage Twist Lock Ultrafiltration Purifier
Model TL3
Package Contents
(A) Triple Stage Head
•
(B) Twist-Lock Cartridges
•
(B1) Two Chlorine, Taste, Odor, Lead
•
and Cyst. Model: 2802110-00
(B2) One Hollow Fiber Membrane
•
Model: 2802140-00
(C) Installation Kit
•

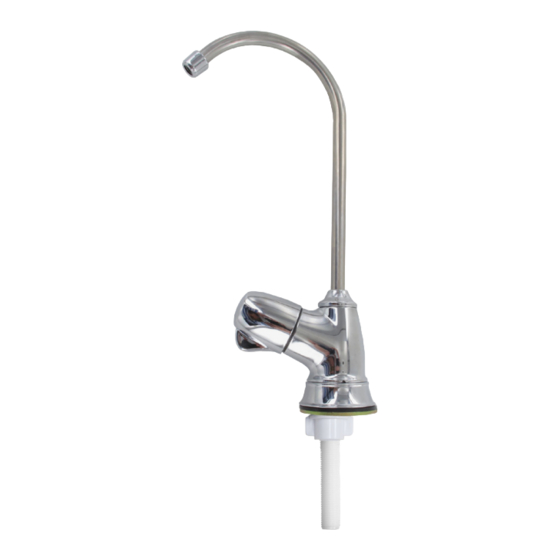

(C1) Faucet
•
(C2) 1/4" Tubing 6 ft.
•
•
(C3) Kitchen Faucet Adapter
•
(C4) Faucet Connector
•
(C4) Insert
•
(C5) Ferrule
(C6) Compression Nut
•
Required Tools and Materials
•
Two approximate 7/8" to 1" Philips Screw
•
Philips Screwdriver
1/8" Drill Bit
•
Center Punch
•
Adjustable Wrench
•
Utility Knife
•
File
•
•
Tape Measure
•
Safety Glasses
Masking Tape
•
Newspaper or Towels
•
Pencil
•
Bucket or Pan
•
Optional Materials
Plumber's Tape
•
Hacksaw
•
Drill with 1/4" & 9/16", or 5/8 Drill Bits
•
Hollow-Wall Anchor Bolts or Toggle Bolts
•
C1
1
A
B1
B1
REV 2013.05
B2
C3
Advertisement
Related Manuals for Neo-Pure TL3
Summary of Contents for Neo-Pure TL3
- Page 1 3-Stage Twist Lock Ultrafiltration Purifier Model TL3 Package Contents (A) Triple Stage Head • (B) Twist-Lock Cartridges • (B1) Two Chlorine, Taste, Odor, Lead • and Cyst. Model: 2802110-00 (B2) One Hollow Fiber Membrane • Model: 2802140-00 (C) Installation Kit •...
-
Page 2: Installation Instructions
Locate the cold water pipe under your sink. Rigid pipes may require cutting in order to make adequate space to install the Kitchen Faucet Adaptor. Ensure you have all appropriate fasteners and adaptors to fit your plumbing. Neo-Pure 85 Commerce Center Greenville, SC 29615 864-284-1800... - Page 3 STEP 1 Mount Auxiliary Faucet Note: This faucet is designed to fit a 9/16” hole. Most standard sinks come with 1-3/8” or 1-1/2” diameter water sprayer holes that can be used to mount this faucet. If the pre-drilled holes cannot be used or are not in the desired position, a new hole must be drilled using either a 9/16”...
- Page 4 Select easily accessible area under the sink to mount the filter system. Note: Mount system to a solid cabinet wall or wall. If this is not an option, use toggle bolts or hollow-wall anchor bolts (not included) to secure the system to the surface. Note: Allow a minimum clearance of 4-6”...
- Page 5 STEP 6 Install Twist-Lock Filters Note: When viewing the system from the front, the Carbon Block cartridges should be positioned on the left and in the center. The Hollow Fiber Membrane should be positioned on the right. 1. Hold each cartridge with the label facing to the left slightly. The two nozzles on the top of each cartridge should be toward the back of the cartridge.
- Page 6 If there are leaks between on the faucet for filtered water and the 1/4” tubing connection: To release pressure, turn off the cold water shut-off valve to the filter system. Loosen and remove the compression nut on the faucet for filtered water stem. Check the tubing to ensure it is cut squarely.
