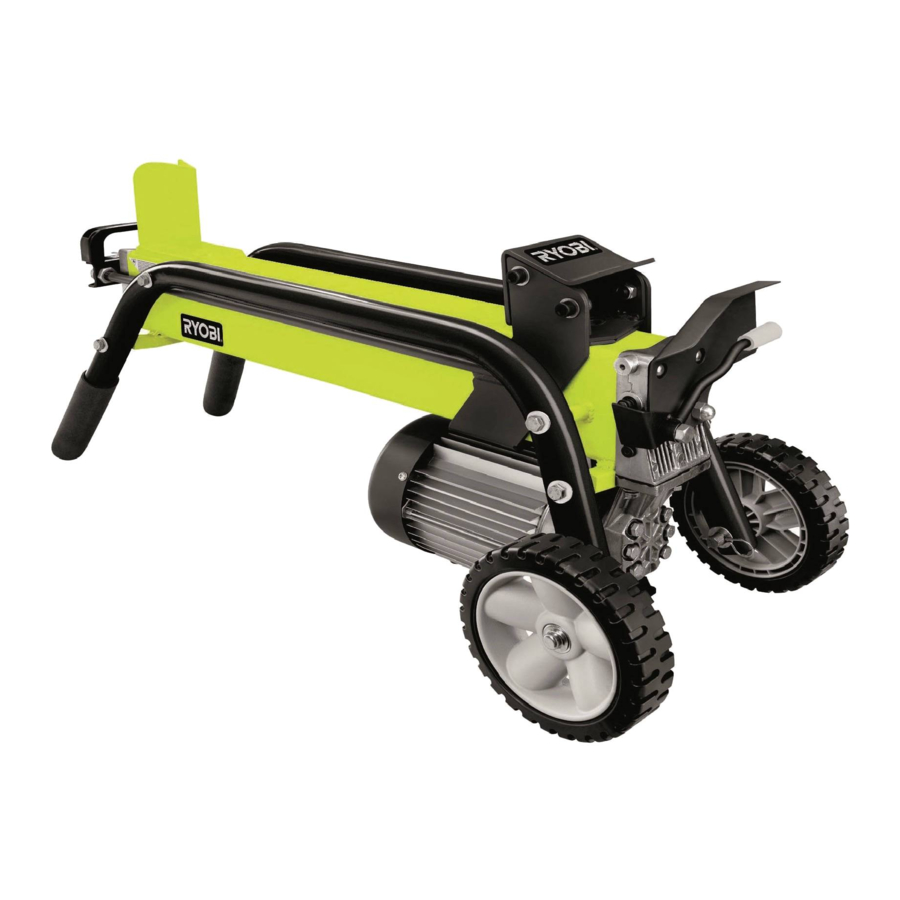

Ryobi RLS4A Original Instructions Manual

Electric log splitter
Hide thumbs Also See for RLS4A:

Advertisement

Quick Links

Download this manual
ORIGINAL INSTRUCTIONS
Electric log splitter
RLS4A
RLS5A

Advertisement

loading

Related Manuals for Ryobi RLS4A

Summary of Contents for Ryobi RLS4A

  • Page 1 ORIGINAL INSTRUCTIONS Electric log splitter RLS4A RLS5A...
  • Page 2 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.

  • Page 3: Safety Instructions

    Safety ■ never leave tool running unattended. Turn the power SafEty InStructIonS off. Do not leave tool until it comes to a complete stop. ■ never use in an explosive atmosphere. Normal WarnInG sparking of the motor could ignite fumes. read and understand all instructions.
  • Page 4 Safety SyMBol Operation Wet conditions alert Please read the instructions carefully Maintenance before starting the machine. Wear eye protection Safety alert Safety alert Wear gloves Unplug Wear safety footwear Plug in Keep bystanders away Keep hands away Information Waste electrical products should not be disposed of with household waste.
  • Page 5 Unpacking RLS4A...
  • Page 6 Unpacking RLS5A x 10...
  • Page 7 Getting started RLS5A...
  • Page 8 Getting started RLS4A...

  • Page 9: Getting Started

    Getting started 360˚-720˚...
  • Page 10 Getting started...
  • Page 15 Overview p.15 p.14 p.18 p.19 p.12...
  • Page 16 Operation 360˚-720˚ ≤ 20 cm ≤ 52 cm 10 cm ≤ ≤ 25 cm...
  • Page 17 Operation...
  • Page 18 Operation...
  • Page 19 Operation...
  • Page 20 Operation...
  • Page 21 Operation...

  • Page 22: Maintenance

    Maintenance...
  • Page 23 Maintenance 1 1 1...
  • Page 24 Maintenance...
  • Page 25 Maintenance...
  • Page 26 Maintenance...
  • Page 27 Maintenance 360˚-720˚ RLS5A RLS5A RLS5A RLS4A...

  • Page 28: Product Specifications

    SpEcIfIcatIonS Model RLS4A RLS5A Maximum hydraulic 16 Mpa 21 Mpa cylinder pressure Force 4 tons 5 tons Oil capacity 3.5 L 3.5 L Voltage 230 V ~ 50 Hz 230 V ~ 50 Hz Input power 1,500 W 1,500 W...

  • Page 29: Limited Warranty

    This warranty is valid only in the european union, australia and new zealand. Outside these areas, please contact your authorized ryobi dealer to determine if another warranty applies. authorISED SErvIcE cEntrE To find an authorised service centre near you, visit ryobitools.eu.

  • Page 30: Declaration Of Conformity

    Guaranteed Sound power level: 85 dB(A) Conformity assessment method to Annex V/ Directive 2000/14/EC Serial number: See product rating label year of construction: See product rating label rlS4a / rlS5a Machine: ElEctrIc loG SplIttEr Type: november 2011 Techtronic Product Development Ltd.

This manual is also suitable for:

Rls5a
