Summary of Contents for Sennheiser HS 2

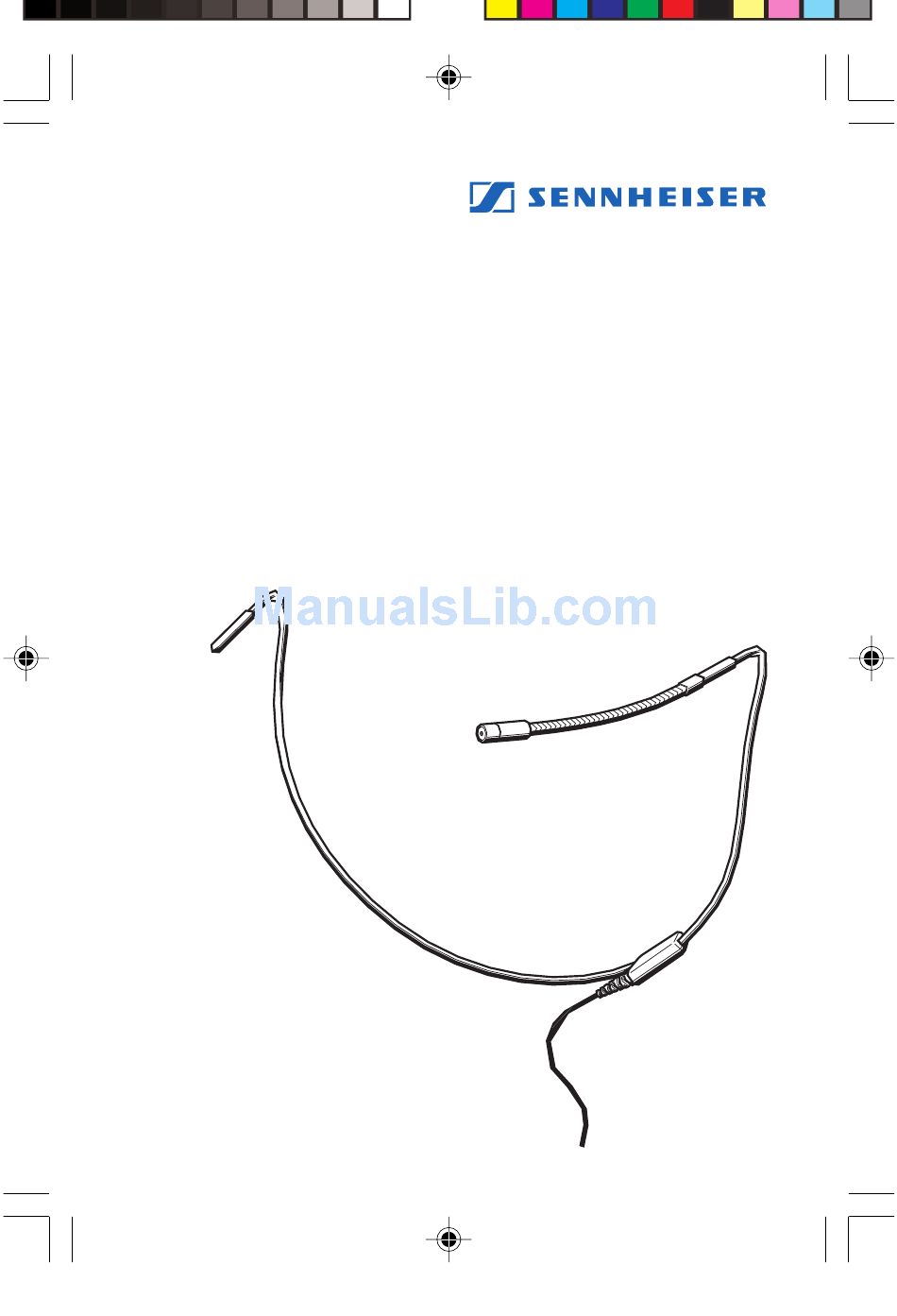

- Page 1 INSTRUCTIONS FOR USE HS 2 HS2_27_9_02 02.10.2002, 11:44 Uhr...
- Page 2 The HS 2 is a condenser omni-directional headmic fitted with a steel wire cable and a special connector. It fulfils the most stringent demands on sound quality and is extremely rugged. The HS 2 is suitable for both vocal and speech applications in all areas of live work.
- Page 3 Adapting the treble response to different requirements Two caps with different lengths are available as accessories. With these caps you can influence the treble response. Slide the cap onto the microphone head until it locks into place. Please refer to the frequency responses curves on page 38. Short cap: MZC2-1 Cat.
- Page 4 Windshields Wind noise impairs the quality of outdoor recording and close-miking. The MZW 2 and MZW 02 windshields considerably reduce the wind noise. Please first use the MZW 2 windshield. This windshield reduces the wind noise by approx. 20 dB. MZW 2 You may further reduce the wind noise by 10 dB by using the additional...
-
Page 5: Technical Data
Technical data HS 2 HS 2-1 Pick-up pattern omni-directional omni-directional Frequency response 20-20000 Hz 20-20000 Hz ± 3 dB ± 3 dB Sensitivity 5 mV / Pa 5 mV / Pa ± 3 dB ± 3 dB (free field, no load) (1kHz) 1000 Ω... - Page 6 HS2_27_9_02 02.10.2002, 11:44 Uhr...
- Page 7 Frequenzgang des Mikrofons Mikrofonentfernung zum Mundwinkel: 3 cm ohne Aufsteckkappe mit MZC2-1 mit MZC2-2 mit MZW 2 mit MZW 2 und MZW 02 Frequency response curves of the microphone Microphone placed in the corner of the mouth, distance to the mouth 3 cm capsule only with MZC2-1 with MZC2-2...
- Page 8 Konformitätserklärung Sennheiser electronic GmbH & Co. KG erklären, daß dieses Gerät die anwendbaren CE-Normen und Vorschriften erfüllt. Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations. Certification Sennheiser electronic GmbH & Co. KG déclarons que cet appareil est en conformité...
- Page 9 Aktuelle Informationen zu Sennheiser-Produkten erhalten Sie auch im Internet unter „http://www.sennheiser.com“. Up to date information on Sennheiser products can also be found on the Internet at “http://www.sennheiser.com”. Vous trouverez également toutes les informations actuelles relatives aux produits Sennheiser sur Internet, sous “http://www.sennheiser.com“.
