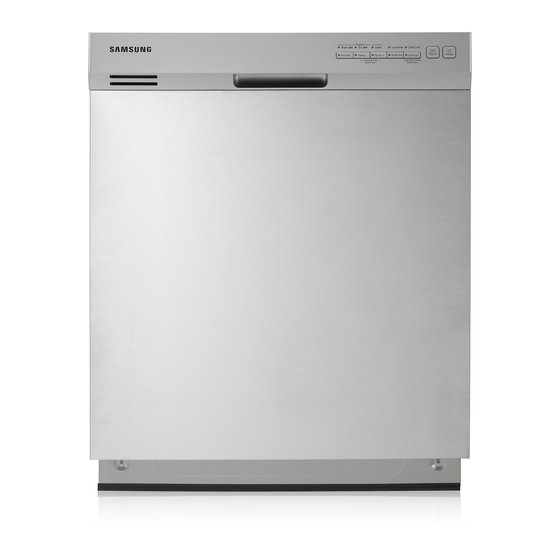

Samsung DW7933 Series User Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Dishwasher
  5. DW7933 Series
  6. User manual

Samsung DW7933 Series User Manual

Hide thumbs Also See for DW7933 Series:
Table of Contents

Advertisement

Quick Links

See also: Service Training , Installation Manual
DW7933LRASR-00141A-01_EN_20120514.indd 1
DW7933LRASR-00141A-01_EN_20120514.indd 1
Dishwasher
user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
DW7933 Series
2012-05-14
2012-05-14
4:46:15
4:46:15

Advertisement

Table of Contents
loading

Related Manuals for Samsung DW7933 Series

Summary of Contents for Samsung DW7933 Series

  • Page 1 DW7933 Series Dishwasher user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register DW7933LRASR-00141A-01_EN_20120514.indd 1 DW7933LRASR-00141A-01_EN_20120514.indd 1 2012-05-14 2012-05-14 4:46:15 4:46:15...
  • Page 2 Your new Samsung Dishwasher will change the way you feel about doing dishes. From its extra large capacity to its energy effi ciency, your new Samsung dishwasher has all the features to make your chores much less mundane.

  • Page 3: Safety Information

    It is your responsibility to use caution when installing, maintaining, and operating your dishwasher. Samsung will not be liable for damages resulting from improper use. IMPORTANT SAFETY INSTRUCTIONS...
  • Page 4 Safety information Do not operate the dishwasher unless all ENCLOSURE panels are properly in place. Do not tamper with the controls. Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher. To reduce the risk of injury, do not allow children to play in or on the dishwasher. To reduce the risk of fi...

  • Page 5: Before Using Your Dishwasher

    Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher. Disconnect the power cable (or disconnect the circuit breaker) before servicing your dishwasher. Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs and modifi...

  • Page 6: Table Of Contents

    Contents SETTING UP YOUR DISHWASHER Unpacking your dishwasher Checking parts Meeting installation requirements USING YOUR DISHWASHER Control panel Progress lights Display Cycle selector Basic guidelines Removing the plate support Adjusting the angle of the plate supports Adjusting the height of the upper rack Removing the upper rack Loading the lower rack Loading the upper rack...

  • Page 7: Setting Up Your Dishwasher

    CHECKING PARTS When your dishwasher has been unpacked, make sure you’ve received all the parts shown below. If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service at 1-800-SAMSUNG (726-7864)

  • Page 8: Meeting Installation Requirements

    Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at www.samsung.com. 8_ Setting up your dishwasher DW7933LRASR-00141A-01_EN_20120514.indd Sec3:8...

  • Page 9: Using Your Dishwasher

    Using your dishwasher CONTROL PANEL DW7933 Series Progress information (Wash, Dry, Clean) PROGRESS Each progress light corresponding to the current operation turns on to show LIGHT the progress of the cycle. Displays information (Low Rinse, Child Lock). DISPLAY The “Low Rinse” light turns on when you need to refi ll the rinse aid agent and the “Child Lock”...
  • Page 10 Using your dishwasher Close the dishwasher door, press the Power button, select the cycle and options you want, and then press the Start/Pause button to begin the cycle. START/PAUSE When you want to pause the dishwasher while it is running, press the Start/ Pause button and make sure to open the door slowly and carefully.

  • Page 11: Progress Lights

    PROGRESS LIGHTS DW7933 Series When the dishwasher is in a wash or rinse portion of a cycle, the “Wash” light WASH is illuminated. When the dishwasher is in a drying portion of a cycle, the “Dry” light is illuminated. After the dishwasher has completed all portions of a cycle, all other indicator lights are turned off and the “Clean”...

  • Page 12: Basic Guidelines

    Using your dishwasher BASIC GUIDELINES 1. Open the door and load your dishes (see page 16). Place dishes into the upper and lower racks. Remove any food remains from the dishes before placing them in the rack(s). After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes will interfere with them.
  • Page 13 When you want to load more dishes or pause the dishwasher while it is already running, press the Start/Pause button and make sure to open the door slowly and carefully as there is a possibility of CAUTION injury from the hot steam inside the dishwasher. (If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the cycle.) You should use rinse aids for better drying performance.

  • Page 14: Removing The Plate Support

    Using your dishwasher REMOVING THE PLATE SUPPORT In the lower rack, you can easily remove the plate support to make room for large items such as pots and pans. To remove the plate support, lift up the handles (A). To refi t the plate support, align it so it is in place, and then push down on the handles (A).

  • Page 15: Adjusting The Height Of The Upper Rack

    ADJUSTING THE HEIGHT OF THE UPPER RACK You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. Depending on where you set the upper rack height, the lower rack can accommodate plates up to 14 in.

  • Page 16: Loading The Lower Rack

    Using your dishwasher LOADING THE LOWER RACK Load cookware (pots, pans, etc.), up to 14 in. (36 cm) in diameter into the lower rack. The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates. Load your plates into the center column of the rack so their open sides face towards the right.

  • Page 17: Using The Cutlery Basket

    Loading the large items You can load large items such as pans and pots into the lower rack. Make sure pot handles and other items do not interfere with rotation of the nozzles. USING THE CUTLERY BASKET The cutlery basket consists of two compartments. You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent chipping and discoloration.

  • Page 18: Using The Dispenser

    Using your dishwasher USING THE DISPENSER Filling the detergent dispenser 1. Open the cover by pushing the cover latch downwards. Cover latch 2. Add the recommended amount of detergent to the main wash dispenser using the table below. 3. Close the dispenser cover. You will hear a ‘click’ when it is closed correctly.

  • Page 19: Filling The Rinse Aid Dispenser

    Filling the rinse aid dispenser Your dishwasher has been designed to use liquid rinse aid. Using a rinse aid greatly improves the drying performance after the fi nal rinse. 1. Turn the dispenser knob counterclockwise to open the cover. 2. Pour rinse aid into the opening until the indicator points to Avoid overfi...

  • Page 20: Cleaning And Maintaining Your Dishwasher

    Cleaning and maintaining your dishwasher Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. CLEANING THE EXTERIOR It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust.

  • Page 21: Storing Your Dishwasher

    Middle nozzle 1. Pull the upper rack towards the front and remove it. 2. Check whether the nozzle holes are clogged by food particles. 3. If cleaning is needed, remove the nozzle. 4. To remove the nozzle, unfasten and remove the nut, and then remove the nozzle.

  • Page 22: Cycles

    Cycles CYCLE CHART  : Basic,  : Flexible step) Pre- Pre- Last Rinse Water Time Cycle Main wash Rinse1 Rinse2 Rinse3 wash1 wash2 [Sanitize] [gal(ℓ)] (min)   3.9~7.2      Normal 110~135 120 ~ 138 ˚F 136 ˚F (58 ˚C) (14.8~27.2) (49 ~ 59 ˚C)

  • Page 23: Troubleshooting

    Troubleshooting CHECK THESE POINTS IF YOUR DISHWASHER… PROBLEM POSSIBLE CAUSE SOLUTION The door is not closed completely. Check if the door is latched and closed completely. No cycle is selected. Select a proper cycle. The power cable is not connected. Connect the power cable properly. Will not start.
  • Page 24 Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION The water supplied is soft and too Underload the dishwasher and use a rinse much detergent was used. aid to minimize this. Leaves glasses with a dim polish. Aluminum dishes were included in Remove the marks on the dishes using a the wash load.
  • Page 25 PROBLEM POSSIBLE CAUSE SOLUTION The nozzle hole is clogged with Clean the nozzle hole. food particles. Does not have a The nozzle is blocked by a dish or After placing the dishes into the racks, smoothly rotating pot and cannot rotate. rotate the nozzles by hand to check nozzle.

  • Page 26: Information Codes

    Functional error. Turn off the dishwasher and try to start it again. Button error If the problem continues, contact an authorized Samsung service center. For any codes not listed above, call 1-800-SAMSUNG (726-7864) 26_ Troubleshooting DW7933LRASR-00141A-01_EN_20120514.indd Sec7:26 DW7933LRASR-00141A-01_EN_20120514.indd Sec7:26 2012-05-14...

  • Page 27: Appendix

    Appendix HELPING THE ENVIRONMENT • Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cable so that the appliance cannot be connected to a power source. •...
  • Page 28 2nd year is customer’s responsibility), and Lifetime Stainless Door Liner & Tub for leakage. Samsung will replace your unit with same or current model (that is better or equivalent in functionality) (Labor related to replacement is customer’s responsibility).
  • Page 29 PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY...
  • Page 30 Memo DW7933LRASR-00141A-01_EN_20120514.indd Sec10:30 DW7933LRASR-00141A-01_EN_20120514.indd Sec10:30 2012-05-14 2012-05-14 4:46:58 4:46:58...
  • Page 31 Memo DW7933LRASR-00141A-01_EN_20120514.indd Sec10:31 DW7933LRASR-00141A-01_EN_20120514.indd Sec10:31 2012-05-14 2012-05-14 4:46:58 4:46:58...
  • Page 32 Questions or Comments? COUNTRY CALL OR VISIT US ONLINE AT U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com MEXICO 01-800-SAMSUNG (726-7864) www.samsung.com www.samsung.com/ca CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca_fr (French) Code No. DD68-00141A-01_EN DW7933LRASR-00141A-01_EN_20120514.indd Sec10:32 DW7933LRASR-00141A-01_EN_20120514.indd Sec10:32 2012-05-14 2012-05-14 4:46:58 4:46:58...
