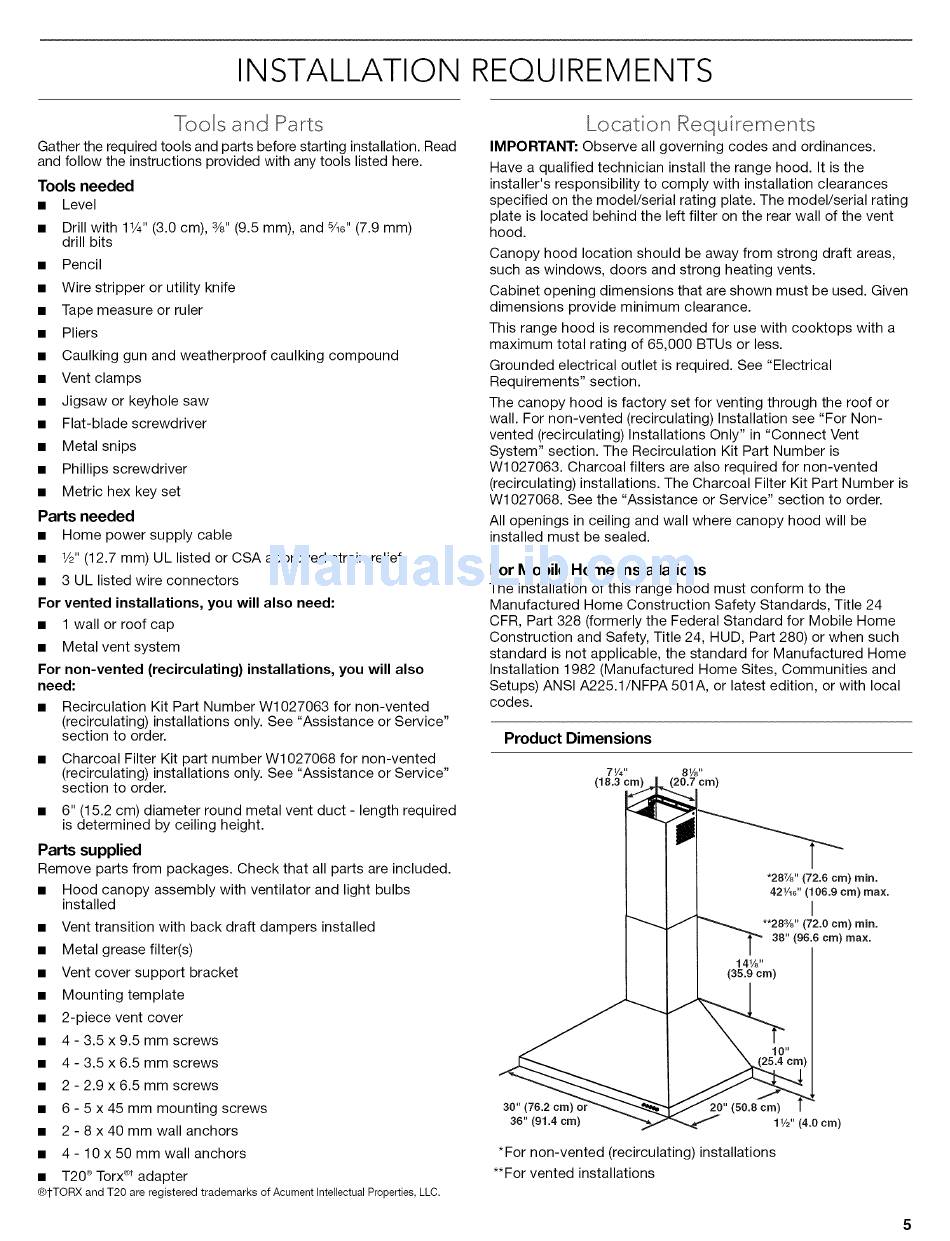

INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation. Read
and follow the instructions provided with any tools listed here.
Tools needed
•
Level
•
Drill with 11¼"(3.0 cm), 3/8"(9.5 mm), and 5/16"(7.9 mm)
drill bits
•
Pencil
•
Wire stripper or utility knife
•
Tape measure or ruler
•
Pliers
•
Caulking gun and weatherproof
caulking compound
•
Vent clamps
•
Jigsaw or keyhole saw
•
Flat-blade screwdriver
•
Metal snips
•
Phillips screwdriver
•
Metric hex key set
Parts needed
•
Home power supply cable
•
1/2"(12.7 mm) UL listed or CSA approved strain relief
•
3 UL listed wire connectors
For vented installations, you will also need:
•
1 wall or roof cap
•
Metal vent system
For non-vented
(recirculating)
installations,
you will also
need:
•
Recirculation
Kit Part Number W1027063 for non-vented
(recirculating)
installations only. See "Assistance
or Service"
section to order.
•
Charcoal Filter Kit part number W1027068 for non-vented
(recirculating)
installations only. See "Assistance
or Service"
section to order.
•
6" (15.2 cm) diameter round metal vent duct - length required
is determined by ceiling height.
Parts supplied
Remove parts from packages. Check that all parts are included.
•
Hood canopy assembly with ventilator and light bulbs
installed
•
Vent transition with back draft dampers installed
•
Metal grease filter(s)
•
Vent cover support bracket
•
Mounting template
•
2-piece vent cover
•
4- 3.5 x 9.5 mm screws
•
4- 3.5 x 6.5 mm screws
•
2 - 2.9 x 6.5 mm screws
•
6- 5 x 45 mm mounting screws
•
2 - 8 x 40 mm wall anchors
•
4- 10 x 50 mm wall anchors
•
T20 ®Torx ®t adapter
®tTORX and T20 are registered
trademarks
of Acument Intellectual Properties, LLC.
Locat
on Requ
rements
IMPORTANT: Observe all governing codes and ordinances.
Have a qualified technician install the range hood. It is the
installer's responsibility
to comply with installation clearances
specified on the model/serial rating plate. The model/serial
rating
plate is located behind the left filter on the rear wall of the vent
hood.
Canopy hood location should be away from strong draft areas,
such as windows, doors and strong heating vents.
Cabinet opening dimensions that are shown must be used. Given
dimensions
provide minimum clearance.
This range hood is recommended
for use with cooktops with a
maximum total rating of 65,000 BTUs or less.
Grounded electrical outlet is required. See "Electrical
Requirements"
section.
The canopy hood is factory set for venting through the roof or
wall. For non-vented
(recirculating) Installation see "For Non-
vented (recirculating) Installations Only" in "Connect Vent
System" section. The Recirculation
Kit Part Number is
W1027063. Charcoal filters are also required for non-vented
(recirculating) installations. The Charcoal Filter Kit Part Number is
W1027068. See the "Assistance or Service" section to order.
All openings in ceiling and wall where canopy hood will be
installed must be sealed.
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured
Home Construction
Safety Standards, Title 24
CFR, Part 328 (formerly the Federal Standard for Mobile Home
Construction
and Safety, Title 24, HUD, Part 280) or when such
standard is not applicable, the standard for Manufactured
Home
Installation 1982 (Manufactured
Home Sites, Communities and
Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local
codes.
Product Dimensions
71/4"
81/8"
(18.3 crn)
(20.7 crn)
"287/8" (72.6 crn) rain.
421/16" (106.9 crn) max.
I
**28%" (72.0 cm) rnin.
38" (96.6 crn) max.
141A, , ,
(35.9
crn)
10"
30" (76.2 crn)
20" (50.8 crn)
36" (91.4 crn)
11/2" (4.0 crn)
*For non-vented
(recirculating) installations
**For vented installations
