Part names and functions
10 Playback control buttons
Use to control each function after you have selected it using
the input function buttons (page 19).
11 Tuner control buttons
ST/MONO
Use to switch the sound mode between stereo and
monaural. (page 25)
RDS ASPM
Use to search for RDS Auto station program memory
(page 26).
RDS PTY
Use to search for RDS program types (page 26).
RDS DISPLAY
Press to change the RDS display for information mode
(page 26).
DAB SCAN
Use to scan for DAB radio station (page 28).
DAB ENTER
Use to confirm the DAB radio station (page 28).
DAB DISPLAY
Press to change the DAB display for information mode
(page 29).
12 OPEN/CLOSE
Use to open or close the disc tray (page 19).
13 Sound control buttons
Adjust the sound quality (page 14).
14 RANDOM
Press to randomize order play setting from a CD, iPod or USB
(page 20).
15 REPEAT
Press to change the repeat play setting from a CD, iPod or
USB (page 20).
16 Volume control buttons
Use to set the listening volume (page 13).
17 DIMMER
Dims or brightens the display. The brightness can be
controlled in four steps (page 13).

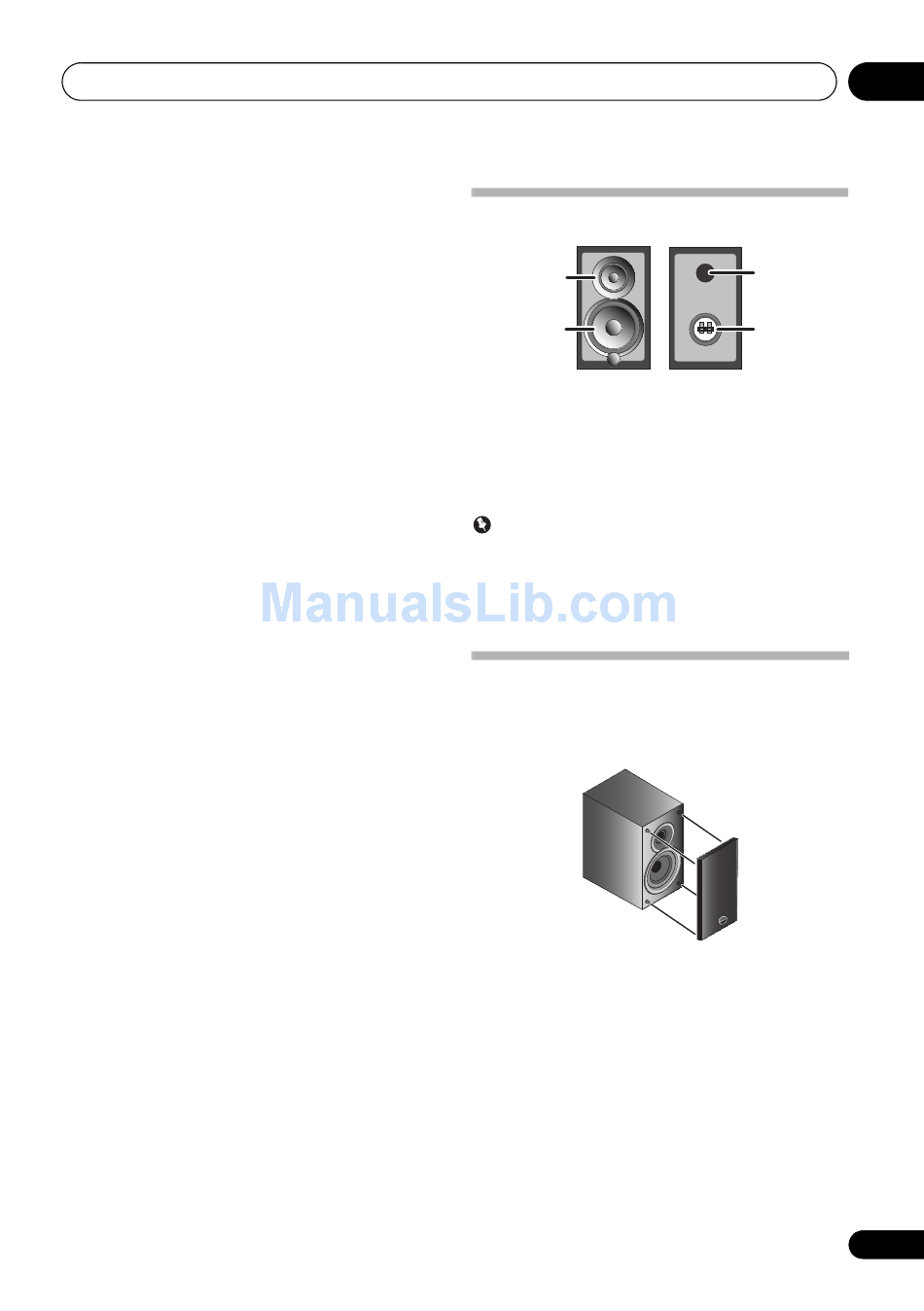

Speaker system

1
2
1 Tweeter
2 Woofer
3 Bass Reflex Duct
4 Speaker Terminals
Important
• Speaker grille can be removed.
• Make sure nothing comes into contact with the speaker
diaphragms when you remove the speaker grilles.
• Both speakers can be used on either the right or the left
side.
Detatching and replacing the front
grille
The front grille of this speaker system is removable. Proceed
as follows:
1 Grab the bottom of the grille, and gently
pull it toward you to remove the bottom
portion.
2 Next, grab the top part of the grille and
gently pull it toward you to remove the top
portion.
To install the grille, align the projections on the speaker with
the receptacles on the top and at the base of the grille and
push them into place.
