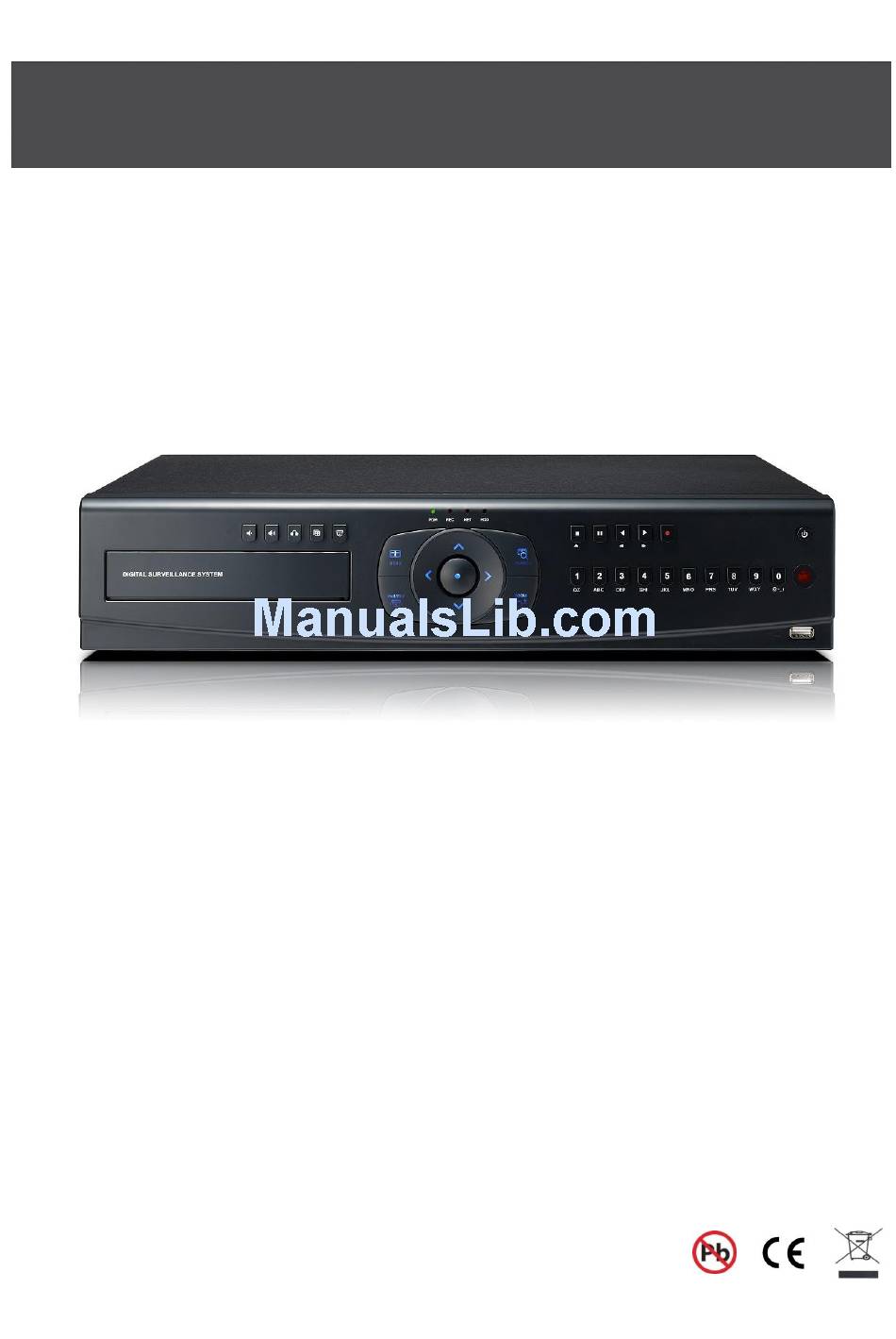

Installation and User manual
Quantum 960H DVR Range
Real time 960H DVRs
QP960H and QX960H models

Advertisement

Table of Contents
loading

Related Manuals for Vista QP960H

Summary of Contents for Vista QP960H

  • Page 1 Installation and User manual Quantum 960H DVR Range Real time 960H DVRs QP960H and QX960H models...
  • Page 2 Quantum 960H DVR range manual V1.2...
  • Page 3 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
  • Page 4 NORBAIN SD LTD reserves the right to make changes to the product and specification of the product from time to time without prior notice. WARNINGS AND CAUTIONS: To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation grills or other openings on the equipment.

  • Page 5: Table Of Contents

    Contents OVERVIEW ........................... 7 1. C ....................7 ONTENTS OF ACKING 2. F ........................8 EATURES INSTALLATION ........................9 1. F ....................9 RONT ANEL ONTROLS 2. R ..................... 11 ANEL ONNECTORS 3. R ......................13 EMOTE ONTROL 4. C ......................14 ONNECTION UIDE 5.
  • Page 6 3-1. Display ..............................73 3-2. Recording ............................... 75 3-3. System ..............................79 3-4. Event ..............................85 4. L ) ............87 OCAL EARCH VIEWING DOWNLOADED FOOTAGE 4-1. Search ..............................87 4-2. Log ................................. 89 4-3. Info ................................. 89 5. L .........................90 OCAL ETUP 5-1.

  • Page 7: Overview

    Overview 1. Contents of Packing Battery User Manual Power Cable Remote Controller (AAA x2) Mouse Installation Quantum 960H DVR range manual V1.2...

  • Page 8: Features

    - Live monitoring, recording, playback, backup, remote access simultaneously - Multi channel playback (QX960H real-time on all views, QP960H real-time on quad display) - Variable events notification to e-mail, buzzer or PC Client system Quantum 960H DVR range manual V1.2...

  • Page 9: Installation

    Installation 1. Front Panel Controls ①②③④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩⑪⑫ ⑬ ⑭ ⑮ ① Volume Up & Down ( To increase or decrease the volume. ② Audio Selection Switches between audio channels ③ Multi-screen Display Use the Multi-screen display button to select the display mode (single/4/9/16 way). ④...

  • Page 10: Arrow Buttons

    ⑧ Stop / Eject ( ■ To stop playback and go back to live mode. To eject DVD-RW Pause ( ▌▌ To freeze picture on playback mode and live mode. Forward Play (▶) Playback of the recorded data. When in play mode press again to enter fast forward mode. Reverse Play / Rewind () Reverse play of recorded data.

  • Page 11: Rear Panel Connectors

    16 camera inputs ③ Video Outputs 16 camera loop outputs ④ Audio Input QX960H – Audio per channel, QP960H: 16way – 4 Audio inputs; 4 and 8 way – 1 Audio input ⑤ AC Power Input AC 100-240V 50/60Hz ⑥ Audio Output Audio output ⑦...

  • Page 12: Network Port

    ⑧ VGA Output VGA video output for main monitor (1024x768 to 1920x1080) ⑨ Network Port Connecting to the DVR through Internet or LAN ⑩ USB Port USB 2.0 port for mouse ⑪ RS232 Serial Communication (for service) ⑫ PTZ Camera Controller Serial Communication for Pan / Tilt Camera ⑬...

  • Page 13: Remote Control

    3. Remote Control ① POWER : Power on/off ② P/T/Z : Entering PTZ Setup menu directly ① ② ③ ③ REC : Start & Stop Recording ④ Numbers and letters (1 to 9) ⑤ INFO : Direct access system information ID : Entering ID set mode ④...

  • Page 14: Connection Guide

    4. Connection Guide Connecting the monitor There are four available monitor outputs on DVR. ● HDMI output : Connect to the HDMI port of the HD monitor(HDTV). ● VGA output : Connect to the VGA port of the VGA monitor. ●...

  • Page 15: Connecting Audio

    Connecting audio To record audio on the DVR, connect to the audio source. ● Audio input : Connect to the audio out of the microphone. To listen to live or recorded audio, connect to an amplified speaker system. ● Audio output : Connect to the audio in of the audio AMP. Connecting to a network Use the ethernet port to connect to remote PC via ethernet network.

  • Page 16: Turning On The Dvr

    ● Telemetry (+) : Connect to RS485 Rx(+) of PTZ camera. ● Telemetry (-) : Connect to RS485 Rx(-) of PTZ camera. Connecting to a remote keyboard This RS485 connector is for a control keyboard. (+) (-) ● Keyboard (+) : Connect to RS485 Tx(+) of the keyboard. ●...

  • Page 17: Operation

    Operation 1. Navigation You can navigate the on screen menus using the front panel buttons, IR remote control, remote keyboard or mouse. 1-1. Mouse Control Right clicking the mouse brings up the following popup menu. ① Setup Menu ② Search Menu ①...

  • Page 18: Monitoring

    2. Monitoring 2-1. OSD Description The Status Bar on screen shows HDD capacity, network connection, current time, etc. ① ② ③ ④ ⑤ ⑥ ① HDD capacity : Used capacity / Total capacity ② USB memory connection ③ Network connection : It is shown that admin or user is connected. ④...

  • Page 19: Digital Zoom

    Also you can use the DIS button on the remote controller to change the display mode. Display switches in the following order when the DIS button is pressed. Single Channel  4 Channel  9 Channel  16 Channel  Single Channel 2-3.

  • Page 20: Playback

    3. Playback Click the right button on the mouse, the popup menu will be displayed on screen. To begin playback, press the Play button on the popup menu. 3-1. OSD Description The Control Bar on screen shows Playback control buttons, Progress bar, Display mode buttons, Playback time, etc.

  • Page 21: Playback Control

    ⑦ Reverse Play button ⑮ Playback Date & Time ⑧ Play button 3-2. Playback Control Playback When the Play button(⑧) is pressed, the unit will play forward at the rate the data was recorded. While in the play mode, the user may change the playback direction, playback speed.

  • Page 22: Playback Search

    Stop To stop playback and return to the live mode, press the Stop button(⑧). 3-3. Playback Search The user can search the recorded video during playback. The recorded video is indicated by a colour bar on the time bar(②). You can use the Previous/ Next time buttons(①) to view if there are more recorded data. Click the mouse at the desired point of the colour bar, you can view the recorded data.
  • Page 23 1. Click the right button the mouse, the popup menu will appear. 2. To control Pan/Tilt, click the P/T icon(①). ① ② To control Zoom/Focus, click the Z/F icon(②). 3. The PTZ menu will be displayed on screen. The user can control PTZ cameras using PTZ menu. ⑧...

  • Page 24: Ptz Control By Remote Keyboard

    Press the PTZ Mode button(⑤) to enter the Zoom/Focus mode. To zoom or focus use the arrows buttons; Left(⑥) : Focus near, Right(⑦) : Focus far, Up(⑧) : Zoom in, Down(⑨) : Zoom out [ Preset positions ] 1. To store a preset position, move the camera to the required position. 2.

  • Page 25: Ptz Control By Client Software

    4-4. PTZ Control by Client software While Client software is running select the dome required. 1. Enter the Pan/Tilt mode by pressing the PTZ icon at the top of the screen. ② The Pan/Tilt control window(①) will appear. ① 2. To move the dome use the arrows buttons; ⑤...
  • Page 26 1-2. Camera Covert Cameras can be hidden from the viewer in live or play back mode. Select the camera to be made covert using the up and down keys, then press select to turn the camera green, toggle between on and off with the up and down buttons. Alternatively use the mouse to select the camera and click between on and off.
  • Page 27 <Quad Screen> Spot settings is used to configure the 2 spot monitor outputs. The Spot monitors can respond to Alarms, Motion, Audio, or can be configured for full or multi-screen sequences. Use the Select key to turn the Mode box from blue to green, use the up and down arrows to select the mode between multi-screen options;...
  • Page 28 1-5. OSD Setting On Screen Display Setting: Selecting whether the time and date etc are shown on the screen or not. Status Bar The display bar at the bottom of the screen can be set to be permanently on or to disappear after a period of time.
  • Page 29 1-6. Live Setting The live settings are used to set up a sequence of either full screen camera images or multi screen displays Use the Up and Down arrows to select either: Full Screen, Quad or Nine way split sequences. The display will change to allow individual sequence times to be set per channel or split screen option.

  • Page 30: Recording

    2. Recording All recorded data is watermarked to ensure that it is not tampered with. Using the software supplied the legitimacy of this data can be verified. 2-1. Global Watermarking Generally this should be set to on, this allows the supplied software to verify the downloaded information to ensure it has not been tampered with or changed.
  • Page 31 Post Alarm Duration This is the time for which the DVR will carry on recording, in it’s a alarm mode, after an alarm event has finished. It can be set up to 99 Seconds Pre-Alarm Resolution This is the resolution that the DVR will record its Pre- Alarm events in; it can be set to CIF, 2 CIF, D1 or 960H.
  • Page 32 2-3. Alarm There are 16 Alarm inputs on the rear of the Quantum these can be used to initiate the Alarm record mode. The Alarm recording Quality, FPS and Audio are set up in the same way as Normal Recording. A Single Alarm input can be used to drive up to 4 PTZ cameras to preset positions or Preset tours.
  • Page 33 2-4. Motion Motion on any channel can trigger recording of that camera. Resolution, Images Per second, Audio, and Quality can all be configured individually per channel. As per Normal and Alarm Recording Modes. To setup the motion detection grid per channel select the “Sel” button. The detection area is divided into a grid of 16x12 cells.
  • Page 34 2-5. Audio Event 16 Audio Inputs and 1 Output are available. Recording can be triggered when Audio is detected. As with Normal and Alarm recording, the Resolution and Images per second can be set per channel. Individual channels can be enabled or disabled and the sensitivity set to either Low, Middle or High.
  • Page 35 2-7. Schedule The schedule allows the Quantum DVR to be set to only record at particular times of the day. This timing setting is global for all channels. However the Resolution, Images per second and Audio can be configured per channel. To allocate the hourly blocks in the schedule to individual profiles, tick the square box to the right of each profile, then click and drag over the desired hourly segments.

  • Page 36: System

    3. System 3-1. Basic Used to set Language, Auto Delete Mode, Date Format, Time/DST Set, Video Type, System ID. Also, Initialisation and system Information is available. Language The default is English. Italian, French, Hungarian, Slovak, German, Russian, Chinese, Dutch, Spanish, Portuguese, Japanese Danish and Polish are available. Auto Delete Mode Auto Delete Mode can be set to automatically erase recorded older than a certain number of days.
  • Page 37 If the country does not appear in the list the use the User define option as shown below: ** NOTE : Playback following time change The DVR uses the time and date to index video on the hard disk drive so you can find it later. Changing the time can cause the DVR to work improperly, when you try to play back video.
  • Page 38 Video Type Video Type can be set in this menu without rebooting or initialisation. The default is PAL, NTSC can also be selected IR Remote Address The remote control can be used to control up to 16 DVRs, the ID number on each can be set to a unique address so that the remote will only control one at a time if they are in close proximity.
  • Page 39 3-2. Disk Format Formatting of the drive is used when new drives are installed or you need to wipe all information on the disk. Click on OFF to turn to ON, then click on Execute, click YES, to confirm Smart This function is used to keep a check on the health of the Hard disk.
  • Page 40 3-3. Account The DVR can have the following different levels of operators, each with different users rights and passwords: Admin level : Operators logged in at this level has full rights Manager level : Operators logged in that this level as default have access to all except: Stopping Recording and Shutting down the DVR.
  • Page 41 Automatic timed log out The system can be set to automatically log out a user after a certain amount of time if no key presses have been made. The operator level has to have been activated before this can be set.
  • Page 42 3-4. Program Update Always turn off: Recording, Playback and Network access while upgrading the unit The latest firmware version can be upgraded through USB 2.0 Port using Memory Stick or CD/DVD Media. When a memory stick is connected to the USB port, this symbol will be shown in the status bar of the screen.
  • Page 43 The DVR can control PTZ cameras via coax or a RS485 connection on the rear of the DVR. The cameras can have individually selectable Protocols with a choice of Vista Coax, Vista PD, Pelco P or Pelco D. The Baud rate can also be selected.
  • Page 44 3-7. More Replay Time : This is the amount of time that the DVR jumps back from the current time when the play button is pressed, it can be set between 1 minutes and60 minutes. Key Beep : The DVR beeps whenever the button on the front panel is pressed (On/Off). Quantum 960H DVR range manual V1.2...

  • Page 45: Network

    4. Network If the DVR is connected to a network, this icon ( ) will be shown in the OSD display. This menu can only be accessed if the user has the necessary rights. (Default password is 00000000). With in the Network menu the DDNS (Dynamic Domain Named Server), IP addresses, NTP and Live can be set.
  • Page 46 4-2. IP SET When a fixed IP address is being used, the Use Dynamic IP should be set to NO The IP Address, Gateway and Subnet Mask need to be set, these will generally be given by the Network Manager. DSL refers to all types of Digital Subscriber Line such as ADSL and SDSL.
  • Page 47 4-3. NTP The Network Time Protocol Setting allows the DVR time to be synchronised with an external time server. The default is NTP OFF. Ensure that port 37 (TCP) time is opened on the router. When turned on the Type of service can be selected, options are Default (time.bora.net), Domain and IP.
  • Page 48 4-4. LIVE This allows a separate Live viewing resolution and Quality, regardless of System Recording and Quality, to be set for remote viewing, this helps optimise the network streaming. 4-5. Bandwidth It is possible to set maximum limits for the bandwidth utilisation on the network port of the unit.

  • Page 49: Event

    5. Event This section is used to inform the user as to an event occurring, this can be by the sounding of a buzzer or by sending an E-mail to a predefined address. 5-1. E-Mail Registration Within this section up to 3 users can be set-up to receive an email on the occurrence of an event such as Video Loss / Alarm / Motion or Power Loss.
  • Page 50 or Weekly Start/End Time : Enable to send e-mail notifications only for events that occur within a specified range of time. Send Test Mail : Enable to send a test E-mail to the addresses so allowing the installer to verify if the setup is correct 5-2.
  • Page 51 5-3. E-mail Out As well as e-mail on event activations the Quantum can be set to send a report on the following occurrences: Video Loss; Alarm; Motion: Power Loss and Smart (Hard disk monitoring). Attach Image : On/Off (Enable to send a picture of the event.) 5-4.
  • Page 52 5-5. Alarm Out The Alarm out relay can be set to activate on the following occurrences: Video Loss; Alarm input; Motion detection; Power Loss; Smart (Hard disk monitoring). The duration of the activation can be set. Quantum 960H DVR range manual V1.2...

  • Page 53: Search Menu

    Search Menu 1. Searching Recorded Data The user can search the recorded video on the DVR to find Search a specific time or event. To access the search option, click the SEARCH icon on the popup menu. To access the search option, press the SEARCH button on the front panel or right click the mouse and select Search, (A password may have to be entered) after which the following screen will be displayed.

  • Page 54: Event Search

    1-2. Event Search This allows the user to select between ALARM, MOTION or AUDIO. Select required option by pressing the right arrow, or selecting with the mouse. ALARM – The search is for any alarm activation within the times defined. MOTION –...
  • Page 55 The Calendar search gives a graphical representation of when video is recorded on the hard drive. The year and month can be selected. This month is shown as a calendar on the screen, any day which contains recorded video will be indicated by a highlighted number in white. Move to the desired day by using the up / down / left / right buttons, Select the day by pressing SEL.

  • Page 56: Bookmark Search

    1-4. Bookmark Search It is possible to edit the bookmark. ** How to put a bookmark in the recorded file ; Press the bookmark icon at the point you want during playback. 1-5. Thumbnail Search The Thumbnail search displays a single camera over either a 24 hour or single hour period, as a number of time lapse still images on screen.
  • Page 57 2. Select the relevant day 3. Select the relevant camera, the 24 hour period will be displayed as shown below in hourly segments: click on hour segment required 4. Thumbnail images from that hour will be displayed, the hour is split into 20 even time periods, click on the correct time period, the video will play back.

  • Page 58: Archiving Evidence To Dvd/Cd Or Usb

    2. Archiving Evidence to DVD/CD or USB Once the required video has been found, it may be necessary to down load it for evidential purposes. This can be done either onto the internal CD/DVD-R writer or via the USB port on the front of the DVR.
  • Page 59 Channel As long as the EXCLUSIVE file format is selected, the number of channels to be down loaded can be selected. Anything from a single channel to all 16 can be selected. Calculate Archive size Once the time and date and file format have been entered, it is necessary to confirm that the size of file created will not exceed the size of memory available on the disk or USB device.

  • Page 60: Log

    3. LOG The log file contains information on the following: Power : Power on, Power off, Power fail Record : Rec fail, Rec start, Rec stop, Rec error, Rec full Operation : Play start, Play stop, HDD format, Menu set Client : Login, Logout, Log fail, Play, Transfer, Rec on, Rec off, F/W Upgrade Event :...

  • Page 61: Client Viewer Software

    Client Viewer software Each DVR comes with license free viewer software to view the DVR across a network. To be able to do this the recommended minimum specification for the PC is as follows: Minimum PC specification > CPU: Core 2 Duo 3.16GHz, >...
  • Page 62 Logging on The following window will appear. To connect to the DVR, enter the units: IP address; DVR Port (2000 ids default), ID and Password. Then, click “OK”, to start the live monitoring. Description field is the name of area / Building / location of the DVR, this should be typed in he first time the unit is connected to, this will store it in the address book.

  • Page 63: Explanation Of Screen Buttons

    Explanation of Screen Buttons Quantum 960H DVR range manual V1.2...

  • Page 64: Live Monitoring

    1. Live Monitoring Split Screen options (1/4/6/7/8/9/10/13/6) Spilt Screens can be viewed during both live and playback. The splits screens available are: full screen,4,6,7, 8,9,10,13 and 16 way. 1) Full Screen 2) 10 Way Quantum 960H DVR range manual V1.2...
  • Page 65 Full Screen on/ off When full screen button is selected, a tool bar offering the various split screen options, and the Exit key will be displayed at the bottom of the screen. OSD on/off The OSD button will toggle between the on screen titles etc being shown or hidden (Smart) Arrange On/Off If cameras are being displayed in segments that are not logical, the Smart button will...
  • Page 66 Image Save / Load SAVE: This icon is used to save a still image in either JPEG or BMP or TIF format. There is no change on the main screen when the “Save” icon is pressed. The still image is stored as default in C:\ HE4000: Saved folder, as a Jpeg image using the date and time as the file name.

  • Page 67: Remote Search

    2. Remote Search Search(Date/Time/Event/Calendar), Archive(Remote Archive), Log(Remote Log) are available. 2-1. Search This Remote Search is able to play back video on the PC direct from the hard disk storage on the DVR. There are 3 options for as follows. 1) Date/Time 2) Event 3) Calendar...
  • Page 68 Click on the Event button on the right hand side, the software will search for all event types. This may take a short while. A list of the available events will appear. To play an Event select it and click Play. To stop playing back press Stop the search screen will appear to allow another search to be carried out, if not required, click cancel followed by live.

  • Page 69: Archive

    [ Select Channel ] Channels can be included or excluded dependent on query. This is available within Search, Backup and Logs. 2-2. Archive Remote Archive – Date/Time Enter the Start and End dates and times, by hovering over the selections, a drop down box will appear.
  • Page 70 Remote Archive – Event Select either: Alarm, Motion or Audio from the top of the screen. A list of events will appear. Click on the event required, it will be come highlighted. Click on Calculate, the file size will be calculated, this may take a few seconds. Finally click Archive;...

  • Page 71: Remote Log

    Then click the “Next” button to set “End” Archive time, in the same manner. Click on Calculate, the file size will be calculated, this may take a few seconds. Finally click Archive; the file will be transferred to C:\ HE4000 \Download. [ Play back down loaded files ] Open the viewer software but do not connect to a unit, click the cancel button to remove the log on box.

  • Page 72: Information

    2-4. Information System Information The system info displays the Mac address and software version information. Status Information This shows the status of both the Hard disk and the recording modes of each channel. Quantum 960H DVR range manual V1.2...

  • Page 73: Remote Setup (Menu Settings - Same As Dvr)

    3. Remote Setup (Menu settings - same as DVR) 3-1. Display This is the same as the Display Menu of DVR, refer to setting the Display Menu of DVR. Camera Setting Within this setting the Hue, Saturation, Contrast and Brightness can be adjusted on a camera by camera basis.

  • Page 74: Camera Status

    Up to 32 Characters are available for each camera name. OSD setting The Symbols and text displayed on screen can be controlled: 1. The status bar can be set to be off/ Always on or be on for 5 or 10 seconds after a key press.

  • Page 75: Recording

    3-2. Recording Global 1. Watermark – security tagging of recorded video. 2. HDD Overwrite – When the disk is full it will overwrite the oldest data. 3. The Picture quality can be set 4. Alarm mode can be set between Exclusive and Normal 5.
  • Page 76 Alarm The Alarm settings for Resolution, Rate and Audio are configured in the same manner as Normal (Time lapse). Motion The Motion settings for Resolution, Rate and Audio are configured in the same manner as Normal (Time lapse). The only additions are the setting up of Sensitivity and the motion detection grid per camera. [ Motion Sensitivity ] The sensitivity of motion detection can be set on a per camera basis,...
  • Page 77 The Schedule settings for Resolution, Rate and Audio are configured in the same manner as Normal (Time lapse). The only difference is to setup the sensitivity of the audio. Duration The duration setting allows the user to choose the Resolution and length of time the unit records for, then the DVR will automatically adjust the rate at which it records to achieve this time period.
  • Page 78 [ Resolution ] [ Video ] Next select whether the camera is First select the resolution required connected to the DVR. for each camera. [ Audio ] [ Days ] Finally select the number of days the Next select if Audio is being recorded DVR should record for.

  • Page 79: System

    Schedule The Schedule settings for Resolution, Rate and Audio are configured in the same manner as Normal (Time lapse). The only addition is the setting up of Schedule grid, click on the SET button to display the following screen. A timetable can be set in hourly blocks throughout the whole week. 3-3.
  • Page 80 Account The DVR allows for : 1 Administrator level log on 1 Manger level log on 25 User level log on Each of the 27 log-on accounts can be given individual passwords and user rights To amend the Name and password, click on the name beside the Client Account box.
  • Page 81 [ Auto Log out ] [ Archive Log password ] After a certain amount of time (15mins, A password is required in order to access 30mins or 1 hour) of inactivity. The users the Archive Log, can be automatically logged off both the Local front panel control, and the Client viewer, Auto Delete Mode...
  • Page 82 PTZ Setup for Cameras [ ID ] Each camera input can be allocated an RS485 ID between 1 and 255. [ Protocol ] Each camera output can have an individual protocol associated with it. [ Baud rate ] The Baud rate of each PTZ camera can be set the choices are: PTZ set up for Keyboard [ ID ]...
  • Page 83 DST Setup ( Day Light Saving Time) The Quantum can be set to automatically reset its clock when the clocks change for Day Light Saving time. As default this is set to Off. [ User Define ] Change “Off” to User Define, this will allow the exact date and time for the change to occur.
  • Page 84 [Select City] Once the NTP settings have been set, you must then tell the DVR which time zone you are in. This will allow it to offset any time differences if the time server you contact is in a different zone. Select City, the map screen will appear.

  • Page 85: Event

    3-4. Event Email Registration The DVR will send E-mails to up to 3 defined addresses under certain conditions such as Alarms or video loss. The screen is where you setup the receiving address and address that the DVR will send from. The mails can be set to be sent immediately an event occurs, Daily or Weekly.
  • Page 86 Beep Out The internal buzzer can be set to sound on the following occurrences: - Video Loss - Alarm activation - Motion Detection - Power loss The duration of the buzzer can be set. Alarm Out The Alarm output relay can be set to activate on the following occurrences: - Video Loss - Alarm activation...

  • Page 87: Local Search ( Viewing Downloaded Footage )

    4. Local Search (viewing downloaded footage) This allows playback of video which has been downloaded top the PC. 4-1. Search Searches can be done by Date/Time, Even and Calendar. Date/Time Search Hovering over the Date and Time bars will allow drop down boxes to select the required time and Date.
  • Page 88 Calendar Search When the Calendar option is chosen this screen will appear, with recording available will be highlighted in Blue. Select the required day. Any downloaded event s will be shown, click on the event, the red line will move to that event.

  • Page 89: Log

    File List Search The archive list will be shown in order of file name, select the file you wish to review. Then click Play button. 4-2. Log Clicking on Log will display the log file from the unit. This file can be printed, by clicking Print. 4-3.

  • Page 90: Local Setup

    5. Local Setup This allows the setup of the viewing of the software on the PC. 5-1. Global This screen allows the following: Draw mode to be set to YUV or RGB Date Format to be set to: DD/MM/YYY, MM/DD/YYYY or YYYY/MM/DD. Save Format, for the saving of stills as either JPEG, Bit Map or TIF.

  • Page 91: Audio Buffer

    5-3. Audio Buffer Audio Buffer settings are there to adjust the audio over the network, this will compensate for different network speeds ( LANs, WANs etc). This can only be adjusted if the LIVE video is switched off. Adjust each variable to achieve best quality video for Network bandwidth available, this is best done through trial and error.

  • Page 92: Telemetry Control (Pan/Tilt/Zoom/Focus)

    6. Telemetry Control (Pan/Tilt/Zoom/Focus) When PTZ button is being pressed, PTZ control icon will be pop-up on the live image. 6-1. Pan / Tilt / Zoom / Focus When PAN/TILT button clicked Pan/Tilt control appears, this allows Left, Right, Up and Down Control of PTZ cameras When Zoom/Focus button clicked, the control changes to...

  • Page 93: Preset / Learn

    6-2. Preset / Learn Preset & Learn icon The presets button can be activated by clicking on the centre of the control icon, the preset symbol will appear and the Preset selection box will appear. To save a preset, move the camera to the desired position then click “Set” followed by the desired number.

  • Page 94: Screen Position Save/Load

    7. Screen Position Save/Load 7-1. Screen Position Save The positions of each channel on screen are saved into the registry and then restored the next time you open the client viewer software. 7-2. Screen Position Load It is possible to edit & restore the screen position which is stored in the registry.

  • Page 95: Firmware Upgrade

    8. Firmware Upgrade User can select Firmware Upgrade menu, if a new version of firmaware exits in the C:/H264CD/Upgrade folder ,then the message ‘New program found!’ will be displayed if there is no file then ‘New program not found!’ message will be displayed. To proceed with upgrading press the OK button and select each firmware files to upgrade it to the system, by ticking the boxes.

  • Page 96: Dynamic Ip (Supporting Ddns Server)

    Appendix 1 Dynamic IP (Supporting DDNS Server) With DDNS Server, This allows a user to connect to the unit remotely without the need for a fixed IP address. (Please register your ID & Domain at www.ddns-dvr.com in which you can use their DDNS server as free of charge) 1.
  • Page 97 4. Create Account. Fill in all blanks in order to create new account. ID & Password will be emailed to you when the account is setup correctly. Once the DDns-Dvr account has been setup, it is necessary to add the details in the Network menu of DVR.

  • Page 98: Setup For Dvr Port & Web Server Port Using Ip Sharing Router

    Appendix 2 Setup for DVR port & web server port using IP sharing router (Port Forwarding) 1. To use IP sharing router, “Dynamic IP” should be set to “OFF”. ① DVR Port : This can be set to any number between 2000 to 65535. ②...
