Page 1: User Guide

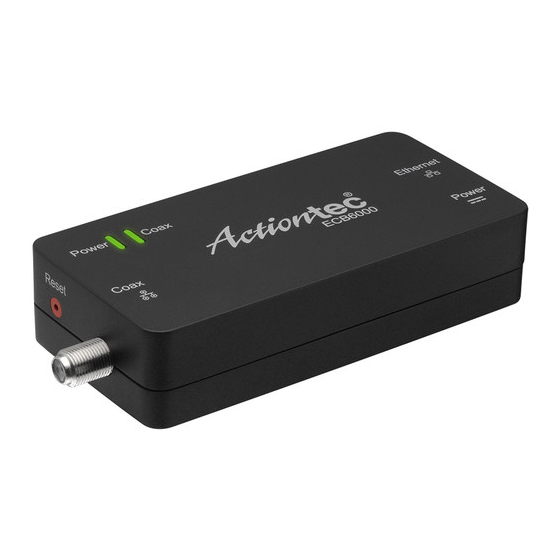

Coaxial-to-Ethernet Conversion Kit MoCA Network Adapter Model # ECB6000 User Guide 0535-0002-000 Rev 1... -
Page 2: Table Of Contents
Table of Contents Table of Contents Getting Started Introduction Package Contents Requirements Features Connecting the Adapters Connecting the First Adapter Connecting Additional Adapters Specifications Notices Warranty Important Safety Instructions... - Page 3 Network Adapter FCC Class B Equipment Contact Information EU CE Declaration of Conformity Technical Support...
-
Page 4: Getting Started
Getting Started Introduction Congratulations on the purchase of a MoCA Network Adapter. The Adapter is a flexible solution for extending a home network. By leveraging the ubiquity of coaxial cabling within the modern home, the Adapter allows the set up of an Ethernet Internet port anywhere a coaxial connection is available. -
Page 5: Package Contents
MoCA Network Adapter Package Contents • MoCA Network Adapter • Coaxial cable • Power adapter • Quick Start Guide • Wall-mount template • Ethernet cable Requirements • Available coaxial port in installation areas • Available electrical wall socket in installation areas Features •... -
Page 6: Connecting The Adapters
Connecting the Adapters Connecting the MoCA Adapters is a relatively simple process. First, connect one Adapter to the broadband modem/router via Ethernet, and then to the coaxial network. Then, additional Adapters can be installed throughout the home or office at any location Ethernet Internet access is needed, and an available coaxial port is available. - Page 7 MoCA Network Adapter 6. Plug the other end of the power adapter (external, 5V DC, 2A, made by APD, model #WA-10P05FU) into an electrical outlet. When complete, the setup should look similar to the figure below: The Internet signal is now being delivered across the coaxial network. ...
-
Page 8: Connecting Additional Adapters
MoCA Network Adapter Connecting Additional Adapters If necessary, additional Adapters can be placed in locations around the home or office that need an Ethernet Internet connection, but at present only have a coaxial port. To connect additional Adapters: 1. Connect a coaxial cable into a coaxial wall port near the location an Ethernet port is needed. - Page 9 MoCA Network Adapter 6. Plug the other end of the power adapter (external, 5V DC, 2A, made by APD, model #WA-10P05FU) into an electrical outlet. When complete, the setup should look similar to the figure below: The device is now connected to the Internet. ...
-
Page 10: Specifications
MoCA Network Adapter Specifications Model Number ECB6000 LAN MoCA LAN Ethernet Port 10/100/1000 (1) LAN Connections LAN MoCA frequency: 1125 MHz - 1425 MHz (6 channel) LED Indicators Power, Coax Power External, 5V DC, 2A Made by APD, model #WA-10P05FU... - Page 11 MoCA Network Adapter Environmental Operating temperature - 0º C to 40º C (32ºF to 104ºF) Storage temperature - 0ºC to 70ºC (32ºF to 158ºF) Operating humidity - 10% to 85% non-condensing Storage humidity - 5% to 90% non-condensing Note: Specifications are subject to change without notice.
-
Page 12: Notices
To the extent that this Limited Warranty Statement is inconsistent with local law, this Statement shall be deemed modified to be consistent with such local law. Under such local law, certain disclaimers and limitations of this Warranty Statement may not apply to the customer. Go to http://www.actiontec.com/products/warranty.php for more information. -
Page 13: Important Safety Instructions
MoCA Network Adapter Important Safety Instructions Basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and personal injury, including the following: • Do not use this product near water – for example, near a bathtub, kitchen sink, laundry tub, or swimming pool, or in a wet basement;... - Page 14 Consult the dealer or an experience radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Actiontec Electronics, Inc, may void the user’s authority to operate the equipment.
-
Page 15: Contact Information
Contact Information For questions regarding your product or the FCC/Industry Canada declaration, contact: Actiontec Electronics, Inc 760 North Mary Avenue, Sunnyvale, CA 94085, United States Tel: (408) 752-7700 Fax: (408) 541-9003 ... -
Page 16: Technical Support
MoCA Network Adapter EU CE Declaration of Conformity To obtain the complete Declaration of Conformity form in softcopy, go to the Actiontec Electronics Declarations of Conformity EU/EEA website at http://international.actiontec.com/support/doc The symbol below is placed in accordance with the European Union Directive 2002/96 on the Waste Electrical and Electronic Equipment (the WEEE Directive).
