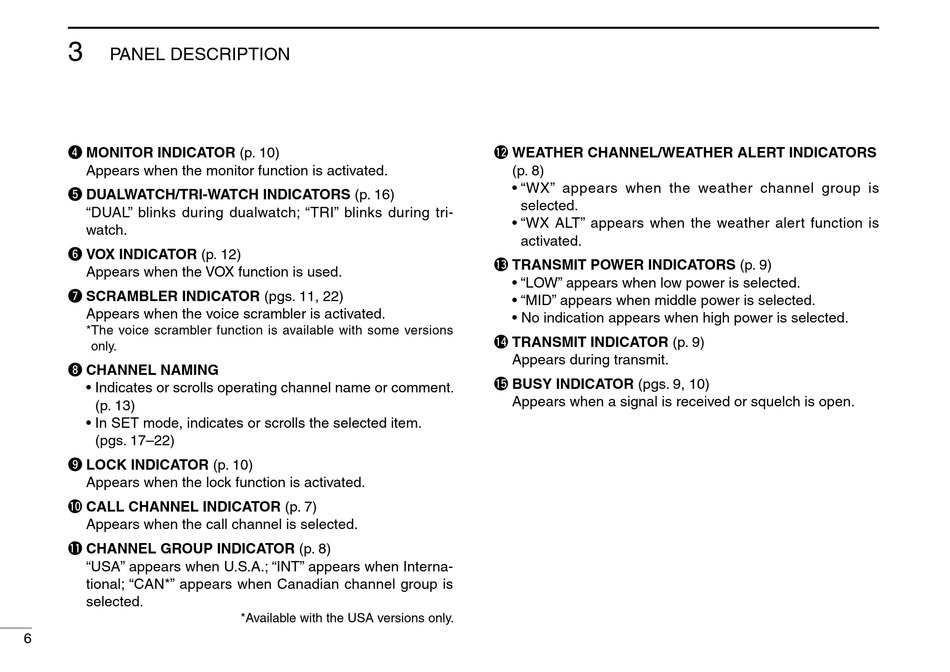

PANEL DESCRIPTION

r MONITOR INDICATOR (p. 10)
Appears when the monitor function is activated.
t DUALWATCH/TRI-WATCH INDICATORS (p. 16)
"DUAL" blinks during dualwatch; "TRI" blinks during tri-
watch.
y VOX INDICATOR (p. 12)
Appears when the VOX function is used.
u SCRAMBLER INDICATOR (pgs. 11, 22)
Appears when the voice scrambler is activated.
* The voice scrambler function is available with some versions
only.
i CHANNEL NAMING
• Indicates or scrolls operating channel name or comment.
(p. 13)
• In SET mode, indicates or scrolls the selected item.
(pgs. 17–22)
o LOCK INDICATOR (p. 10)
Appears when the lock function is activated.
!0 CALL CHANNEL INDICATOR (p. 7)
Appears when the call channel is selected.
!1 CHANNEL GROUP INDICATOR (p. 8)
"USA" appears when U.S.A.; "INT" appears when Interna-
tional; "CAN*" appears when Canadian channel group is
selected.
6
*Available with the USA versions only.
!2 W EATHER CHANNEL/WEATHER ALERT INDICATORS
(p. 8)
• "WX" appears when the weather channel group is
selected.
• "WX ALT" appears when the weather alert function is
activated.
!3 TRANSMIT POWER INDICATORS (p. 9)
• "LOW" appears when low power is selected.
• "MID" appears when middle power is selected.
• No indication appears when high power is selected.
!4 TRANSMIT INDICATOR (p. 9)
Appears during transmit.
!5 BUSY INDICATOR (pgs. 9, 10)
Appears when a signal is received or squelch is open.
