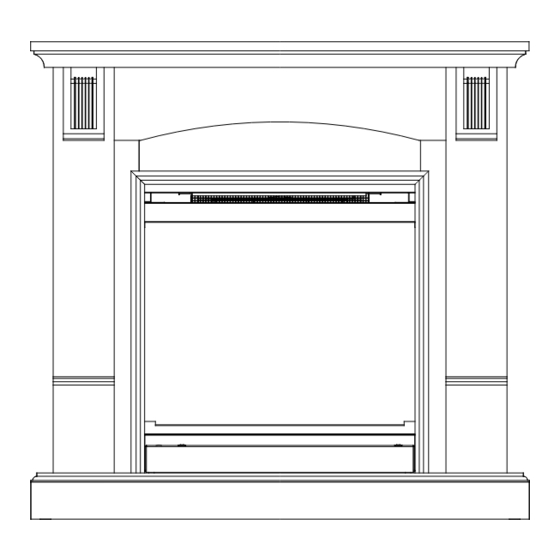

Electralog 20" Compact Owner's Manual

Hide thumbs Also See for 20" Compact:

Advertisement

Quick Links

See also: Owner's Manual
IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this fireplace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.

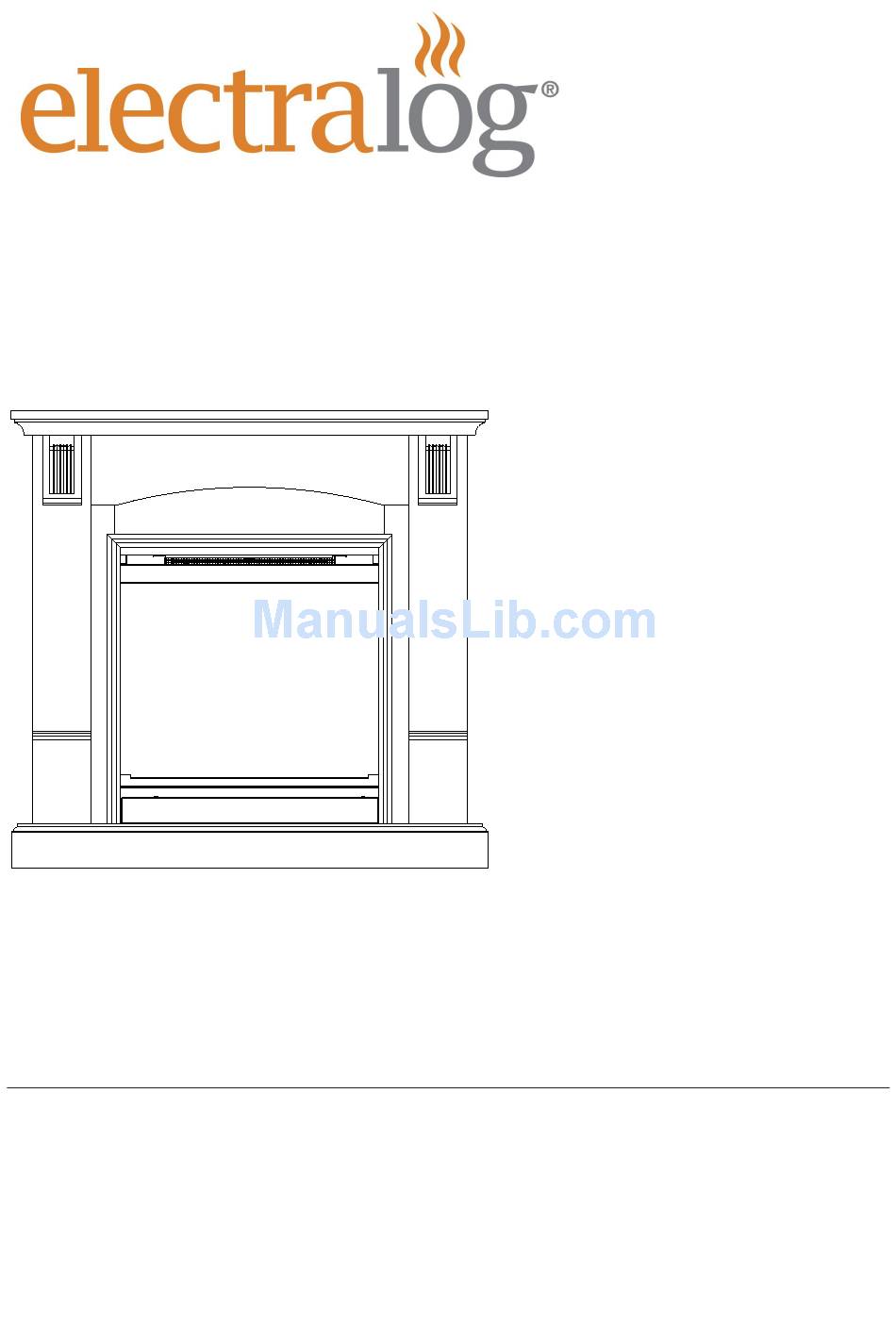

Owner's Manual
Model
20" Compact
7207250100R07

Advertisement

loading

Related Manuals for Electralog 20" Compact

Summary of Contents for Electralog 20" Compact

  • Page 1 Owner’s Manual Model 20" Compact IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to install or use this fireplace. For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. 7207250100R07...

  • Page 2: Table Of Contents

    Table of Contents Welcome & Congratulations ....3 IMPORTANT INSTRUCTIONS ....4 Installation .

  • Page 3: Welcome & Congratulations

    Welcome & Congratulations Thank you and congratulations for choosing to purchase an electric fireplace from Electralog, the world leader in electric fireplaces. Please carefully read and save these instructions. CAUTION: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty.

  • Page 4: Important Instructions

    IMPORTANT INSTRUCTIONS When using electrical appliances, ⑥ Do not operate any unit with basic precautions should always a damaged cord or plug, or if the be followed to reduce the risk of heater has malfunctioned, or if fire, electric shock, and injury to the electric fireplace has been persons, including the following: dropped or damaged in any man-...

  • Page 5: Save These Instructions

    IMPORTANT INSTRUCTIONS hot and arcing or sparking parts Never use with an extension cord inside. Do not use in areas where or relocatable power tap (outlet/ gasoline, paint, or flammable power strip). liquids are used or stored. ⑰ Do not burn wood or other ma- ⑭...
  • Page 6 IMPORTANT INSTRUCTIONS NOTE: This equipment has been WARNING: Remote control tested and found to comply with contains small batteries. Keep the limits for Class B digital device, away from children. If swallowed, pursuant to part 15 of the FCC seek medical attention immedi- Rules.

  • Page 7: Installation

    Installation WARNING: Ensure the power WARNING: To reduce the risk cord is not installed so that it is of fire, do not store or use gaso- pinched or against a sharp edge line or other flammable vapors or and ensure that the power cord is liquids in the vicinity of the heater.

  • Page 8: Operation

    Installation Fireplace Installation 1. Make sure the unit’s 3-Posi- tion switch is switched OFF (refer to operating instruction section). 2. Plug the unit into a 15 Amp, 120 VAC outlet. Wiring BLOWER MOTOR LIGHT HARNESS ASSEMBLY ELEMENT CUTOUT THERMOSTAT FLICKER MOTOR Operation built-in remote control is by-...
  • Page 9 Operation Figure 2 switch is in the ON position the the way to turn on the heater. heater operates if the thermostat When the room reaches the calls for heat. desired temperature, turn the thermostat knob counter clock- NOTE: The heater on your wise until you hear a click.
  • Page 10 Operation integrated on/off remote control. This will synchronize the remote control and the fireplace receiver. NOTE: Ensure that the fire- place 3 position switch is set to NOTE: You will have only 10 the remote control setting (up seconds to perform this last step. position).

  • Page 11: Maintenance

    Maintenance (small) socket base, 60 Watt rat-   WARNING: Disconnect power ing. Example GE 60BC or Philips before attempting any main- CTC. Do not exceed 60 tenance or cleaning to reduce Watts per bulb. the risk of fire, electric shock or damage to persons.
  • Page 12 Maintenance dling, etc., the front glass panel Figure 4 may collect dust particles; these can be removed by dusting lightly with a clean dry cloth. To remove fingerprints or other marks, the front glass panel can be cleaned with a damp cloth. The front glass panel should be completely dried with a lint free cloth to prevent water spots.

  • Page 13: Warranty

    What Electralog will do in the event of a purchaser, and in the event of a defect defect the purchaser assumes the entire cost of In the event a product or part covered by all necessary servicing or repair.
  • Page 14 INCIDENTAL LOSS, COST, OR DAMAGE cially practicable or cannot be timely ARISING OUT OF OR IN CONNECTION made, Electralog may, in lieu of repair WITH THE SALE, MAINTENANCE, USE, or replacement, choose to refund the OR INABILITY TO USE THE PRODUCT,...

  • Page 15: Replacement Parts

    Thermostat Knob ......8800000300RP Light Wire Harness ......2500170300RP Electralog 1367 Industrial Road...
