Modal MD-SPBT01 Quick Setup Manual

B LU ET OOT H SP E AK E R
M D-SPBT 01
Q UI CK S E TU P G U ID E
For more information, refer to the online
User Guide at www.bestbuy.com/modal.
Package contents

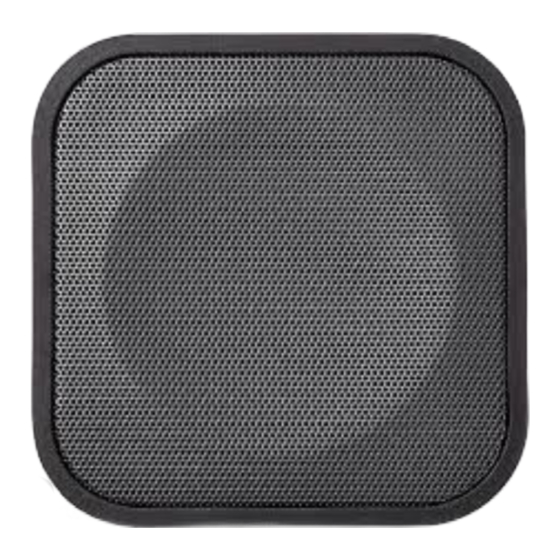

• Bluetooth speaker
• USB charging cable
• Quick Setup Guide
Features
• Compatible with most MP3 players,
computers, mobile phones and tablets.
• Pairs and plays in seconds using a
Bluetooth wireless connection. Up to 33'
range offers flexible use.
• Built-in rechargeable lithium-ion battery
providing up to 5 hours of battery life.
• Battery level monitor that shows the
battery level on your Apple/iOS devices.
(Currently this feature is not available on
Android devices.)
• Lightweight design offering easy
portability.
• 3.5 mm line input providing a simple
input connection.
# Component Function
1 Multi‐function ( )
• In power on state, press and hold the button for more than two seconds to enter into pairing mode. The LED alternates blinking red and white.
• When the phone rings, quickly press the multi-function ( ) button to answer the phone call.
• To end a call, press the multi-function ( ) button twice.
NOTE: For Android users: make sure that the "Phone Audio" function is active in the Bluetooth settings. For more information refer to the online User Guide.
2 AUX IN jack Plug an external audio device into this jack. The default source for this speaker is Bluetooth. If a cable is inserted into this AUX IN jack, the
source is automatically switched to AUX IN. Unplug the cable and the source automatically switches back to Bluetooth.
3 Power
• Slide the switch to the right to power on the speaker
• Slide the switch to the left to turn the speaker off
• When power is on, the unit automatically connects to the last paired Bluetooth device within six seconds. If the last paired Bluetooth
device is not in range, the unit automatically searches for another device to pair to.
4 • Press to increase the volume.
5 • Press to decrease the volume.
6 USB Connect the USB charging cable to charge the battery.
7 Auto Mute/End Phone Call
Music Mode
• Turn the speaker face-down to mute the audio. Turn the speaker face-up to unmute audio.
Phone Call Mode
• Shake the speaker to answer an incoming phone call.
• During a phone call, turn the speaker face-down to end the call.
8 Status LED Status Information
Power
indicator LED
• LED is white when speaker is turned on. LED is off when speaker is turned off.
Charging
• When speaker is off, LED is red while charging. After charging is complete, red LED turns off.
• When speaker is on, LED is solid red while charging. After charging is complete, red LED turns off and white LED is on.
Other
• No Bluetooth connection, white LED flashes slowly.
• Bluetooth is in pairing mode, white and red LED alternate blinking.
• Successful Bluetooth connection, solid white LED.
• White LED blinks quickly when increasing/decreasing the volume. When the minimum/maximum volume is met, LED is solid white.
• LED quickly blinks red when battery is low. Speaker remains on for approximately 10 more minutes.
– LED ON (red/white LED blinking to enter auto pairing mode)
– LED OFF
