Partner RP-300-H Service Manual

Thermal receipt printer
Hide thumbs Also See for RP-300-H:

Advertisement

Quick Links

Download this manual

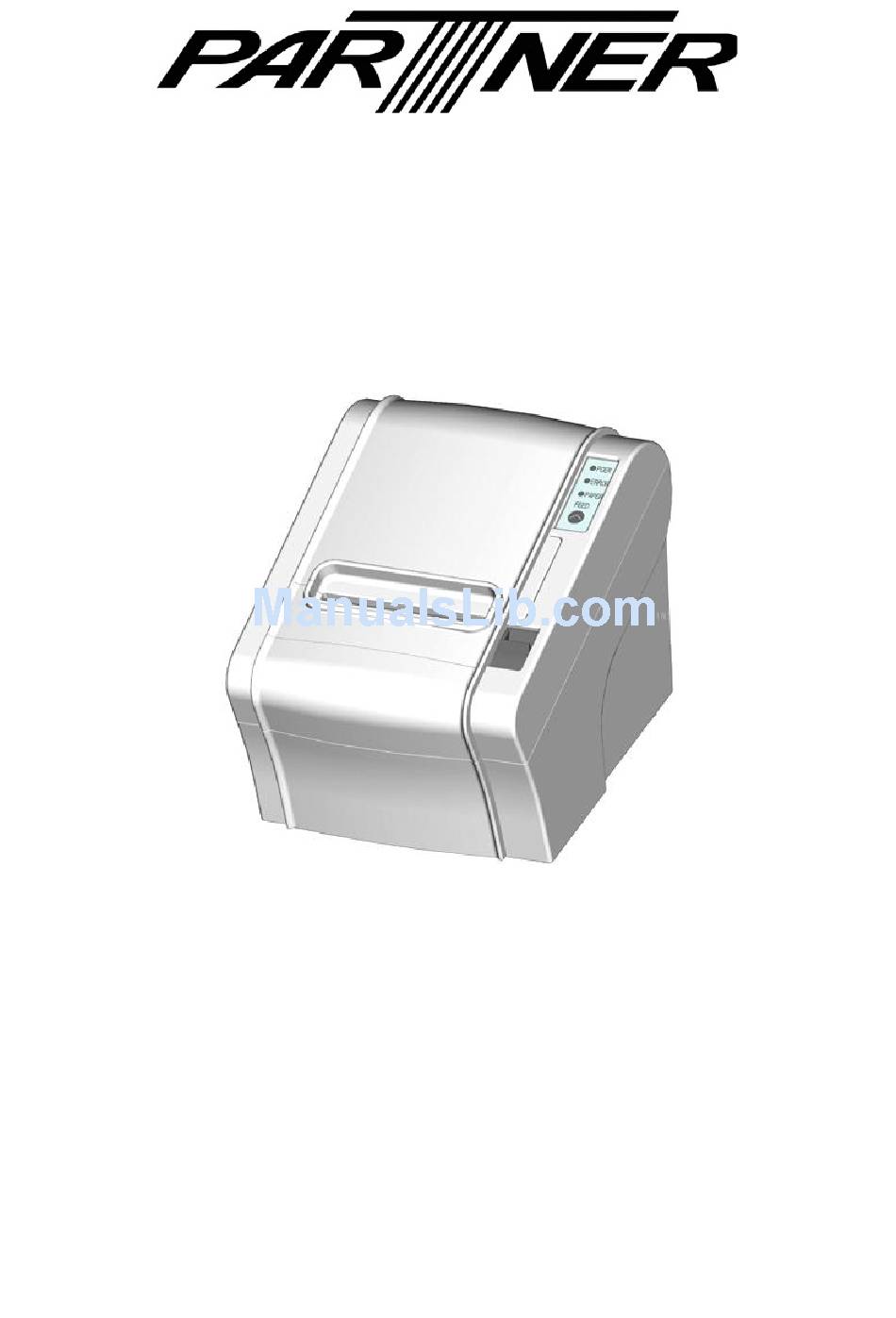

SERVICE MANUAL

RP-300-H
THERMAL RECEIPT PRINTER
Document 070101C
Revision : 01
December 12, 2007

Advertisement

loading

Related Manuals for Partner RP-300-H

Summary of Contents for Partner RP-300-H

  • Page 1: Service Manual

    SERVICE MANUAL RP-300-H THERMAL RECEIPT PRINTER Document 070101C Revision : 01 December 12, 2007...

  • Page 2: Revision History

    RP-300-H SERVICE MANUAL REVISION HISTORY REVISION DATE APPROVAL CHANGE 01 / 01 / 2007 - Initial Release Page2...
  • Page 3 RP-300-H SERVICE MANUAL TABLE OF CONTENTS 1. Disassembly and Assembly ……………………………………………………………….……………….. 4 2. Parts List …………………………………………………………………………………….……………….. 7 3. Circuit Diagram …………………………………………………………………………………..………….. 34 Page3...

  • Page 4: Disassembly And Assembly

    RP-300-H SERVICE MANUAL 1. Disassembly and Assembly 1. Disassemble of Cutter cover (1-1) Disassemble it as indicated way. 2. Disassemble of Upper cover (2-1) Unloose 2pcs of screw (M2.6x5). (2-2) Open Top cover. (2-3) Separate it lifting Upper cover into indicated way.
  • Page 5 RP-300-H SERVICE MANUAL 3. Disassemble of Interface Module (3-1) Unloose 2pcs of screw (M3x6 SZ). (3-2) Separate it pulling the Module into indicated way. 4. . Disassemble of Dip switch cover (4-1) Unloose 2pcs of screw (TTC M3X8 BH) (4-2) Separate it pulling down into indicated way.
  • Page 6 RP-300-H SERVICE MANUAL 6. Disassemble of Main PCB Ass’ y (6-1) Untwist 2pcs of Screw (TTC M3X4) (6-2) Separate all connectors connected with PCB (6-3) Separate PCB pulling it into the way indicated. Page6...

  • Page 7: Parts List

    RP-300-H SERVICE MANUAL 1. Parts List PARTS LIST RP-300-H EXPLODE VIEW Symbol Parts No. Description Q’ty Remarks THM02-00MD-C001 PAPER TRAY THM02-00AS-B011 LEFT BASE FRAME UNIT THM02-00DG-C002 MOTOR THM02-00WH-B003 COVER OPEN SWITCH ASS’Y M2 X 8 SCREW THM01-00MD-C023 IDLE GEAR _4 (180DPI, M=0.8)
  • Page 8 THM02-00CT-C005 COVER OPEN SPRING 4.3/8 0.8 WASHER Ø THM02-00PS-C009 TEAR BAR THM01-00WH-B007 FUNCTION PCB WIRE ASS’Y LABEL UNIT : RP-300-H BSMI,CE THM02-G9LB-C002 UL,WEEE APM00-00LB-C004 LABEL BAR CODE UNIT THM02-00WH-B001 7P POWER CABLE ASS’Y TB M3 X 12 SN BH SCREW THM02-00WH-B008 2P POWER CABLE ASS’Y...
  • Page 9 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H EXPLODE VIEW Symbol Parts No. Description Q’ty Remarks THM02-00PA-A104 INTERFACE MODULE (PARALLEL) INTERFACE MODULE THM01-00AS-A109 (SERIAL NEW) THM01-00AS-A108 INTERFACE MODULE(USB 2.0) THM01-00AS-A107 INTERFACE MODULE (USB&COMBO) INTERFACE MODULE THM01-00AS-A110 (ETHERNET) INTERFACE MODULE THM01-00AS-A112 (WIRELESS) THM02-00PA-B104 PAPER END SENSOR ASS’Y...
  • Page 10 RP-300-H SERVICE MANUAL EXPLODE VIEW Page10...
  • Page 11 RP-300-H SERVICE MANUAL Page11...
  • Page 12 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H PACKING Symbol Parts No. Description Q’ty Remarks THM01-00SA-A201 THERMAL PRINTER UNIT APM00-00PK-C002 PACKING VINYL 60 x 80 ROLL PAPER APM00-00DG-C015 INTERFACE CABLE SERIAL APM00-00DG-C017 INTERFACE CABLE PARALLEL APM00-00DG-C022 INTERFACE CABLE MANUAL APM00-00PW-C031 ADAPTOR SMPS...
  • Page 13 RP-300-H SERVICE MANUAL EXPLODE VIEW Page13...
  • Page 14 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H MAIN PCB Symbol Parts No. Description Q’ty Remarks MAIN PCB ASS’Y LK-T21 THM02-00BP-C002 Ver0.3 TPM92CM27FG IC CPU K4S641632 IC SDRAM SST39VF1601-70-4C-EKE IC FLASH MEMORY TSOP-48 U4,8 SN74LVC04 TSOP IC TTL SN74LVC08 TSOP IC TTL...
  • Page 15 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H MAIN PCB Symbol Parts No. Description Q’ty Remarks IRF5305L/PBF TO262 TR FET POW-MOS P-CH 9.8304MHz HC-49/S CRYSTAL 220uF(PB-F)/0.5A INDUCTOR Molding TYPE D1,2,8 LDS160 SOD-323 DIODE SMALL-SIG D4-7,10 SS16 SMA DIODE SCHOTTKY ZMM5228 SOD-80C DIODE ZENER A12P-5E 303V/12Φ...
  • Page 16 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H MAIN PCB Symbol Parts No. Description Q’ty Remarks 3.3K 1608(J) RESISTOR CHIP R20,22,25-28,37, 4.7K 1608(J) RESISTOR CHIP 42,45,47,50,55, R52,97 5.6K 1608(J) RESISTOR CHIP R3-11,13,14,16,1 7,24,38,46,51,66 10K 1608(J) RESISTOR CHIP ,68-71,77,100 20K 1608(J) RESISTOR CHIP...
  • Page 17 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H MAIN PCB Symbol Parts No. Description Q’ty Remarks BP1-9,21-22, CAPACITOR C3-4,6-7,11,14, 0.1uF 50V 1608(Z) 17-23,26-31, 34-38,40-42 CONNECTOR JP12 TX25-30P-6ST-N1E BOARD TO BOARD JP11 CONNECTOR YMW025-02R WAFER CONNECTOR YMW025-07R WAFER 5483-04AX CONNECTOR WAFER CONNECTOR SW0500-02...
  • Page 18 RP-300-H SERVICE MANUAL Page18...
  • Page 19 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H SERIAL PCB Symbol Parts No. Description Q’ty Remarks THM01-00BP-C109 SERIAL PCB ASS'Y Ver1.0A U1,31 SP232ECN SOP-16 IC RS232 DRV MAX202 1N5819 AXIAL DIODE SCHOTTKY L1-5 HB-1M1608-102J BEAD CHIP RV1-3 VA-A1608-180L VARISTOR CHIP TX24-30R-LT-N1 CONNECTOR...
  • Page 20 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H PARALLEL PCB Symbol Parts No. Description Q’ty Remarks THM01-00BP-C104 Ver2.0A U1-2 74LS374 IC TTL 74LS74 IC TTL U3,5 74LS32 IC TTL 74LS04 IC TTL 1N5819 DIODE SCHOTTKY BC3550 BEAD RC10(F)-36R-LW CONNECTOR D-SUB 22uF/35V CAPACITOR ALU C19-20, BP1-6 0.1uF...
  • Page 21 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H USB PCB Symbol Parts No. Description Q’ty Remarks THM01-00BP-C107 Ver2.0 NET2272REV1A-LF IC USB CONTROLLER OFP64 ATmega162-8AU QFP44 IC CPU SN74LVC573APWR IC TTL TSSOP20 SN74LVC125APWR IC TTL TSSOP14 SN74LVC08APWR IC TTL TSSOP14 ELM89331BB-S SOT-23 IC LDO REGULATOR...
  • Page 22 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H USB PCB Symbol Parts No. Description Q’ty Remarks 1608(J) 1MΩ R2,13 RESISTOR CHIP C5,6,8,9 18pF 50V 1608(M) CAPACITOR CHIP 0.01uF 50V 1608(Z) CAPACITOR CHIP C1,3,4,10,11 0.01uF 50V 1608(Z) CAPACITOR CHIP BP1,3,4,11-18, 21-23 TX24-30R-LT-N1E CONNECTOR...
  • Page 23 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H USB COMBO PCB Symbol Parts No. Description Q’ty Remarks THM01-00BP-C107 Ver2.0 NET2272REV1-A-LF QFP64 IC USB CONTROLLER ATmega162-8AU QFP44 ATMEL SN74LVC573APWR IC TTL TSSOP20 SN74LVC125APWR IC TTL TSSOP14 SN74LVC08APWR IC TTL TSSOP14 SP3232ECY-L-TR TSSOP16 IC TTL...
  • Page 24 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H USB COMBO PCB Symbol Parts No. Description Q’ty Remarks 150Ω 1608(J) RESISTOR CHIP 1KΩ 1608(J) R10,15 RESISTOR CHIP 1.5KΩ 1608(J) RESISTOR CHIP 5.6KΩ 1608(J) R18,19 RESISTOR CHIP 47KΩ 1608(J) RESISTOR CHIP 1MΩ 1608(J) R2,13...
  • Page 25 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H ETHERNET PCB Symbol Parts No. Description Q’ty Remarks THM01-00BP-C110 Ver2.0 AT87C54X2-RLTUL VQFP44 IC MCU SST39SF010-70-4C-WHE IC FLASH MEM 2.0A TSSOP32 K6T1008C2D-PB(F)70 IC SRAM TSSOP AT93C46010SQ-2.7 IC EEPROM SOIC-08 RTL8019AS-LF PQFP IC TTL SN74HC125APW TSSOP...
  • Page 26 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H ETHERNET PCB Symbol Parts No. Description Q’ty Remarks 14K 1608(J) RESISTOR CHIP R2,18 100K 1609(J) RESISTOR CHIP C1,2,17,18,25, 18PF 1608(Z) CAPACITOR CHIP C19-22 68PF 1608(Z) CAPACITOR CHIP C4-11 100PF 1609(Z) CAPACITOR CHIP C12,13,15,16, 0.1UF 1608(Z)
  • Page 27 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H Wi-fi PCB Symbol Parts No. Description Q’ty Remarks THM01-00BP-C112 Ver1.1 CF CARD 802.11B CF Card ATMEGA64L-8AU TQFP64 IC MCU U3,4 SN74LVC125APWR IC TTL TSSOP-14 LM2596S-3.3 TO- IC DC/DC 7.3728MHz 49/S CRYSTAL SHP1055P-F470A SMD INDUCTOR...
  • Page 28 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H Wi-fi PCB Symbol Parts No. Description Q’ty Remarks TX24-30R-LT-N1E CONNECTOR BOARD TO BOARD AC0019-5-01-06-A1-R CONNECTOR Page28...
  • Page 29 RP-300-H SERVICE MANUAL <COMPONENT SIDE> / SERIAL <COMPONENT SIDE> / USB COMBO <COMPONENT SIDE> / PARALLEL <SOLDER SIDE> / PARALLEL Page29...
  • Page 30 RP-300-H SERVICE MANUAL <COMPONENT SIDE> / ETHERNET <COMPONENT SIDE> / Wi-fi Page30...
  • Page 31 RP-300-H SERVICE MANUAL PARTS LIST RP-300-H POWER PCB Symbol Parts No. Description Q’ty Remarks THM02-00BP-C102 Ver2.0 Ac00093-12-3-S-X1 POWER JACK C30,32 0.1uF/50V RADIAL CAPACITOR CERAMIC 1000uFF/35V SD CAPACITOR ALU 623PCB6-B MODULAR JACK Q5-6 BD681STU TO-126 TR POWER D8-9 1N4004 TO-41 DIODE RECTIFIER...
  • Page 32 RP-300-H SERVICE MANUAL Page32...

  • Page 33: Circuit Diagram

    RP-300-H SERVICE MANUAL 3. Circuit Diagram <MAIN 1> Page33...
  • Page 34 RP-300-H SERVICE MANUAL <MAIN 2> Page34...
  • Page 35 RP-300-H SERVICE MANUAL <MAIN 3> Page35...
  • Page 36 RP-300-H SERVICE MANUAL <SERIAL 25PIN> Page36...
  • Page 37 RP-300-H SERVICE MANUAL <PARILLEL CENTRONICS> Page37...
  • Page 38 RP-300-H SERVICE MANUAL <USB 2.0> Page38...
  • Page 39 RP-300-H SERVICE MANUAL <USB COMBO> Page39...
  • Page 40 RP-300-H SERVICE MANUAL <ETHERNET> Page40...
  • Page 41 RP-300-H SERVICE MANUAL <Wi-fi> Page41...
  • Page 42 RP-300-H SERVICE MANUAL <POWER> Page42...
