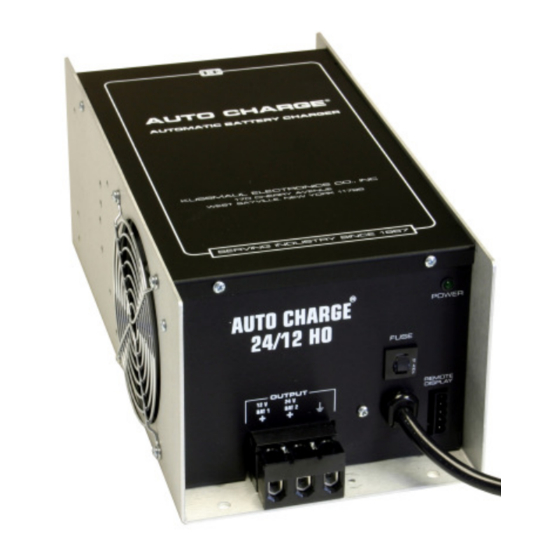

AUTO CHARGE 24/12 HO
AUTOMATIC BATTERY CHARGER
170 Cherry Ave.
West Sayville, NY 11796
www.kussmaul.com
INSTRUCTION MANUAL
MODEL #091-175
INPUT: 115 Volt, 60 hz, 7 amps
OUTPUT: 12 Volt, 25 amps
24 Volt, 6 amps
battery system.
3 YEAR WARRANTY
FILE: IM_091-175.pmd
REV D pg 3
REVISED BY: PSS
DATE: 7-02-2015
Phone: 631-567-0314
Fax: 631-567-5826
sales@kussmaul.com
Advertisement
Related Manuals for KUSSMAUL 091-175
Summary of Contents for KUSSMAUL 091-175

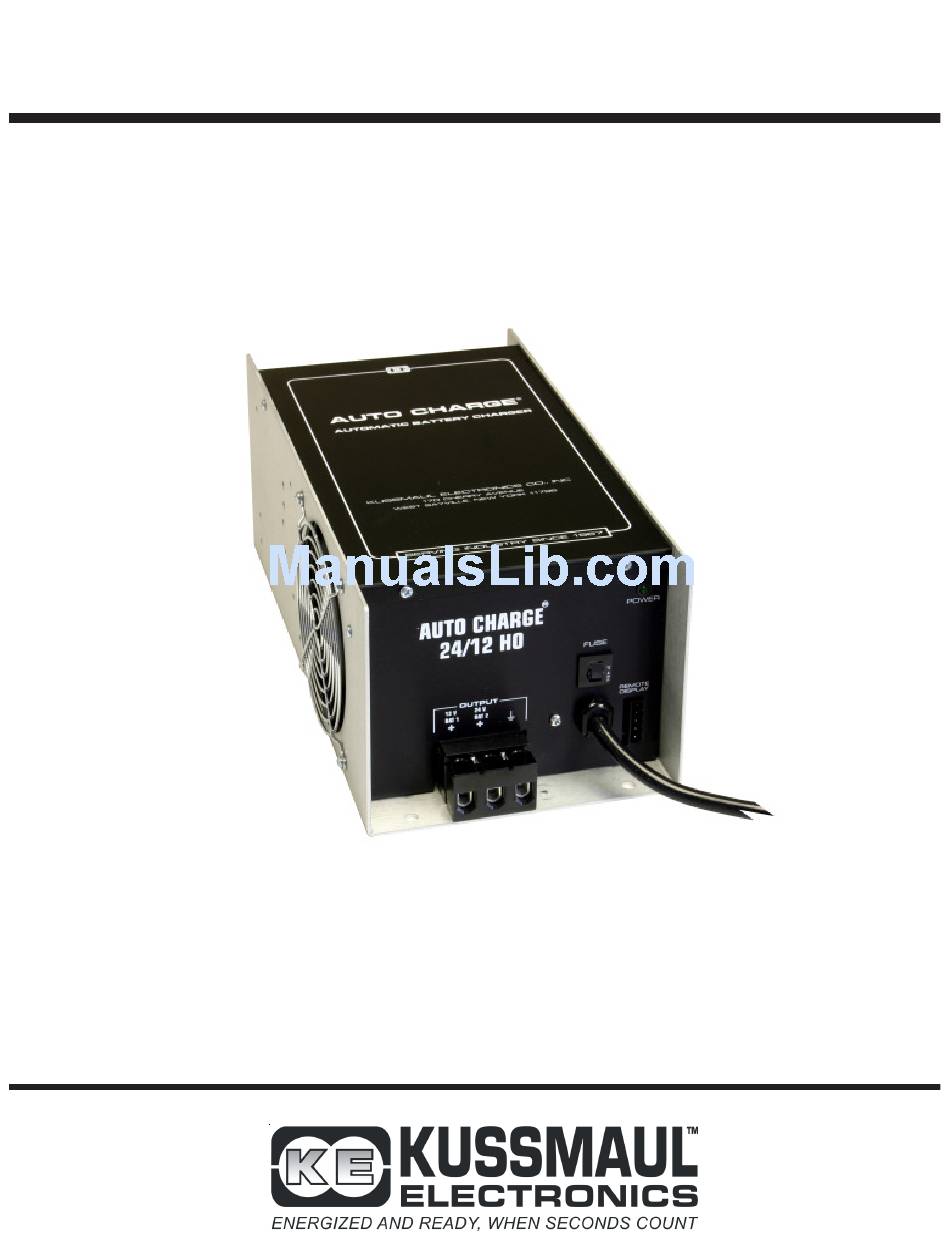

- Page 1 REV D pg 3 REVISED BY: PSS DATE: 7-02-2015 INSTRUCTION MANUAL AUTO CHARGE 24/12 HO AUTOMATIC BATTERY CHARGER MODEL #091-175 INPUT: 115 Volt, 60 hz, 7 amps OUTPUT: 12 Volt, 25 amps 24 Volt, 6 amps battery system. 3 YEAR WARRANTY Phone: 631-567-0314 170 Cherry Ave.
-
Page 2: Installation
INSTALLATION The Auto Charge 24/12 HO, Model 091-175 Automatic Battery Charger should be installed in an area with adequate ventilation. A power cord is supplied for connection to shore line. 1. Mount the charger using the four holes located in the front and rear of the charger. -
Page 3: Installation Wiring Diagram
INSTALLATION WIRING DIAGRAM Optional Bar-graph Indicator 091-11-127-XX AUTO CHARGE POWER 24/12 HO FUSE REMOTE OUTPUT DISPLAY 12 V 24 V BAT 1 BAT 2 12 AWG 16 AWG Fuse Fuse Chassis Ground Chassis Ground Chassis Ground 24V Battery Bank 115VAC 12V Battery Shore line Bank... - Page 4 OUTLINE SPECIFICATIONS: Input: 115 volt, 60hz, 7 amperes Input breaker: 12 amp fuse breaker Output: 12 V supplies 25 amperes max 24 V supplies 6 amperes max Weight: 23 lbs Outline Dimensions, Model 091-175, Auto Charge 24/12 HO...
-
Page 5: Warranty
Vehicle Identification Vehicle Owner WARRANTY All product of Kussmaul Electronics Company Inc. are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 3 years from the date the equipment was shipped.
